IDEAL Clamp Meters with TightSight®

Built To Professional Quality Standards to Withstand Commercial and Industrial Applications

ID-61-765
Qty:

What's special about these clamp meters?

  • Measures current, voltage, resistance, capacitance, continuity and frequency - one tool for many jobs.
  • Exclusive TightSight® bottom viewer allows readings from hard to reach places.
  • Includes leads, alligator clips and case - everything that you need to start measuring right out of the box.
  • Click for More Features
    •
  • CEUL Classified

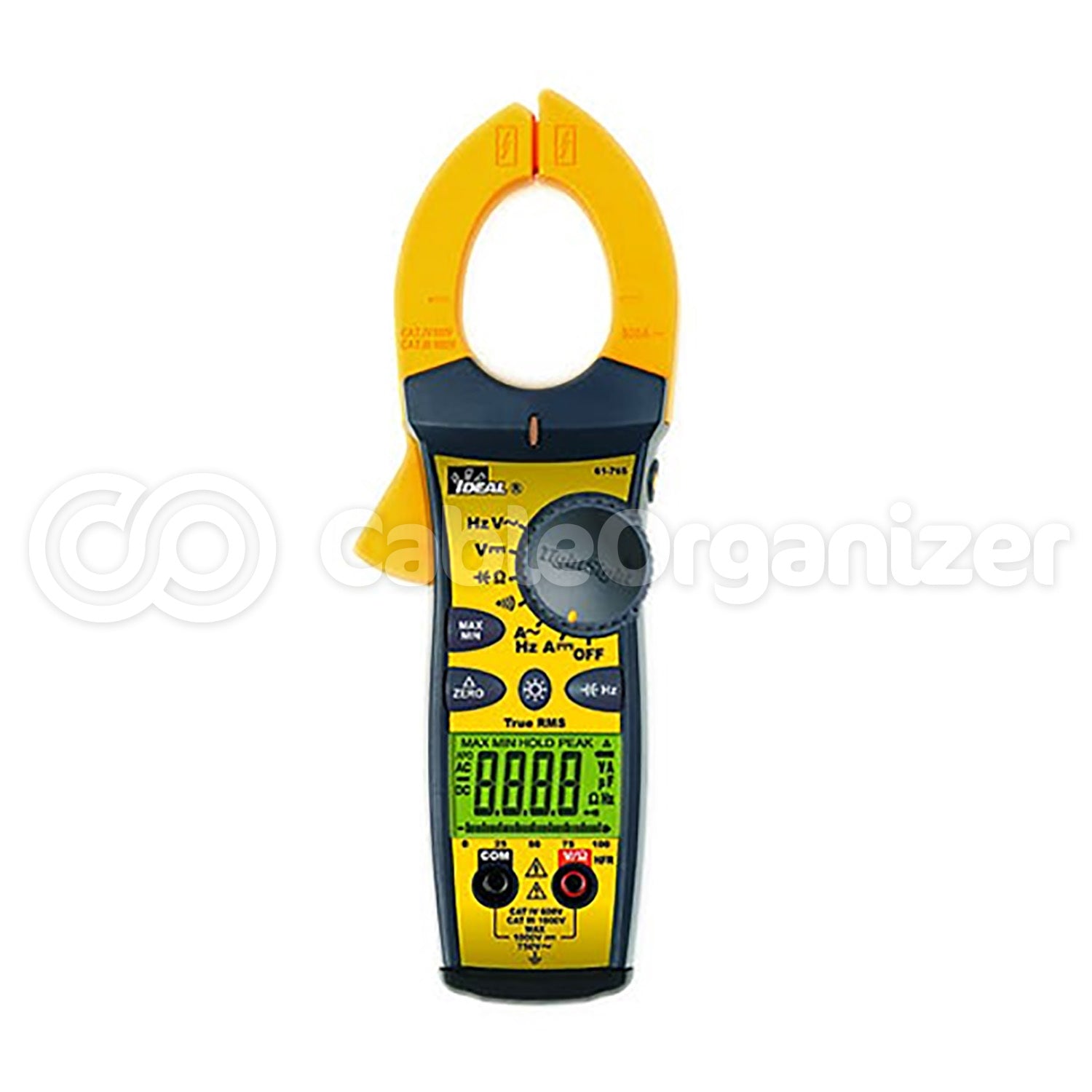

The TightSight® clamp meter by Ideal Industries combines speed, accuracy, and safety in one rugged, easy to use meter. Featuring a unique bottom display, ergonomic design and large, easy to read numbers and symbols, it is the only meter you will need.

Part # IMG Description Dimensions Weight Price
ID-61-765 660A AC/DC w/TRMS, Capacitance, Frequency 1.8" D x 3.1" W x 8.7" L 12.3 oz
Qty:
Manufacturer Direct
ID-61-775 1000A AC/DC w/TRMS, Capacitance, Frequency 1.9" D x 4.1" W x 10.6" L 1.1 lbs
Qty:
Manufacturer Direct
  • Bright backlit display with large numbers and symbols lets you accurately view your readings.
  • Ergonomic design allows gloved hands to use knobs and buttons efficiently.
  • Immune to electrically noisy environments and EMI, for a true and proper reading.
  • Rugged case and dial can withstand accidental falls or drops.
  • Great for ASD (adjustable speed drives) measurements on motors and generators.
  • High Frequency Rejection*
  • Low Battery Indicator**
  • CAT IV – 600V Rating, CAT III – 1000V Rating for maximum safety
  • UL61010-1, IEC 6110-2-032, EN61010-1, CAN/CSA C22.2 no.1010.1-92 and CAN/CSA C22.2 no. 1010.2.032-96 Cat IV-600V/CatIII-100V
  • 2 year manufacturer warranty

    •

    * High Frequency Rejection (HFR) and EMI shielding features provide accurate voltage/frequency readings on non-sinusoidal waveforms, such as adjustable speed drives.
    ** Low Battery Indicator - The low battery symbol will appear and indicate approximately one hour of operation remaining before the unit displays ?batt? and shuts off to prevent inaccurate readings.

    TECHNICAL MANUALS -

  • 61-763 & 61-765 Clamp Meter Technical Manual (PDF) PDF
  • 61-773 & 61-775 Clamp Meter Technical Manual (PDF) PDF

    •

    Specifications RANGES ACCURACY
    Part # 61-763 61-765 61-773 61-775 61-763 / 71-773 61-765 / 61-775
    AC Voltage
    (True RMS)
    (45-400Hz) 61-763
    (True RMS)
    (20-400Hz) 61-765    		 0.0V ~ 600.0V, 45Hz - 100Hz 0.0V ~ 100.0V, 20Hz - 100Hz 0.0V ~ 600.0V, 45Hz - 100Hz 0.0V ~ 100.0V, 20Hz - 100Hz 1.0% + 5 digits 1.0% + 5 digits
    600.0V ~ 750.0V, 45Hz - 100Hz 100.0V ~ 600.0V, 45Hz - 100Hz 600.0V ~ 750.0V, 45Hz - 100Hz 100.0V ~ 600.0V, 45Hz - 100Hz 1.5% + 5 digits 1.0% + 5 digits
    0.0V ~ 750.0V, 100Hz - 400Hz 600.0V ~ 750.0V, 45Hz - 100Hz
    		 0.0V ~ 750.0V, 100Hz - 400Hz 600.0V ~ 750.0V, 45Hz - 100Hz
    		 6.0% + 5 digits 1.5% + 5 digits
    - 0.0V ~ 750.0V, 100Hz - 400Hz - 0.0V ~ 750.0V, 100Hz - 400Hz - 6.0% + 5 digits
    DC Voltage 0.0V ~ 600.0V 0.0V ~ 600.0V 0.0V ~ 600.0V 0.0V ~ 600.0V 1.0% + 5 digits 1.0% + 5 digits
    600.0V ~ 999.9V 600.0V ~ 999.9V 600.0V ~ 999.9V 600.0V ~ 999.9V 1.5% + 5 digits 1.5% + 5 digits
    AC Current
    (True RMS)
    (45-400Hz)    		 0.0A ~ 660.0A, 45Hz -60Hz 0.0A ~ 660.0A, 20Hz - 100Hz 0.0A ~ 999.9A, 45Hz - 60Hz 0.0A ~ 999.9A, 20Hz - 100Hz 2.0% + 5 digits 2.0% + 5 digits
    0.0A ~ 660.0A, 60Hz - 400Hz 0.0A ~ 660.0A, 100Hz - 400Hz 0.0A ~ 999.9A, 60Hz - 400Hz 0.0A ~ 999.9A, 100Hz - 400Hz 6.0% + 5 digits 6.0% + 5 digits
    DC Current - 0 ~ 660.0A - 0 ~ 999.9A - 2.0% + 5 digits
    Capacitance 0.0μF ~ 999.9uF 5.0% + 10 digits
    Frequency 20.0Hz ~ 400.0Hz (Auto-ranging) 0.5% + 5 digits
    Resistance 0.0-9999Ω 1.5% + 5 digits
    Continuity <30Ω on Continuity -


    General Specifications
      61-763 / 61-765 / 61-773 / 61-775
    Display 4 Digit LCD display
    Display Count 9999 count, maximum reading 9999
    Over range Indication “OL” is displayed
    Display Up-Date Rate 2.0 time/second
    Operating
    Relative Humidity    		 0°C to 50°C (32°F to 122°F)
    0 ~ 70% RH
    Storage Environment -20°C to 60°C (-4°F to 140°F) at <80% relative humidity
    Power source 9V Battery (NEDA 1604)
    Battery Life 100 hours typical (alkaline) {61-763}
    100 hours typical (alkaline) {61-765}
    Low Battery Indicator battery image symbol indicates low battery voltage
    Auto Power Off Approximately 30 minutes

    Part # ID-61-765 ID-61-775
    Dimensions 8.7” H X 3.1 ” W X 1.8 ” D
    222mm H X 80mm W X 45.5mm D    		 10.6” H X 4.1 ” W X 1.9 ” D
    270mm H X 103mm W X 48.5mm D
    Jaw Size 1.42" (36mm) 2" (51mm)
    Maximum Cable Size ACA 1-1/4" (36mm) ACA 2.0” (51mm)
    Weight: Approximately 12.4 oz. or 350g including battery Approximately 1.1 lbs. or 500g including battery
