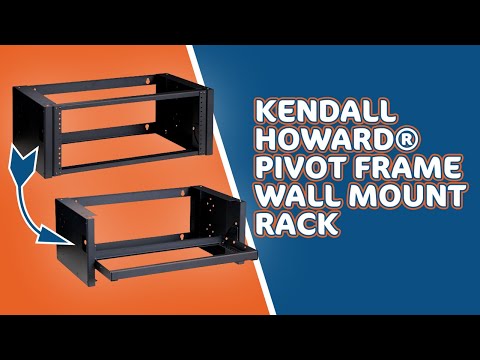

Kendall Howard® Pivot Frame Wall Mount Rack
An Affordable Space Saving Solution for Small Applications
What's special about this open wall rack?

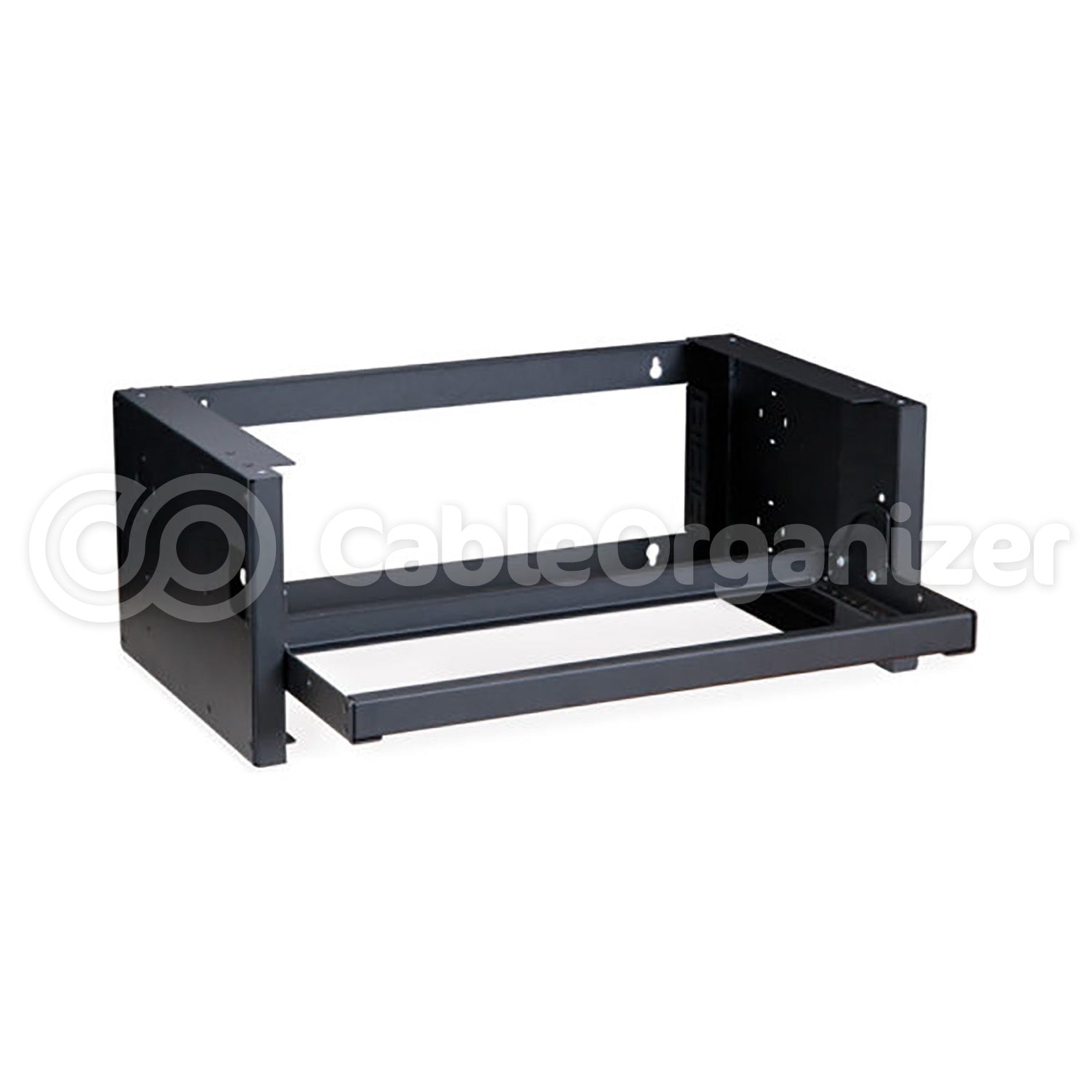

- Pivots downward 90° to provide full access to the rear of the equipment for easier maintenance (up to 8U, 75 lbs).
- Securely add 1U of mounting space to the shelf with the available stationary rackmount bracket; great for patch panels, switches, routers and other light pieces of 1U equipment.
- Optional top shelf provides extra storage for non-rack mountable equipment or accessories.
- Rear lacing panels allow easy cable management using hook and loop cable wraps.
- Laser knockouts on both sides for ample cable entry and exit.
The Pivot Frame Wall Rack by Kendall Howard® is perfect for applications in which only a few small components need to be installed with open access. These 4U & 8U open wall racks are only 12" deep, taking up a small footprint while providing ample space for mounting patch panels, routers, switches, and other small rack devices. They also feature a 90° pivoting arm that gives direct access to the rear of your equipment. You provide the mounting hardware (depends on the material of your wall) but 10-32 rack screws are included to get your equipment installed immediately.
Part # | IMG | Type | Width | Height | Depth | Weight | Price |
---|---|---|---|---|---|---|---|
KH-1915-3-400-04 | 4U Pivot Frame Wall Mount Rack | 21.90" W | 8.41" H | 12.25" Deep | 12 lbs | Manufacturer Direct
|
|
KH-1915-3-400-08 | 8U Pivot Frame Wall Mount Rack | 21.90" W | 15.41" H | 12.25" Deep | 17.5 lbs | Manufacturer Direct
|
Pivot Frame Wall Mount Rack Technical Drawing (PDF)
1915-3-400-04 | |
---|---|
Rack Space | 4U |
Weight Capacity | 75 lbs |
Usable Depth | 12" |
Dimensions | 21.90" W x 8.41" H x 12.25" Deep |
Shipping Dimensions | 26.5x15.75x12 |
UPC | 879447005448 |
1915-3-400-08 | |
Rack Space | 8U |
Weight Capacity | 75 lbs |
Usable Depth | 12" |
Dimensions | 21.90" W x 15.41" H x 12.25" Deep |
Shipping Dimensions | 26.5x15.75x12 |
UPC | 879447005448 |
1915-3-401-00 | |
Usable Depth | 12" |
Dimensions | 21.67" W x .32" H x 12.25" Deep |
Shipping Dimensions | 23.50x14x3 |
Weight | 5.00 lbs |
UPC | 879447005448 |
1915-3-402-00 | |
Rack Space | 1U |
Usable Depth | 12" |
Dimensions | 2.04" W x 2.62" H x 14" Deep |
Shipping Dimensions | 15.50x6.5x4 |
Weight | 4.00 lbs |
UPC | 879447005479 |
Global (applies to all items) | |
Country of Origin | USA |
Finish | Black Powder Coat |
Material | Steel |
Warranty | Limited Lifetime Warranty |
