Video Mount Products Flat Panel Display Wall Mount
A Highly Adjustable, Configurable Display Mount for Many Applications
What's special about this TV and monitor mount?
- Allows you to mount your LCD, LED, or plasma monitor or TV on a wall.
- Tilts, rotates, and extends over a wide range to achieve the perfect viewing angle.
- Comes with 2 arms; may be used as a single arm, double arm, or flush mount depending on your articulation needs.
- Uses VESA hole patterns for compatibility with most modern displays; adapters are available to accommodate less common hole pattern.
- Click for More Features

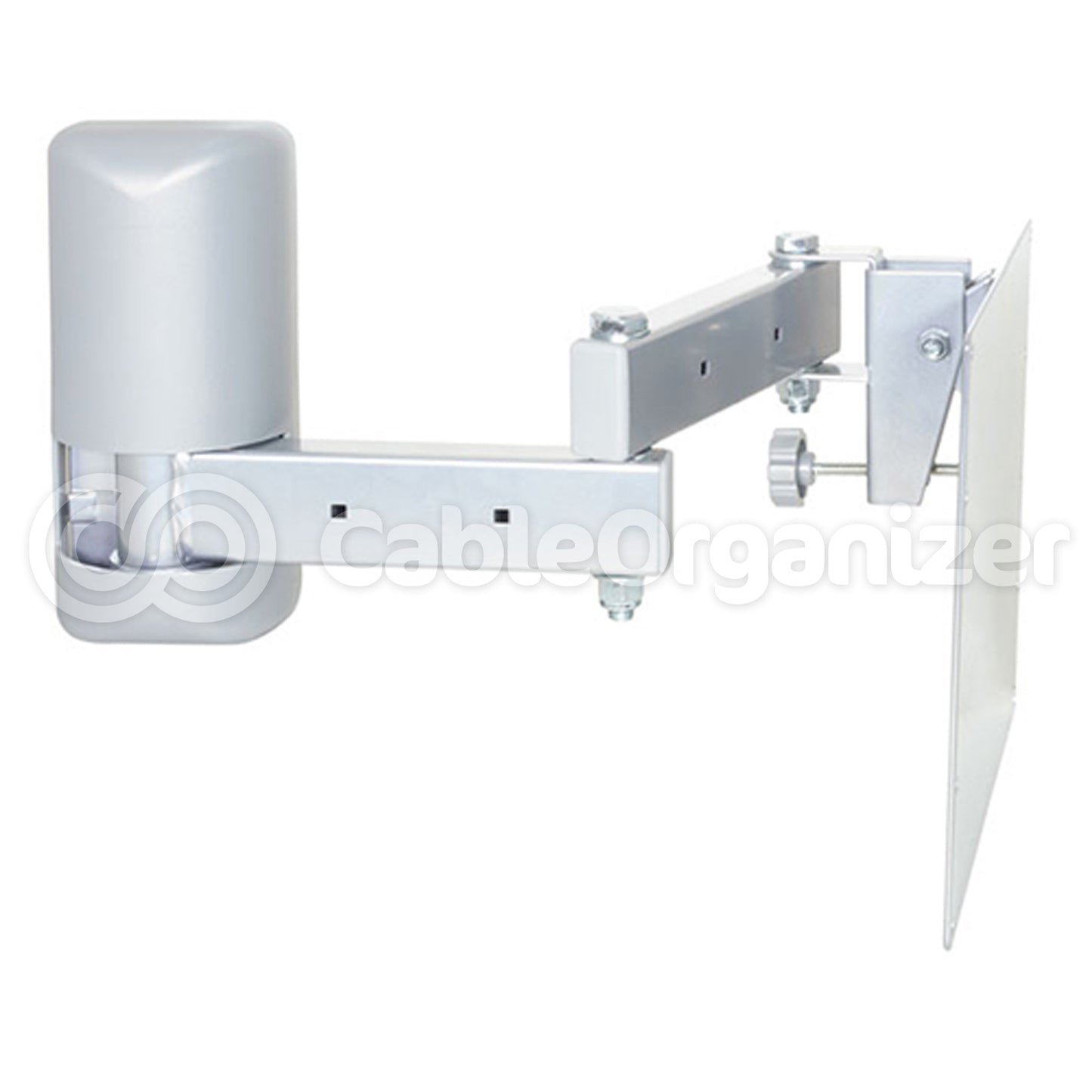

This Flat Panel Wall Mount from Video Mount Products allows full control of your home or office display. This mount gives you the option of stub arm, single arm, or double arm assembly. When fully assembled, it articulates at 3 points, tilts a generous -5° to +20°, and can be collapsed into the optional in-wall box adapter for a clean, professional flush look.
Note: VMP Products cannot be returned if removed from Original Package unless Defective.
Please be sure to review your packaged item before opening to make sure you received the correct product
| Part # | IMG | Description | Dimensions | Color | Price |
|---|---|---|---|---|---|
| VMP-LCD-2537 |  |
VMP Flat Panel Display Mount 2537: Mounts any VESA flat panel display between 25" and 37" | 8.4" x 11.1" x 13.95" (21.33 x 28.19 x 35.43 cm) |
Black Powder Coat or Silver Powder Coat |
Manufacturer Direct
|
| ACCESSORIES | ||||||
|---|---|---|---|---|---|---|
| Part # | IMG | Description | Dimensions | Color | Price | |
| VMP-LCD-PA |  |
Pole Adapter: Allows you to mount the LCD-2537 onto a square or round pole. Straps are made of stainless steel and adjust from 4" to 10" | 4.1" x 8" x 1.15" (10.41 x 20.32 x 2.92 cm) |
Silver Powder Coat | Manufacturer Direct
|
|
| VMP-AP-1 |  |
400mm x 200mm VESA adaptor plate for any VESA 200mm mount | 16.3" x 8.4" x 0.1" (41.40 x 21.33 x 0.25 cm) |
Silver Powder Coat | Manufacturer Direct
|
|
| VMP-AP-2B |  |
300mm x 300mm VESA adaptor plate for any VESA 200mm mount | 12.4" x 12.4" x 0.1" (31.49 x 31.49 x 0.25 cm) |
Black Powder Coat | Manufacturer Direct
|
|
| VMP-IWB-1 |  |
LCD Mount In-Wall Box Adaptor | 14.2" x 12" x 3.92" (36.06 x 30.48 x 9.95 cm) |
Black Powder Coat or Silver Powder Coat |
Manufacturer Direct
|
|
| Property | Value |
|---|---|
| Display Size Range | 25" to 32" |
| VESA Hole Pattern | Standard: 75, 100, 200 and 100 x 200 mm With AP-1 Adapter Plate: 400mm x 200mm With AP-2B Adapter Plate: 300mm x 300mm |
| Articulation | -5° to +20° tilt 240° at the flat panel 240° at the elbow joint (double arm) 160° at the wall |
| Load Capacity | 50 lbs (22.67 kg) |
| Finish | Powder Coat Black or Powder Coat Black |
| Dimensions (Double Arm, Extended) |
8.4" x 11.1" x 13.95" (21.33 x 28.19 x 35.43 cm) |
| Weight | 5.1 lbs (2.31 kg) |
