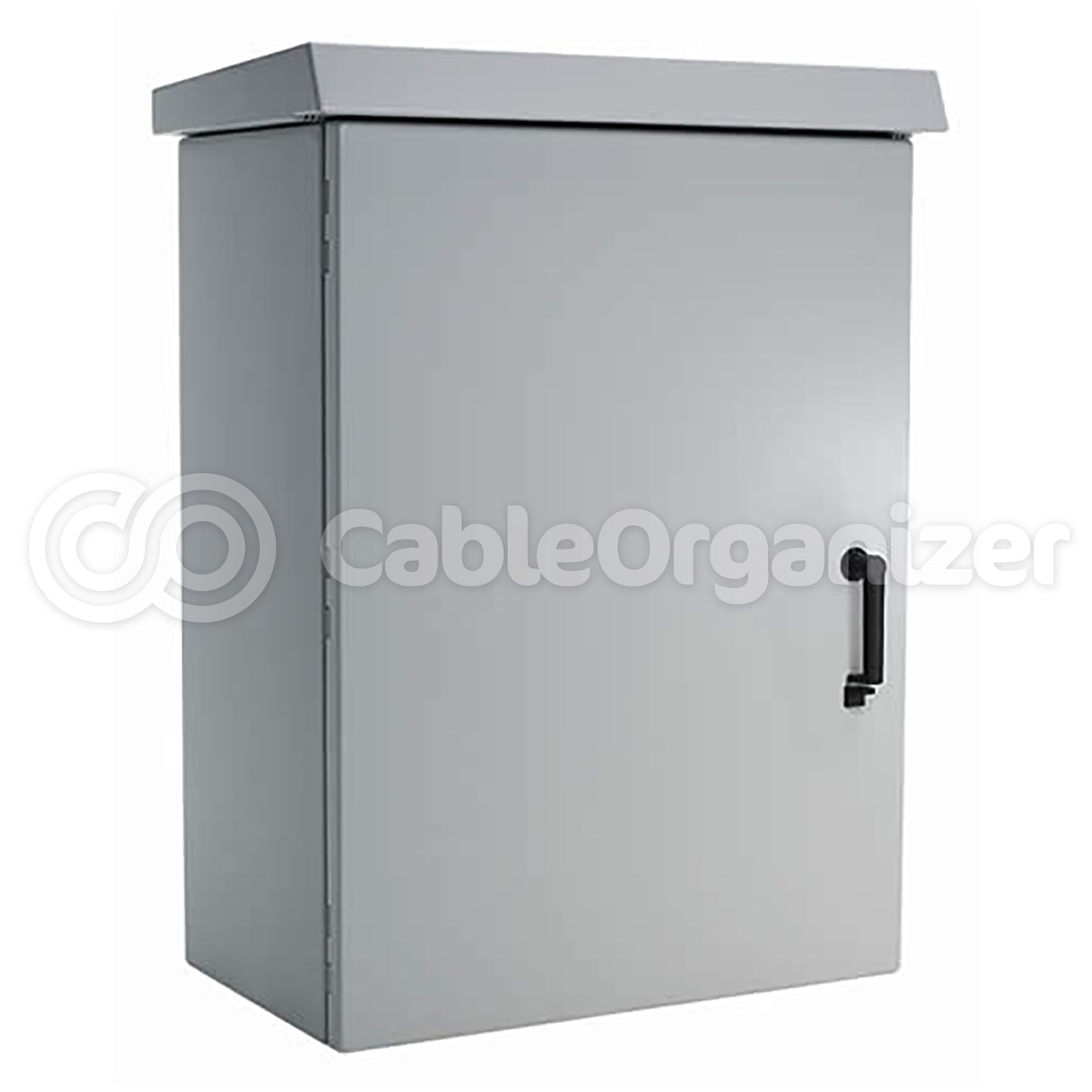

What's special about COMLINE® Wall Cabinets?
- The top-mounted Solar shield is designed to help keep the interior cabinet cool, and directs water away from the cabinet opening.
- Foam surrounds cabinet openings, providing an environmental seal to prevent any liquid or particle intrusion from the outside.
- Finish is RAL7035 light gray textured low gloss urethane powder coating over an iron phosphate treated surface.
- Click for More Features
-
Hoffman is known as a leading provider of outside plant enclosures. Their enclosures, which are the best-sealing aluminum cabinets in the industry, are designed to protect your electronic components against the elements year after year. Hoffman’s COMLINE® OSP cabinets are USA-made in an ISO 9000-certified facility, from lightweight and corrosion-resistant aluminum. These cabinets allow you to rack mount telecom equipment for DSL and fiber distribution applications, and conform to NEMA standards 3, 3R, 4, 4X, and 12. More
| 18U x 19"W Wall Mount Cabinet | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | RU | Dimensions | Grand Plate Cutout |
Load Capacity | Weight | Price |
| HF-ECL906050P | Wall Mount Cabinet Package View Contents |
18U | 33.43" H x 23.62" W 19.68"D (900mm x 600mm x 500mm) |
30.47"H x 12.47"W | 125 lbs | 40 lbs | Manufacturer Direct
|
| 18U x 19"W Wall Mount Cabinet OPTIONAL ACCESSORIES view accessories drawing | |||
|---|---|---|---|
| Part # | Description | Dimensions | Price |
| HF-ERA199S | Rack Angle (cabinet package includes one pair) |
18U x 19" Rack width | Manufacturer Direct
|
| 18U x 23"W Wall Mount Cabinet | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | RU | Dimensions | Grand Plate Cutout |
Load Capacity | Weight | Price |
| HF-ECL907060P | Wall Mount Cabinet Package View Contents |
18U | 33.43" H x 27.56" W 23.62 "D (900mm x 700mm x 600mm) |
30.47"H x 12.47"W | 125 lbs | 45 lbs | Manufacturer Direct
|
| 18U x 23"W Wall Mount Cabinet OPTIONAL ACCESSORIES view accessories drawing | |||
|---|---|---|---|
| Part # | Description | Dimensions | Price |
| HF-ERA19239S | Rack Angle (cabinet package includes one pair) |
18U x 19" or 23" Rack width | Manufacturer Direct
|
| HF-E90P70W | Wood Panel | 824mm H x 624mm W | Manufacturer Direct
|
| 25U x 23"W Wall Mount Cabinet | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | RU | Dimensions | Grand Plate Cutout |
Load Capacity | Weight | Price |
| HF-ECL1207060P | Wall Mount Cabinet Package View Contents |
25U | 47.24" H x 27.56" W 23.62 "D (1200mm x 700mm x 600mm) |
30.47"H x 12.47"W | 175 lbs | 50 lbs | Manufacturer Direct
|
Can be padlocked for added security. Kit includes handle and mounting hardware. Maintains UL Type 4 and NEMA Type 4X ratings. When field installed leave lower padlock bracket in place. Can be factory installed to eliminate padlock bracket; consult your local Hoffman Sales Office. View Drawing
| Handle Options | ||
|---|---|---|
| Part # | Description | Price |
| HF-DL36 | Locking wing nut with 2 keys-silver finish | Manufacturer Direct
|
Mounting bracket kits include four brackets and associated mounting hardware. Sealing washers provided with each kit maintain Type 4, 4X, or 12 rating after installation. View Drawing
| Mounting Bracket Kits | ||
|---|---|---|
| Part # | Description | Price |
| HF-CMFKSS | Mounting bracket kit type 304 steel (4) | Manufacturer Direct
|
| HF-CMTGFT | Mounting bracket kit type Composite (4) | Manufacturer Direct
|
Made of 12 gauge, self-grounding plated steel. They are grounded to the cabinet through the mounting bolts. The square mounting holes meet the EIA standard. (Each COMLINE cabinet package already includes one pair). View Drawing
| Rack Angles | |||
|---|---|---|---|
| Part # | Description | Dimensions | Price |
| HF-ERA199S | Rack Angle | 18U x 19" Rack width | Manufacturer Direct
|
| HF-ERA19239S | Rack Angle | 18U x 19" or 23" Rack width | Manufacturer Direct
|
Wood panels are made to be installed on the panel-mounting studs in the rear of the cabinet. Made of 3/4 inch plywood and predrilled for a perfect fit. View Drawing
| Wood Panel | |||
|---|---|---|---|
| Part # | Description | Dimensions | Price |
| HF-E90P70W | Wood Panel | 824mm H x 624mm W | Manufacturer Direct
|
This Hoffman enclosure meets all industry standards for outdoor cabinets, and comes as a complete package, ready to use. CableOrganizer.com works with Hoffman’s engineers to assist with your special requirements; customized outside plant cabinets can be designed to meet your need.
Designed to Industry Standards:
All COMLINE OSP Wall-Mount Ready-to-Use Packages include:
