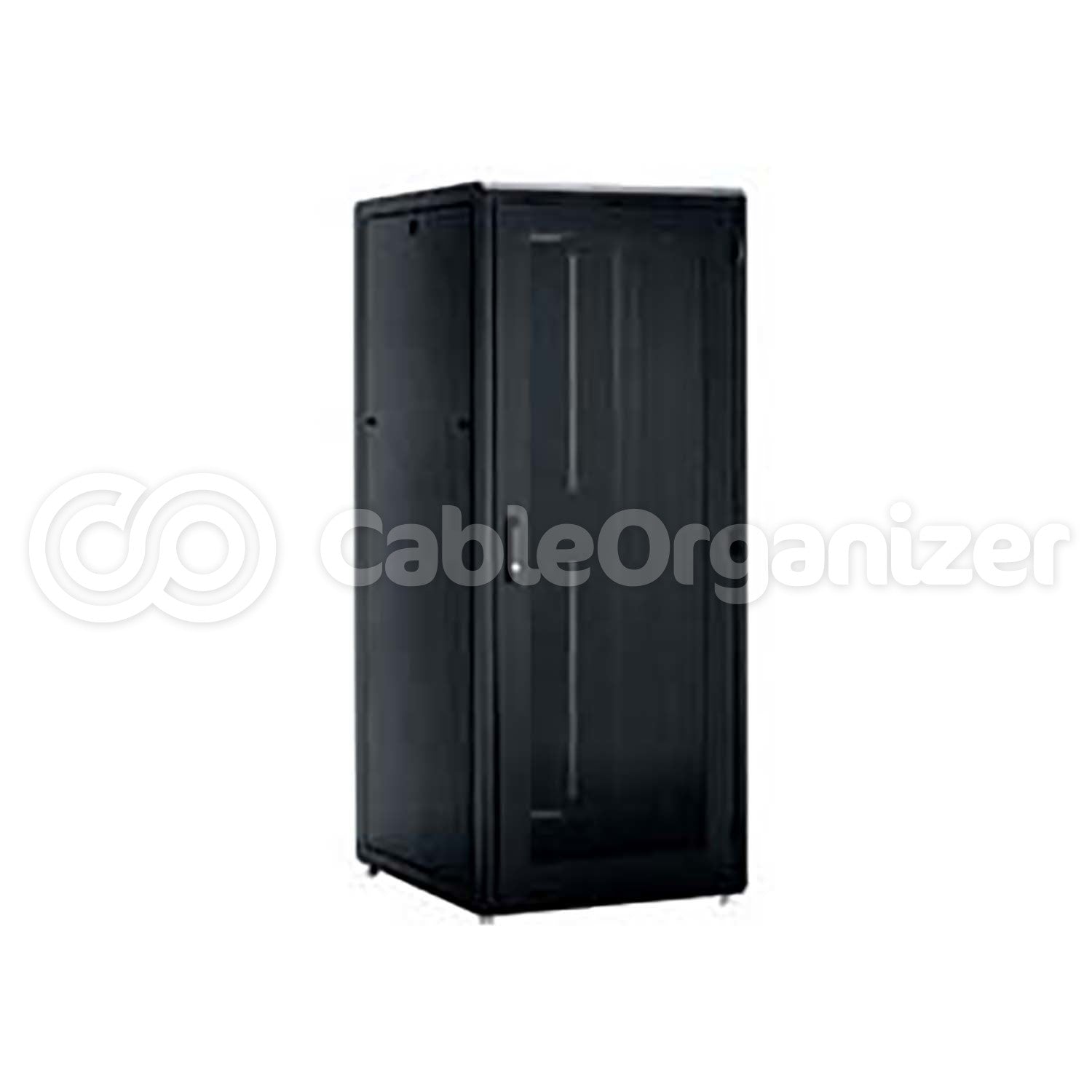

Great Lakes E Series Enclosure - 720E-2936, 72" H x 29" W x 36" D

Locking Front and Rear Doors Keep Equipment Safe and Secure


Complete Enclosures
QGL-FE-720E-2936F
Qty:


Custom Enclosure
QGL-FE-7201E-2936
Qty:

What's special about these rack mount enclosures?

  • Base unit with two (2) pair of powder coated 19" universal (M6) rails and M6 hardware.
    Note: For 23" mounting, also order part #E23K-36 (conversion kit)
  • Adjustable Levelers (2.50" in height) - set of 4
  • Top Panel
  • Click for More Features
  •
  • UL

Complete Enclosure

Part # Description Size Color Price
QGL-FE-720E-2936F Complete Enclosure with Three Fan Top Panel (TPE-29F) 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-FE-720E-2936F10 Complete Enclosure with Large Fan Top Panel (TPE-29F10) 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-FE-720E-2936S Complete Enclosure with Solid Top Panel (TPE-29S) 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-FE-720E-2936P Complete Enclosure with Vented Top Panel (TPE-29P) 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-FE-720E-2936MP Complete Enclosure with Mesh Front and Rear Door & Vented Top - Server Configuration 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
QGL-FE-720E-2936MCP Complete Enclosure with Mesh Front & Mesh Contour Rear Door & Vented Top - Server Configuration 72"H x 29"W x 36"D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
The above enclosures include the below components
Part # Description Size Color Included
QGL-7202E-29 Plexiglas Door with locking swing handle for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue Included
QGL-7204E-29 Perimeter Vented Steel Rear Door with locking swing handle for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue Included
QGL-7210-36ELS Pair of Solid Lift-off Side Panels w/lock and finger release latches for 72"H x 32"D Base Unit Advantage White, Black, Nitro Blue Included
QGL-7215 16 Outlet Power Strip with circuit breaker and 15 ft. cord 49" Length Gray Included
QGL-FE-7201E-2936 Base Unit with two (2) pair of powder coated 19" universal (M6) rails and M6 hardware 72”H x 29"W x 36”D Advantage White, Black, Nitro Blue Included

Custom Enclosure

Part # Description Size Color Price
QGL-FE-7201E-2936 Base unit with two (2) pairs of powder coated 19" universal (M6) rails and M6 hardware 72”H x 29"W x 36”D Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
DOORS
Part # Description Size Color Price
QGL-7202E-29 Plexiglas door with locking swing handle for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-7202E-29PV Perimeter vented plexiglas door for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-7202E-M29 Mesh steel door for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-7203E-29 Solid door for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-7204E-29 Perimeter vented steel rear door with locking swing handle for 72"H x 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
SIDE PANELS
Part # Description Size Color Price
QGL-7210-36ELS Pair of solid lift-off side panels w/lock and finger release latches for 72"H x 36"D Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-7211-36ELL Pair locking lift-off louvered side panels for 72"H x 36 "D Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
REMOVABLE TOP & BOTTOM PANELS
Part # Description Size Color Price
QGL-TPE-29F Top panel & fan assembly w/two 4" horseshoe knock-outs for 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-TPE-29F10 Top panel & fan assembly w/550 CFM 10" fan & 6 ft. cord for 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-TPE-29P Vented top panel w/two 4" horseshoe knock-outs for 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-TPE-29S Solid top panel w/two 4.00" horseshoe knock-outs for 29"W Base Unit Advantage White, Black, Nitro Blue
Qty:
Manufacturer Direct
QGL-BPF29 Bottom Panel, Filtered, for 29"W enclosure 13"W x 16"D w/rear solid panel Black
Qty:
Manufacturer Direct
QGL-BPS29 Bottom Panel, Solid, for 29"W enclosure 13"W x 16"D w/rear solid panel Black
Qty:
Manufacturer Direct
QGL-BPB29 Brush Grommet w/rear solid panel for 29"W enclosure -
Qty:
Manufacturer Direct
CABLE MANAGEMENT
Part # Description Size Color Price
QGL-VCB-7236 Vertical lacing bar kit (includes 1 vertical lacing bar, 2 horizontal lacing bars and 6 CM-01 cinch straps) 72" H x 36" D enclosure -
Qty:
Manufacturer Direct
QGL-HCB-36 Horizontal lacing bar - 36" deep 36" D enclosure Black
Qty:
QGL-VCB-72 Extra vertical lacing bar - to be used with lacing bar kit (includes 6 CM-01 cinch straps) 72" H enclosure -
Qty:
Manufacturer Direct
STATIONARY SHELVES FOR 19" MOUNTING
Part # Description Size Color Price
QGL-7206-FR-AHD Front & rear mount, adjustable 17.50"W, 22.25"D, 200 lbs. weight capacity Black
Qty:
Manufacturer Direct
QGL-7206-FR-ADHD Front & rear mount, adjustable 17.50"W, 27.25"D, 150 lbs. weight capacity Black
Qty:
Manufacturer Direct
QGL-7206-FR-A32HD Front & rear mount, adjustable 17.50"W, 32" D, 300 lb. weight capacity Black
Qty:
Manufacturer Direct
SLIDING SHELVES FOR 19" MOUNTING
Part # Description Size Color Price
QGL-7206-FRSL-AHD Front & rear mount sliding, adjustable, 110 lbs. weight capacity 17.50"W, 22"D Black
Qty:
Quick Ship
QGL-7206-FRSL-ADHD Front & rear mount sliding, adjustable, 110 lbs. weight capacity 17.50"W, 26"D Black
Qty:
Manufacturer Direct
POWER OUTLET STRIPS, COPPER BUS BARS & COOLING EQUIPMENT
Part # Description Size Color Price
QGL-7215 16 position power strip with circuit breaker and 15 ft. cord 49" Length Gray
Qty:
Manufacturer Direct
QGL-7219 6 position power strip with circuit breaker (19" rack mounted) 19" Length Black
Qty:
Manufacturer Direct
QGL-7215-20 20 amp,16 position power strip w/circuit breaker & twist lock 5-20P plug 49" Length Gray
Qty:
Manufacturer Direct
QGL-CBB-60 Copper Bus Bar 58.00" (Isolated) - -
Qty:
Manufacturer Direct
QGL-7217FT-3 Front & rear mount, adjustable fan tray w/three 75 CFM fans - -
Qty:
Manufacturer Direct
CASTERS, LEVELERS & MOUNTING RAILS
Part # Description Size Color Price
QGL-7205-ES1P Pair of 19" EIA mounting rails, tapped 10/32 w/hardware 19" Black
Qty:
Manufacturer Direct
QGL-7205-ES2P Pair of 19" EIA mounting rails to accept M6 cage nuts w/hardware 19" Black
Qty:
Manufacturer Direct
QGL-E23K-36 Conversion kit to convert from 19" to 23" - -
Qty:
Manufacturer Direct
QGL-AT2 Anti-tip legs - -
Qty:
Manufacturer Direct
QGL-G101 Networking/Ganging kit - -
Qty:
Manufacturer Direct
QGL-AK101 Seismic anchoring kit (Heavy duty carbon steel concrete expansion anchor kit) - -
Qty:
Manufacturer Direct
QGL-7208-E Casters – one set of four (2 locking and 2 non-locking) - -
Qty:
Manufacturer Direct
QGL-7208-EHD Heavy Duty Casters – one set of four (all 4 locking) - weight cap. 1500 lbs. - -
Qty:
Manufacturer Direct
  • Plexiglas door with locking swing handle
  • Perimeter vented steel rear door with locking swing handle
  • Pair of solid lift-off side panels w/lock and finger release latches
  • 16 position power strip with circuit breaker and 15 ft. cord
  •

    Great Lakes Features :

  • 8 week shipping time on custom changes
  • Custom colors available upon request (Additional charge may apply. Please allow up to an additional 4 week ship time)
  • Custom configurations assembles in 24-48 hours
  • Accessories installed where you specify
  • No additional freight charges for installed options
    1. Shelves placed where you specify
    2. Mounting rails located where you specify
    3. Cable Management installed where you specify
    4. Power outlet strips installed where you specify
  • No additional cost for drop ship
  • All enclosures have a Serial Number
  •

    Enhanced Series Enclosures provide a feature-rich enclosure for housing telecommunication equipment, computer hardware, LAN equipment and other electronic equipment.  The Enhanced Series modular design accommodates initial installation and future additions in today's progressive network environment.  Enhanced Enclosure shipments are the quickest in the industry.  When it's delivery that really counts, we can provide the fit, the quality and the service you deserve - on time.

    Tech Spec Drawings -

  • GL720E-2936 Drawing Specs (PDF) PDF
  •

  • Dimensions: 72” x 29” x 36”
  • Shipping Weight: 350 lbs
  • Rack Spaces: 37 U 19" 310-E Compliant
  • UL Listed: UL60950-1 Standard for IT & Communications Equipment, Cabinet Enclosures and Rack Systems
  • Weight Capacity: 1500 lbs. on levelers, bolted to floor, or on heavy duty casters
  •

    Height Width Depth RU Panel Width A Anchor Width Anchor Depth Rear Opening
    Total Area RO1 RO2 RO3 RO4
    72" 29" 36" 37 21.19" 12 14" 31.95" 73.4in² 16.74" 3.32" 4.82" 8.88"

    technical drawings of Great Lakes Rack Mount Enclosure

    top view of enhanced series enclosure racks  bottom view of enclosure racks
    Top View  Bottom View
