FiberglassBox™ Premier Series Switch and Outlet Boxes
Non-Metallic Electrical Box with "Hard Box" Characteristics
AMP-1098-N
What's special about these wall boxes?
- Fiberglass material is non-corrosive and non-conductive, which saves you time on grounding.
- Electrical box is made of non-metallic fiberglass and reinforced by a thermoset polyester material, providing a rigid design.
- Wide range of operating temperatures ensures that the switch box will not melt in high heat applications, or shatter in cold temperatures.
- Click for More Features
-
Many electrical contractors like the rigidity of stainless steel or aluminum wall boxes, but don't always appreciate the extra work required to ground them. Allied Moulded Products presents the FiberglassBox™ electrical switch and outlet box, which features a solid, non-metallic fiberglass design.
| Single Gang | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Description | Outside Depth | Outside Width | Outside Height | Qty | Price | |

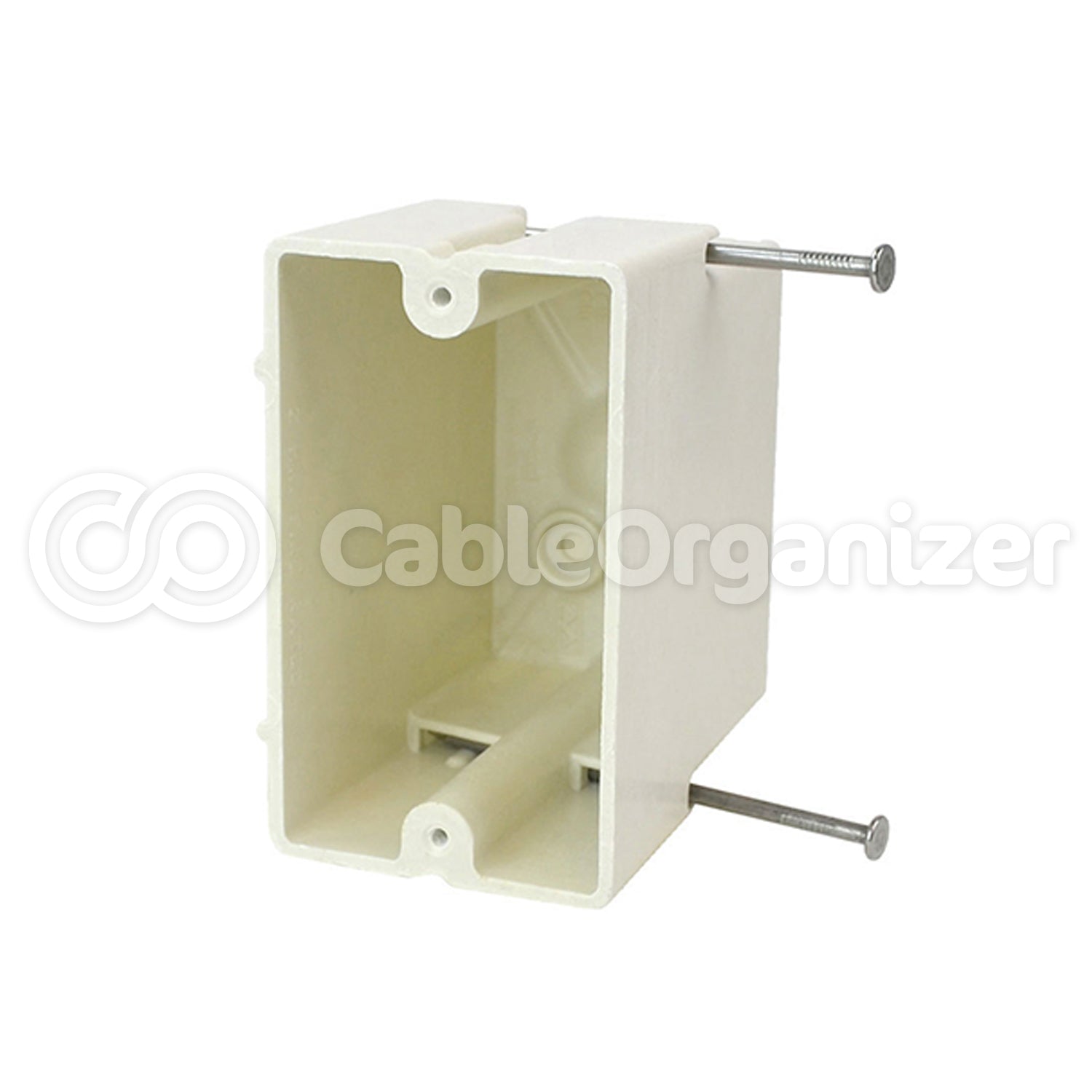

| AMP-1098-N |  |
Fiberglass Box Single Gang - 20.5 Cu In - Internal Mid Nails | 3-1/4" | 2-1/4" | 3-3/4" | 100 | ||
| AMP-1099-N |  |
Fiberglass Box Single Gang - 22.5 Cu In - Internal Mid Nails | 3-9/16" | 2-1/4" | 3-5/8" | 100 | ||
| Dual Gang | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Description | Outside Depth | Outside Width | Outside Height | Qty | Price | |
| AMP-2300-NK |  |
Fiberglass Box Dual Gang - 32.5 Cu In - Internal Mid Nails | 3" | 4" | 3-3/4" | 50 | ||
| AMP-2300-Z4K |  |
FiberglassBox Dual Gang- 32.5 Cu In - 1/2 in Offset Z Hanger Bracket | 3" | 4" | 3-3/4" | 50 | ||
| Three Gang | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Description | Outside Depth | Outside Width | Outside Height | Qty | Price | |
| AMP-3300-NK |  |
Fiberglass Box Three Gang - 46 Cu In - Internal Mid Nails | 3" | 5-11/16" | 3-3/4" | 20 | ||
| AMP-3300-Z4K |  |
FiberglassBox Three Gang- 46 Cu In - 1/2 in Offset Z Hanger Bracket | 3" | 5-11/16" | 3-3/4" | 25 | ||
| Four Gang | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Description | Outside Depth | Outside Width | Outside Height | Qty | Price | |
| AMP-4300-NK |  |
Fiberglass Box Four Gang - 60 Cu In - Internal Mid Nails | 3" | 7-1/2" | 3-3/4" | 20 | ||
| PART # | DESCRIPTION | Volume (in³) | OUTSIDE DIMENSIONS | STD PKG QTY | PKG WEIGHT | UL Listing | ||
| Depth | Width | Height | ||||||
| AMP-1098-N | Single Gang - 20.5 Cu In - Internal Mid Nails | 20.5 | 3-1/4" | 2-1/4" | 3-3/4" | 100 | 35 lbs | 514 C |
| AMP-1099-N | Single Gang - 22.5 Cu In - Internal Mid Nails | 22.5 | 3-9/16" | 2-1/4" | 3-5/8" | 100 | 37 lbs | 514 C |
| AMP-2300-NK | Dual Gang - 32.5 Cu In - Internal Mid Nails | 32.5 | 3" | 4" | 3-3/4" | 50 | 30 lbs | 514 C |
| AMP-2300-Z4K | Dual Gang - 32.5 Cu In - 1/2 in Offset Z Hanger Bracket | 32.5 | 3" | 4" | 3-3/4" | 50 | 39 lbs | 514 C |
| AMP-3300-NK | Three Gang - 46 Cu In - Internal Mid Nails | 46 | 3" | 5-11/16" | 3-3/4" | 20 | 17 lbs | 514 C |
| AMP-3300-Z4K | Three Gang - 46 Cu In - 1/2 in Offset Z Hanger Bracket | 46 | 3" | 5-11/16" | 3-3/4" | 25 | 24 lbs | 514 C |
| AMP-4300-NK | Four Gang - 60 Cu In - Internal Mid Nails | 60 | 3" | 7-1/2" | 3-3/4" | 20 | 19 lbs | 514 C |
