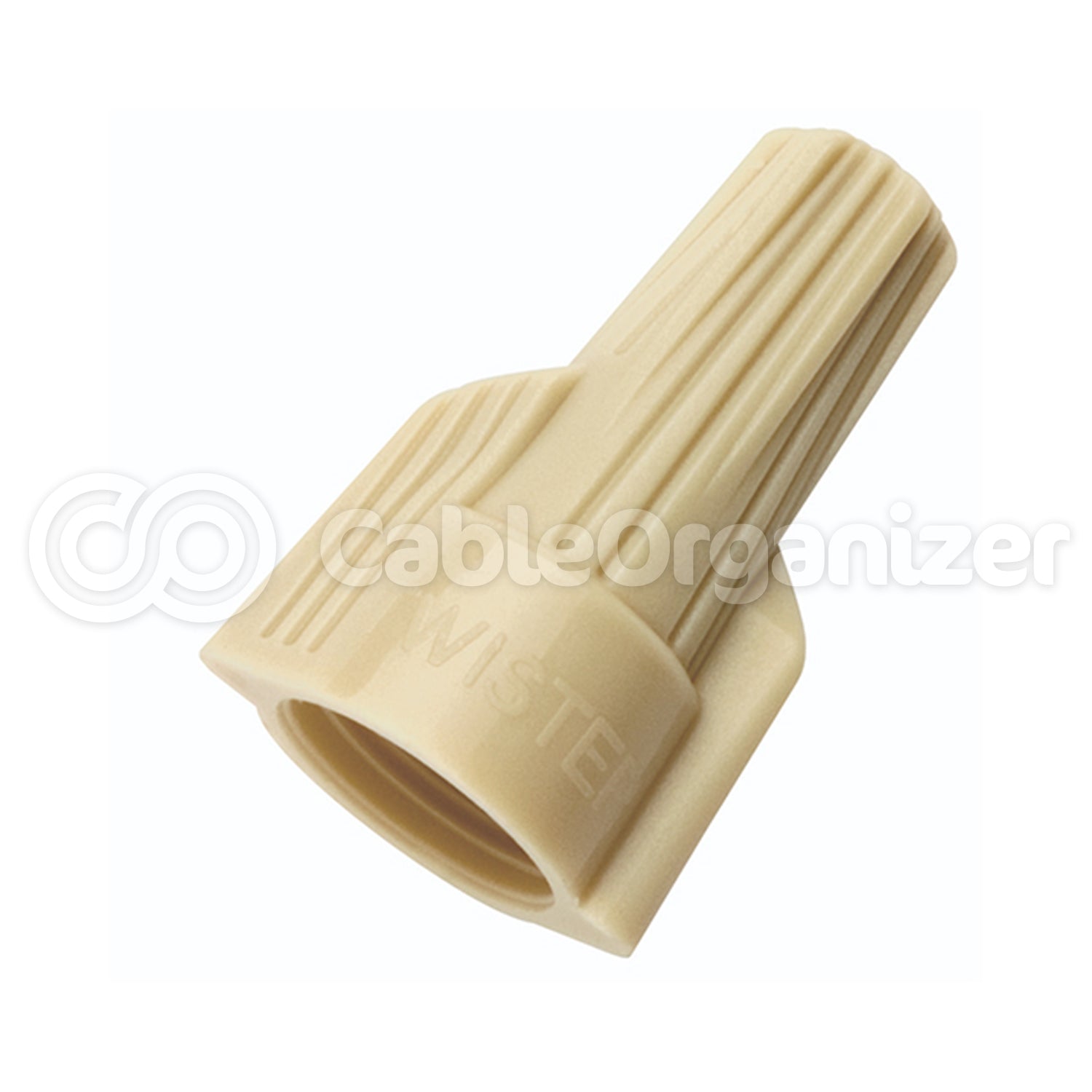

IDEAL Twister® 341® Tan Wire Connector

Exceptional Range of Wire Combinations Make These Wire Nuts an Invaluable Part of Your Wiring Kit

ID-30-341J
Qty:

What's special about these wire connectors?

  • The innovative swept-wing mold and ribbed grooves in the cap make it easy to hold on to and provide a sure grip.
  • You can use these wire nuts with three #22 to three #8 AWG wire combinations.
  • The deep skirting along the bottom of the wire nut provides dielectric protection and protects the user from flash-over.
  • Click for More Features
    •
  • CEULCSA Approved

The IDEAL Twister Wire Connectors are able to handle a wide array of sizes from 22 AWG to 8 AWG. These connectors are easy to use, secure fitting, provide maximum dielectric protection and meet UL and CSA rating requirements.

Part # IMG Wire Combination Range Quantity Weight Color Price
ID-30-341J Ideal Twister® Wire Connector 600V
22 thru 8 AWG (34mm² to 10,0 mm²)
Min. 3 # 22 (3-,34mm²)
Max. 3 # 10 (3-6,0mm²)		 Jar of 750 3.525 lbs Tan
Qty:
Manufacturer Direct
ID-30-641 Ideal Twister® Wire Connector 600V
22 thru 8 AWG (34mm² to 10,0 mm²)
Min. 3 # 22 (3-,34mm²)
Max. 3 # 10 (3-6,0mm²)		 Bulk Bag of 500 2.35 lbs Tan
Qty:
Manufacturer Direct
  • Square-wire spring Instantly adjusts to the shape and size of the splice, then creates a vibration-resistant connection.
  • Hexagonal shape allows for compatibility when used with the standard nutdriver.
  • These polypropylene caps are rated for 600 Volt maximum.
  • Easy and quick to use wire nuts need no pre-twisting
  • UL Listed E5238 (see attached) and CSA Certified
  • The outer shell of the wire connector can withstand up to 105° C (221° F) making it an excellent product for jobs where there are high temperatures.
  • UL 94 V-2 Flame-retardant shell
  • Proudly made in the USA US flag
  • 90 day manufacturer warranty

    •

  • Wire Nut Fill Capacity Chart PDF

    •

    wire connector dimensions
    Dimensions
    A B C D E
    17/64" 29/64" 23/32" 23/64" 1-1/8"
    7mm 11.5mm 18mm 9mm 28.5mm



    Purpose : Wire Connection
    Maximum Voltage : 600 Volts
    Minimum and Maximum Wire Combination : 3
    Maximum Wire Size : 8 AWG
    Minimum Wire Size : 22 AWG



    UL File number E5238 and listed to 486C, CSA Certified to C22.2, complies with Federal Specification W-S-610E, and is in accordance with IEC Publications 998-2 and 998-2-4



    Listed as a PRESSURE-TYPE wire connector on the following solid and/or stranded wire combinations:

    • 2 to 6 #18
    • 1 to 6 #16
    • 1 to 5#14
    • 1 to 3 #12
    • 4 #12 solid
    • 1 to 3 #10
    • 1 #22 w/2 to 5 #20
    • 1 #22 w/1 to 5 #18 or #16
    • 2 #22 w/1 4 #20, #18 or #16
    • 1 #18 w/1 or 2 #10
    • 2 #18 w/1 to 3 #12
    • 2 #18 w/1 or 2 #10
    • 4 #18 w/1 #10
    • 1 #16 w/1 or 2 #10
    • 2 #16 w/1 or 4 #14
    • 4 #16 w/1 #10
    • 5 #16 w/1 #14
