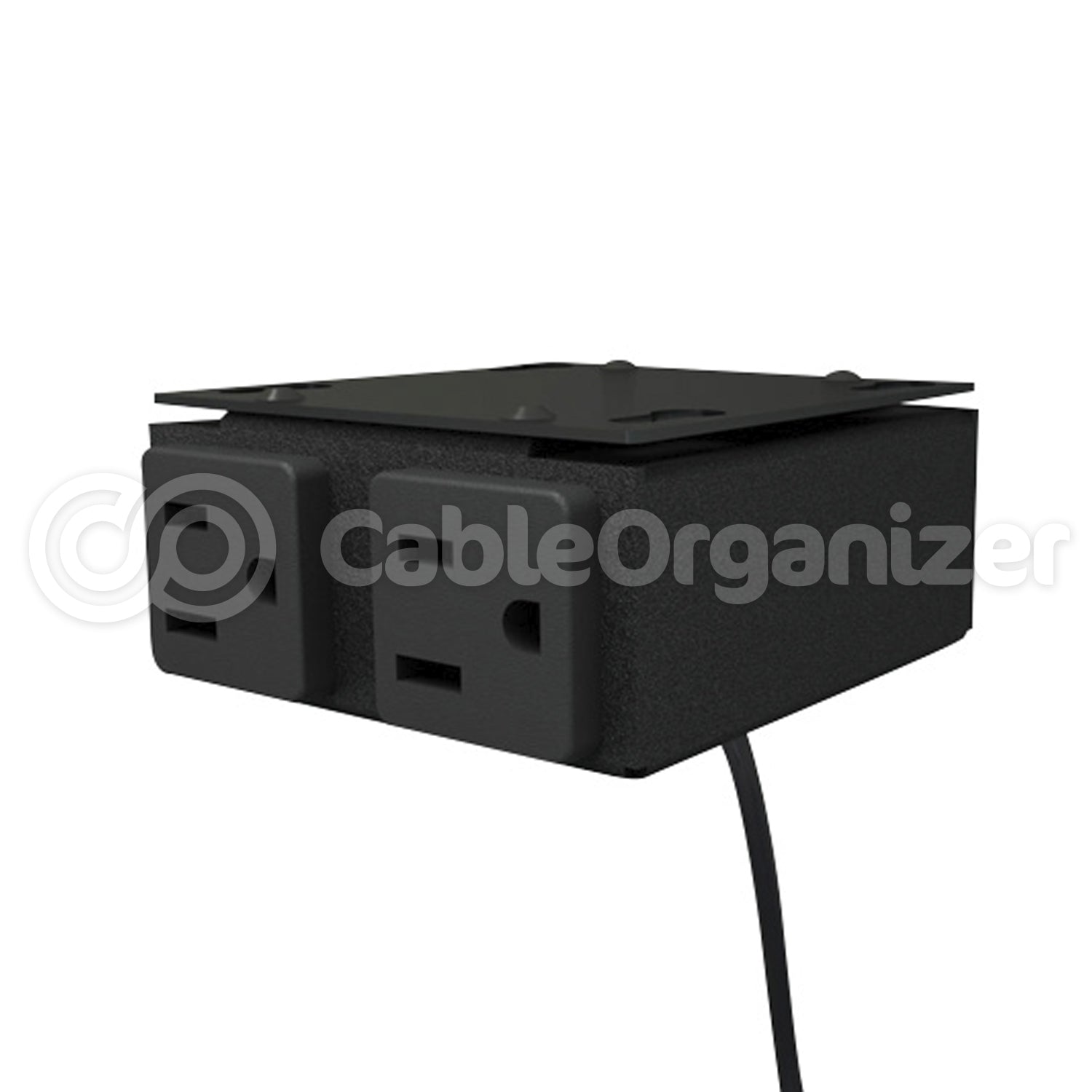

Minitap Under-the-Desk Power Extension

Bringing a Practical and Affordable Power Solution to Any Desk or Table

BY-BE01530-72
Qty:

What's special about these convenience outlets?

  • Plugs into any 3- prong receptacle and mounts underneath any table or desk, bringing two power outlets to a much more convenient location for quick access.
  • Available in a hardwired version for compliance with NEC and city codes where necessary.
  • Easy key slot (standard unit) or screw-in (hardwired unit) mounting eliminates the often expensive and labor intensive hole-cutting required by permanent desk outlets.
  • Ideal for bringing power to laptops, projectors, microscopes, and any other tabletop device.
  • Click for More Features

The Minitap provides an easy to install and convenient solution for bringing power outlets within your reach. Requiring no drilling, these desk outlets use key slots that slide right into place and are available in standard and hardwired versions for installation in residential and commercial applications.

NOTE: No returns accepted unless defective

Please Note: These products ship in 5 business days

Part # Wiring # Of Outlets Dimensions Weight Price
BY-BE01530-72 Standard, unit plugs into to wall receptacle 2 2.90" W x 1.63" H x 3.10" D 1.21 lb (550g)
Qty:
Manufacturer Direct
  • Hardwired version contains flexible steel conduit covered wires for convenient cable management and protection.
  • Keeps a very low profile for a streamlined look that virtually eliminates obstructions for seated personnel.
  • Textured black finish looks great under desks and tables of any color.
  • Ideal for educational, office/conference room, and shop applications.
  • 6' (1.82 m) power cable ensures you will have easy access to a receptacle
  • Easily removed and reused to meet your dynamic demands.
  • Proudly made in the USA USA

    •

  • Installation Diagram for Fixed Mount MiniTap (PDF PDF
  • Installation Diagram for Slide Mount MiniTap (PDF) PDF

    •

    Power 120V/15A
    Dimensions Slidemount: 2.90" W x 1.63" H x 3.10" D
    Fixed Mount: 2.90" W x 1.42" H x 3.10"D
    Weight Standard: 1.21 lb (550g)
    Hardwired: 1.81 lb (821g)
    Cable Length 6’ (1.82 m)



    Slidemount Dimensions

    dimensional drawing for slide mount MiniTap



    Fixed Mount Dimensions

    dimensional drawing for fixed mount MiniTap



    Manuals



    Related Articles



    How-To Corner



    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    Does this mini-tap come in a 1 power 1 USB option? If so, what is the cost for 1 vs 50.

    Asked by Anonymous user on 05.16 PM Wednesday, 08 March, 2017

    Answer:

    • - Hello, Unfortunately not, this unit only comes with two power outlets. However, we do have some other products that do have power and usb ports, one option is the Moiré Desktop Power & Data Outlet or Wiremold Clamp-on Desk Power Center. For more information on these products or some other data/power options please give us a call toll free at 866-222-0030

      andrew b. on 04.33 PM Tuesday, 14 March, 2017
