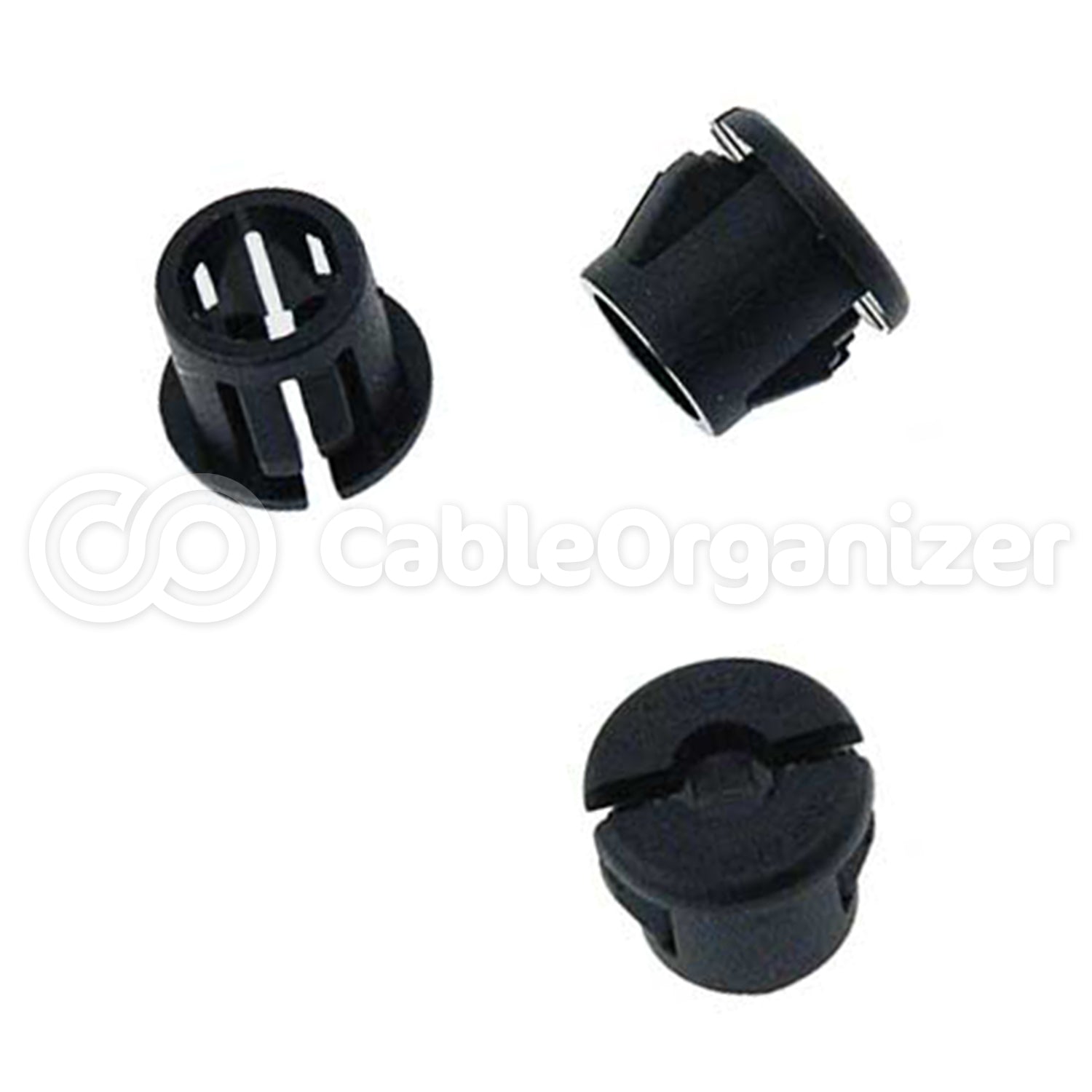

• top bottom and side views of richco snub bushings - icon
  • drawing of richco snub bushings in use in table - icon
    • |||videoviewer>player|||

Snub Bushings

Secures and Protects Cables in Panels 1/8" Thick

RI-SB-1-25
Qty:

What's special about snub bushings?

  • Provides cable protection in panels up to 1/8" thick.
  • Once placed into the panel, the bushing locks on to the cable.
  • Supports cables up to 0.28" diameter.
  • Available in quantities of 25 or 1,000
  • Click for More Features

The RICHCO® Snub Bushing provides wire and cable insulation and retention when feeding through a panel. Available in three different standard sizes. A wire or cable is first fed thru the Snub Bushing, then as the Snub Bushing is locked into a panel hole, the Snub Bushing closes in firmly against the wire or cable.

Please Note: These products ship in 5 business days
Only Available in Black

Part # Description Shipping Weight Quantity / Pack Price / Pack
RI-SB-1-25 Snub Bushing for 3/8" Panel Hole Diameter 0.5 lb 25
Qty:
Quick Ship
RI-SB-1-1000 Snub Bushing for 3/8" Panel Hole Diameter 3.0 lbs 1,000
Qty:
Manufacturer Direct
RI-SB-2-25 Snub Bushing for 7/16" Panel Hole Diameter 0.5 lb 25
Qty:
Quick Ship
RI-SB-2-1000 Snub Bushing for 7/16" Panel Hole Diameter 3.0 lbs 1,000
Qty:
Quick Ship
RI-SB-3-25 Snub Bushing for 1/2" Panel Hole Diameter 0.5 lb 25
Qty:
Quick Ship
RI-SB-3-1000 Snub Bushing for 1/2" Panel Hole Diameter 3.0 lbs 1,000
Qty:
Quick Ship
  • Manufactured with Nylon 6/6 material, RMS-01
  • Black color
  • Available in package quantity (25) or Quantity (1000)

    •

    Snub Brushing Diagrams



    PART # Diam. "A" Diam. "B" Panel Hole Diam. Nom. Panel Thickness Approx. Cable Holding Diam.
    RI-SB-1 0.36" (9.1mm) 0.45" (11.4mm) 3/8" (9.5mm) 1/32", 1/16", 3/32", 1/8"
    (0.8mm, 1.6mm, 2.4mm, 3.2mm )     		0.15" (3.8mm)
    RI-SB-2 0.43" (10.9mm) 0.55" (14.0mm) 7/16" (11.1mm) 0.22" (5.6mm)
    RI-SB-3 0.49" (12.4mm) 0.63" (16.0mm) 1/2" (12.7mm) 0.28" (7.1mm)
    Related Articles



    How-To Corner



    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    Do you have grommets that will accommode a quarter inch single wire passing thru it after the grommet is installed?

    Asked by Anonymous user on 02.59 PM Monday, 26 December, 2016

    Answer:

    • - Yes, We offer small rubber grommets of different sizes which can be found here http://www.cableorganizer.com/grommet/ You can also search for your specific size by using the drop down window in column A or Inside Diameter.

      Anonymous user on 04.14 PM Friday, 17 February, 2017
    Question:

    Hi, Does this product provide any kind of seal against liquids? I'm looking to prevent potting from leaking through a hole made for a wire. Thank you

    Asked by Anonymous user on 04.00 PM Thursday, 31 August, 2017

    Answer:

    • - Hello, This product would help with the leaking, but would not completely stop it.

      Anonymous user on 02.12 PM Friday, 01 September, 2017
