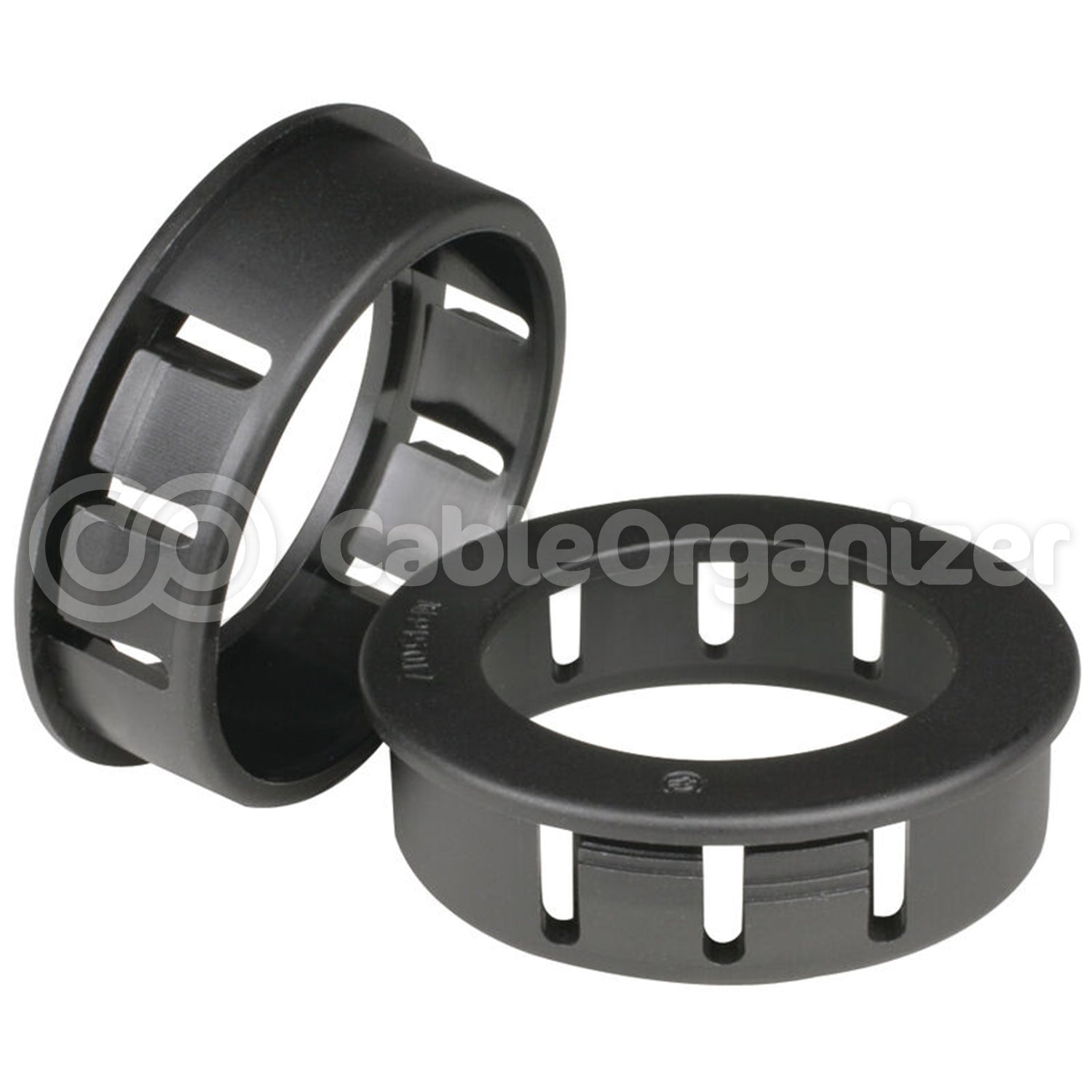

Closed Snap-in Bushing (Style B)
Snaps Into Circular Cable Pass-Throughs to Protect Wires from Damage
RI-PGSB-0609A-10
What's special about this closed snap-in bushing?
- Lines the sharp edges of sheet metal penetration points to protect cables from abrasion as they pass through.
- Perfect for retrofit installations - bushing design allows for side entry of pre-existing cable bundles.
- Multiple sizes fit panels ranging from 0.028" to 0.138" in thickness.
- Bushing widths accommodate holes ranging from 0.45" to 0.68" across.
- Constructed of Black Nylon 6/6
- Available in packages of 10 or 1000 pieces
- Click for More Features
Please Note: These products ship in 5 business days
Only Available in Black
| Part # | Description | Shipping Weight | Pack Qty | Price / Pack |
|---|---|---|---|---|
| RI-PGSB-0609A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.374" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-0609A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.374" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
| RI-PGSB-1013A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.512" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-1013A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.512" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
| RI-PGSB-1216A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.630" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-1216A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.630" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
| RI-PGSB-1316A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.630" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-1316A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.630" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
| RI-PGSB-1519A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.748" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-1519A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.748" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
| RI-PGSB-1822A-10 | Closed Snap-in Bushing Style B, Hole diameter 0.866" Qty 10 | 0.5 lb | 10 | Quick Ship
|
| RI-PGSB-1822A-1000 | Closed Snap-in Bushing Style B, Hole diameter 0.866" Qty 1000 | 3.0 lbs | 1000 | Manufacturer Direct
|
The RICHCO® Closed Snap-in Bushing (Style B) can be assembled into holes that already contain wires or cables. The split design of the Snap-in Bushing allows side entry of wire or cable bundles. Black Nylon 6/6, RMS-01. Available in Quantity (10) or Quantity (1000) packages.
| Part # | Panel Thickness Range | Hole Diameter | "A" - Overall Width | "B" - Max. Holding Bundle Dia. | "C" - Overall Height | "D" |
| RI-PGSB-0609A | 0.028" - 0.067" (0.7mm - 1.7mm) |
0.374" (9.5mm) |
0.45" (11.4mm) |
0.26" (6.6mm) |
0.26" (6.5mm) |
0.051" (1.3mm) |
| RI-PGSB-1013A | 0.031" - 0.138" (0.8mm - 3.5mm) |
0.512" (13.0mm) |
0.59" (14.9mm) |
0.35" (9.0mm) |
0.41" (10.5mm) |
0.059" (1.5mm) |
| RI-PGSB-1216A | 0.028" - 0.130" (0.7mm - 3.3mm) |
0.630" (16.0mm) |
0.73" (18.6mm) |
0.48" (12.3mm) |
0.39" (10.0mm) |
0.039" (1.0mm) |
| RI-PGSB-1316A | 0.047" - 0.138" (1.2mm - 3.5mm) |
0.630" (16.0mm) |
0.71" (18.0mm) |
0.41" (10.5mm) |
0.41" (10.5mm) |
0.063" (1.6mm) |
| RI-PGSB-1519A | 0.047" - 0.130" (1.2mm - 3.3mm) |
0.748" (19.0mm) |
0.81" (20.6mm) |
0.57" (14.4mm) |
0.43" (11.0mm) |
0.051" (1.3mm) |
| RI-PGSB-1822A | 0.039" - 0.138" (1.0mm - 3.5mm) |
0.866" (22.0mm) |
0.98" (24.8mm) |
0.68" (17.3mm) |
0.45" (11.5mm) |
0.063" (1.6mm) |
