FastLane™ Drop Over Cable Protectors
Quickly Drop Some Protection On Cables, Wires, Hoses & More
What's special about this drop over cable protector?
- Easily protect cables from foot traffic with a interconnectable drop over cover.
- Ideal for offices, schools, around the home, or anywhere a few cables need some temporary protection.
- Quickly lengthen the coverage by interlocking multiple FastLanes.
- Prevent the FastLanes from sliding on non-carpeted sufaces by adding an Anti-Slip Rubber Base Kit.
- Protects wires, cables up to 1" in diameter.
- Easy to setup and break down for storage.
- Click for More Features
This floor cable protector is a quick way to protect a small amount of cables on the floor from foot traffic around the home or office.
NOTE: Drop over cable protector does not prevent abrasion to cable from below.
| Part # | Description | Channel Size | Overall Size | Colors | Price |
|---|---|---|---|---|---|

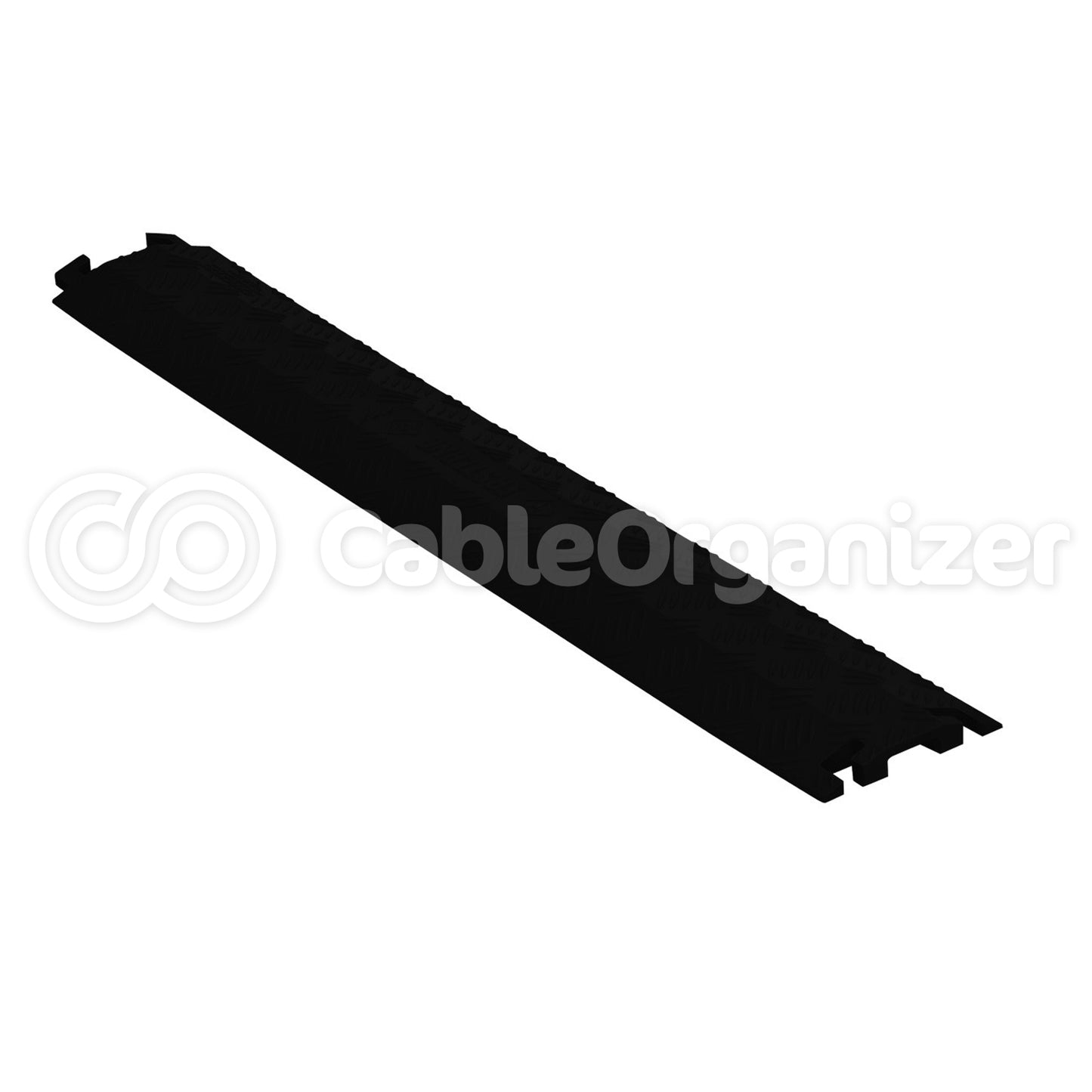

| CPFL1X1-5 | 1 Channel FastLane | 0.5" H x 1.5" W | 5.25" W x 36" L (133.3 mm x 914.4mm) | Black, Orange | Manufacturer Direct
|
| CPFLRPKIT-1X1-5 | Fast Lane Anti-Skid Kit for CPFL1X1-5 w/ 18 pads | Manufacturer Direct
|
|||
| CPFL1X4 | 1 Channel FastLane | 1" H x 4" W | 10.75" W x 36" L (273 mm x 914.4mm) | Black, Orange | Manufacturer Direct
|
| CPFL2X1-75 | 2 Channel FastLane | 1" H x 1.75" W | 10.75" W x 36" L (273 mm x 914.4mm) | Black, Orange | Manufacturer Direct
|
| CPFLRPKIT | Fast Lane Anti-Skid Kit for CPFL1X4 or CPFL2X1-75 w/ 8 pads | Manufacturer Direct
|
FastLane™ Drop Over Cable Protectors are a quick and easy solution to cable management. The durable polyurethane is ideal for constant pedestrian foot traffic. The “L” shaped connectors attach to other FastLane ™ Drop Over Protectors to create longer cable runs. A low profile cover and 5-bar surface tread provide maximum traction to help lessen the hazards of tripping or slipping. These drop over cable protectors are a fast and effective way of protecting small cables and cords in your home, office, or warehouse.
| Model | Channel | A Length |
B Width |
C Height |
D Channel Width |
E Channel Height |
Weight |
| CPFL1X1-5 | 1 | 36" (914.4 mm) | 5.25" (133.3 mm) | 0.75" (19 mm) | 1.5" (39 mm) | 0.5" (12.7 mm) | 3 lbs. (1.4 kg) |
| CPFL1X4 | 1 | 36" (914.4 mm) | 10.75" (273 mm) | 1.5" (38.1 mm) | 4" (101.6 mm) | 1" (25.4 mm) | 8 lbs (3.6 kg) |
| CPFL2X1-75 | 2 | 36" (914.4 mm) | 10.75" (273 mm) | 1.5" (38.1 mm) | 1.75" (101.6 mm) | 1" (25.4 mm) | 9 lbs. (4.2 kg) |
| PART # | CPFL1X1-5 | CPFL1X4 | CPFL2X1-75 |
| CAT 5e Capacity | 12 cables | 64 cables | 28 cables |
| Specification Data | |
|---|---|
| Material | Polyurethane (UV stabilized) |
| Operating Temp. | -40°F to 120°F (-40°C to 48°C) |
| Safety Symbols | Per ANSI. Z535.3-1991 |
Manuals
Related Articles
How-To Corner
Request A Quote
Did you know that we can give you a quote for most of our products, including shipping?
You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)
Questions & Answers
At what Temperature is the melting point of the FastLane? Drop Over Cable Protectors? - We have a lot of welders in our shop and I think hot weld spatter will be a factor in if we look to purchase these
- Thank you for your question. The operating temperature indicates up to 120° - melting point would be around 180.
What is the weight rating on this cable protector.
- Hello, The weight limit is 1,000 pounds total and is not certified to be driven over with any vehicle.
