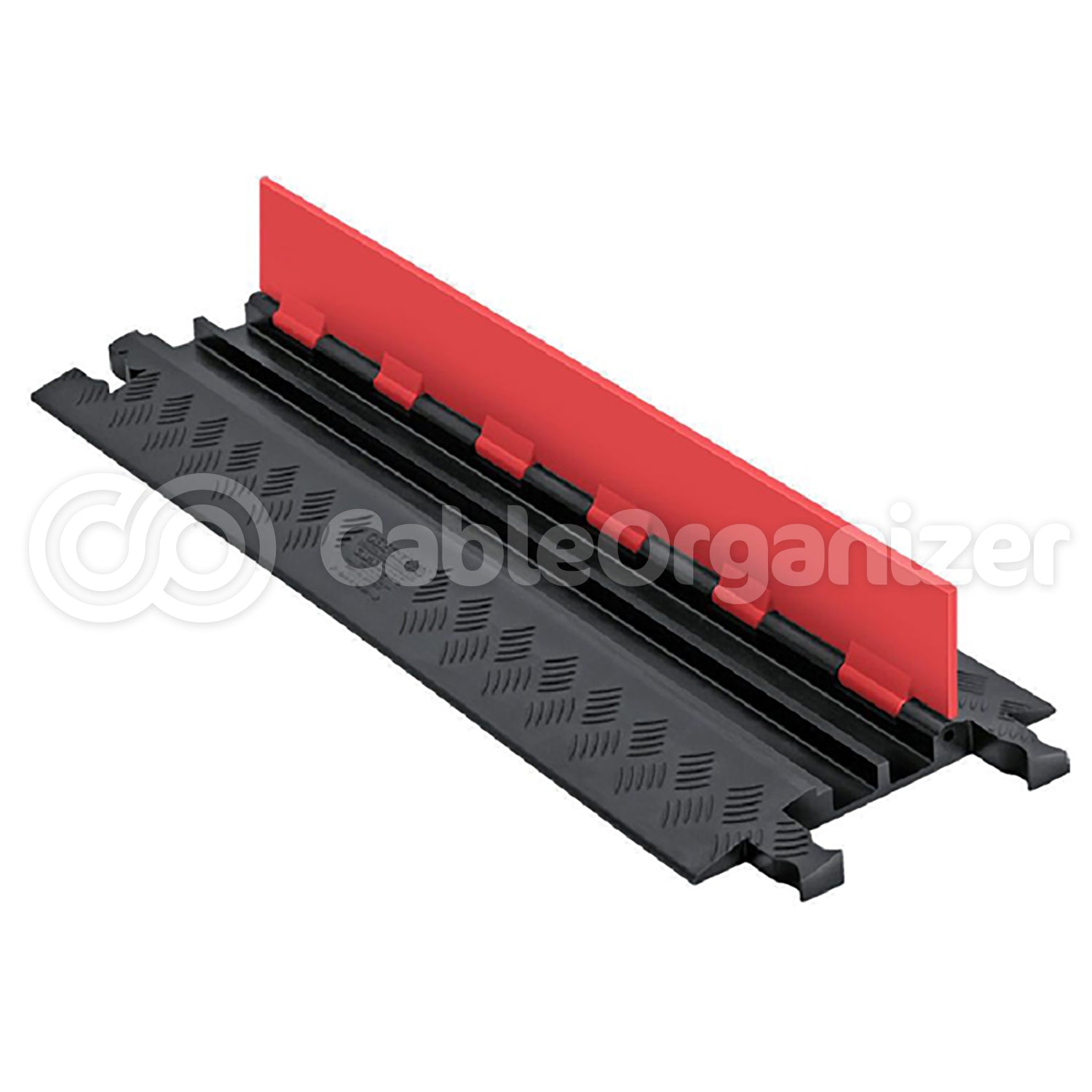

• guard dog® single channel low profile cable protector with lid open - icon
  • cables in low profile protector
  • ada compliant guard dog® single channel low profile cable protector with lid open - icon
  • drawing of guard dog® single channel low profile cable protector - icon
  • drawing of ada compliant guard dog® single channel low profile cable protector - icon
  • drawing of ada compliant guard dog® single channel low profile cable protector - icon
  • drawing of ada compliant guard dog® single channel low profile cable protector - icon
    • |||videoviewer>player|||

Guard Dog® Low Profile & ADA Compliant Cable Protectors

Heavy Duty High Traffic Environment Cable Protection

CK-GD1X75-ST-O/B
Qty:

What's special about these protective cable ramps?

  • Low profile one channel cord cover made from heavy duty material.
  • High traffic protection and safety measures for cable/hose lines up to 0.75" in diameter.
  • Cable ramps are only 1.25" high to provide a truly low profile design for effortless crossing of foot traffic, automobiles, and machinery.
  • Guard Dog® cable protector is available in either a standard ramp or in an ADA compliant ramp, providing safe and easy access for the handicapped and disabled.
  • Click for More Features

Using a Guard Dog® cable protector helps to greatly extend the life of exposed cables, while providing a greater range of accessibility and safety where heavy foot traffic is present. Leaving cables out in the open and unprotected exposes them to abrasive damage and excessive wear from crossing traffic, and creates a tripping hazard for pedestrians.

Some of these products may have a lead time of 4-6 days
Standard Low Profile Cable Protector
Part # Color Channel Size Overall Dimensions Weight Price
CK-GD1X75-ST-O/B Orange Lid / Black Ramps 2.25" W x 0.75" H 36" L x 10.9" W x 1.25" H 6.7 lbs
Qty:
Manufacturer Direct
CK-GD1X75-ST-B/B Black Lid / Black Ramps 2.25" W x 0.75" H 36" L x 10.9" W x 1.25" H 6.7 lbs
Qty:
Manufacturer Direct
Low Profile Cable Protectors w/ ADA Compliant Ramps
Part # Color Channel Size Overall Dimensions Weight Price
CK-GD1X75-O/B Orange Lid / Black Ramps 2.25" W x 0.75" H 36" L x 27.4" W x 1.25" H 17.5 lbs
Qty:
Manufacturer Direct
CK-GD1X75-B/B Black Lid / Black Ramps 2.25" W x 0.75" H 36" L x 27.4" W x 1.25" H 17.5 lbs
Qty:
Manufacturer Direct

The Guard Dog® Single Channel Low Profile Cord Covers offers two options for further extending accessibility; low profile ADA compliant ramps allow anyone, whether in a wheel chair or being a small child, to easily cross cabling with minimal effort, while the standard low profile ramps provide an affordable and easy to install cable management solution for high traffic applications.

  • Safety warning symbols are molded into the lid to provide crossing pedestrians with an early warning that tripping hazards and electrical cables maybe present.
  • ADA compliant symbols are molded into each ADA compliant ramp, to ensure that the products meet the accessibility guidelines for the disabled.
  • 5-bar tread plate surface provides greater traction to help avoid accidental slipping in unfavorable environmental conditions.
  • Durable hinged cover provides easy access and cable placement.
  • High load capacity: 36,000 lb. per tire or 72,000 lb. per axle.
  • Heavy duty “Dog Bone” connectors provide lasting strength for multiple cord cover runs.
  • Strong Polyurethane construction satisfies state and federal regulatory agencies.
  • Modular interlocking design is easy to setup, breakdown, store, and transport.
  • Meets NEC article 525 requirements
  • Meets Americans with Disabilities Act guidelines for ADA accessibility

    •

    Standard Low Profile Protector

    single channel low profile guard dog®

    PART # A
    LENGTH    		 B
    WIDTH    		 C
    HEIGHT    		 D
    CHANNEL WIDTH    		 E
    CHANNEL HEIGHT    		 WEIGHT COLOR
    CK-GD1X75-ST-O/B 36"
    914.4mm    		 10.9"
    277mm    		 1.25"
    31.8mm    		 2.25"
    57.2mm    		 0.75"
    19mm    		 6.7 lbs
    3.1kg    		 Orange Lid
    Black Ramps
    CK-GD1X75-ST-B/B 36"
    914.4mm    		 10.9"
    277mm    		 1.25"
    31.8mm    		 2.25"
    57.2mm    		 0.75"
    19mm    		 6.7 lbs
    3.1kg    		 Black Lid
    Black Ramps



    Low Profile Protector with ADA Ramps

    low profile single channel ada compliant guard dog®

    PART # A
    LENGTH    		 B
    WIDTH    		 C
    HEIGHT    		 D
    CHANNEL WIDTH    		 E
    CHANNEL HEIGHT    		 WEIGHT COLOR
    CK-GD1X75-O/B 36"
    914.4mm    		 27.4"
    696mm    		 1.25"
    31.8mm    		 2.25"
    57.2mm    		 0.75"
    19mm    		 17.5 lbs
    8.0kg    		 Orange Lid
    Black Ramps
    CK-GD1X75-B/B 36"
    914.4mm    		 27.4"
    696mm    		 1.25"
    31.8mm    		 2.25"
    57.2mm    		 0.75"
    19mm    		 17.5 lbs
    8.0kg    		 Black Lid
    Black Ramps



    Specifications

    Material Polyurethane (UV stabilized)
    Operating Temp -40° to 120° F (-40° to 48° C)
    Hinge Pin Material Reinforced fiberglass
    Safety Symbols Per ANSI Z535.3-1991
    Load Capacity
      1 Channel Max Load at 70° F (21° C)
    Per Tire 36,000 lbs (16,330kg)
    Per Axle 72,000 lbs (32,660kg)
    Warnings
    Symbols Molded into Lid  trip hazard symbol   symbol for electrical hazard
    Manuals



    Related Articles



    How-To Corner



    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    End cap - Is there an end cap that can be attached to the end of the channel to bevel the edge down to a lower level. The end of the channel channel is a trip hazard. I didn't see one on the site.

    Asked by Jason M. on 02.23 PM Thursday, 12 June, 2014

    Answer:

    • - Thank you for your question. Unfortunately no end caps are manufactured for this product.

      Fernando M. on 03.01 PM Thursday, 12 June, 2014
