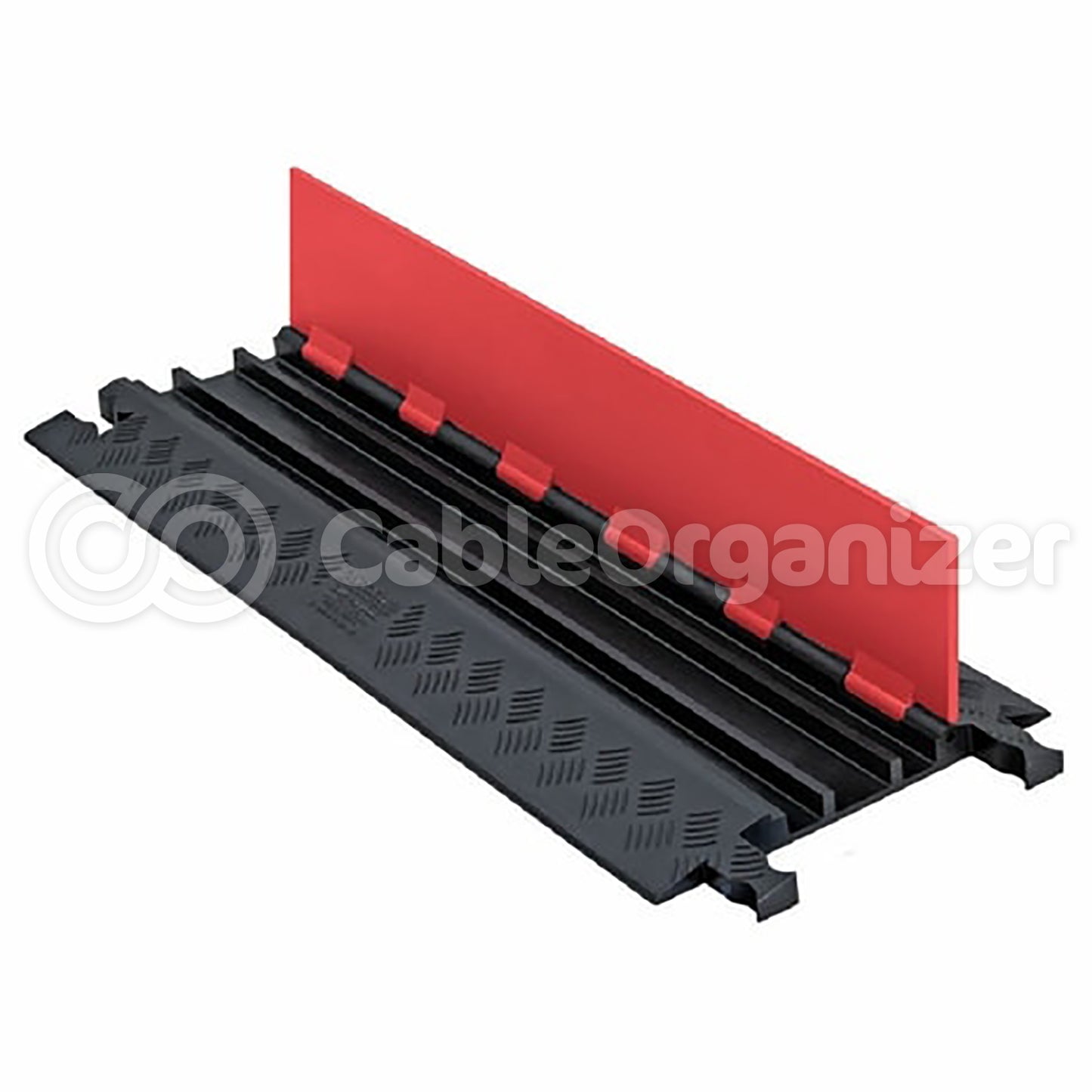

• guard dog® 3 channel low profile cable protector with lid open - icon
  • ada compliant guard dog® 3 channel low profile cable protector with lid open - icon
  • standard 3 channel guard dog®
  • cables in 3 channel guard dog®
  • standard multi-color 3 channel guard dog®
  • close up of ada compliant guard dog® 3 channel low profile cable protector with lid open - icon
  • ada compliant 3 channel protector
    • |||videoviewer>player|||

Guard Dog® 3 Channel Low Profile Standard and ADA Compliant Cable Protectors

Heavy Duty, Multi-Channel Floor Cable Protectors for High Traffic Applications

CK-GD3X75-ST-O/B
Qty:

What's special about these top-loading, low profile cable protectors?

  • 1.25” high, low profile design greatly reduces accidental tripping, while providing easy crossing for pedestrians, food carts, automobiles and much more.
  • Available with either compact low profile ramps, or with low-angle, ADA compliant ramps that provide a safe pathway over cables, so small children, elderly, and disabled pedestrians can cross effortlessly.
  • Durable 3 channel construction separates and protects multiple cable/hose lines (up to .75” in diameter) from abrasion, motor oil, gasoline, and diesel fuels.
  • Click for More Features

Cable management solutions become a necessity when heavy traffic is involved, whether it’s to prevent accidental tripping, or reduce the possibility of damage to delicate cable and hose lines.

Please Note: These products ship in 4-6 weeks

Standard Low Profile Cable Protectors
Part # Color Dimensions Weight Price
CK-GD3X75-ST-O/B Orange Lid Black Ramps 36" L x 13.9" W x 1.25" H 8.4 lbs
Qty:
Manufacturer Direct
CK-GD3X75-ST-B/B Black Lid Black Ramps 36" L x 13.9" W x 1.25" H 8.4 lbs
Qty:
Manufacturer Direct
Low Profile Cable Protectors with ADA Compliant Ramps
Part # Color Dimensions Weight Price
CK-GD3X75-O/B Orange Lid Black Ramps 36" L x 30.4" W x 1.25" H 19.3 lbs
Qty:
Manufacturer Direct
CK-GD3X75-B/B Black Lid Black Ramps 36" L x 30.4" W x 1.25" H 19.3 lbs
Qty:
Manufacturer Direct
CK-GD3X75-O/BLU Orange Lid Blue Ramps 36" L x 30.4" W x 1.25" H 19.3 lbs
Qty:
Manufacturer Direct

Guard Dog® Low Profile Standard and ADA Compliant Cable Protectors offer the ideal cable management solution for high traffic environments, such as fairgrounds, amusement parks, carnivals, and trade shows. These low profile cable guards feature an incredibly strong and long lasting polyurethane construction with an easy to use, top-side hinged lid for fast cable placement and access.



  • 5-bar tread plate provides excellent traction to help prevent slipping in case of unfavorable weather conditions or accidental liquid spills.
  • Potential danger warning symbols are molded into lid to withstand constant friction and provide clear indication of dangers present for crossing pedestrians.
  • ADA compliant ramps are available in black or high visibility blue, and feature ADA compliant symbols molded onto each ramp.
  • Strong polyurethane construction satisfies state and federal regulatory agencies.
  • Heavy-duty “Dog Bone” connectors securely interlock with multiple cable protectors for virtually limitless protection length.
  • Durable hinged cover with a reinforced fiberglass pin withstands heavy vehicle and machinery crossing.
  • High load capacity: 36,000 lb. per tire or 72,000 lb. per axle.
  • Modular interlocking design is easy to setup, breakdown, store and transport.
  • Meets NEC article 525 requirements.
  • Meets Americans with Disabilities Act guidelines for ADA accessibility.

    •

    low profile ADA ramp graphic
    Part # A
    Length    		 B
    Width    		 C
    Height    		 D
    Channel Width    		 E
    Channel Height    		 Weight COLOR
    CK-GD3X75-ST-O/B 36 in.
    (914.4 mm)    		 13.9 in.
    (353 mm)    		 1.25 in.
    (31.8 mm)    		 1.25 in.
    (31.8 mm)    		 .75 in.
    (19 mm)    		 12.2 lbs.
    (5.53 kg)    		 Orange Lid Black Ramps
    CK-GD3X75-ST-B/B 36 in.
    (914.4 mm)    		 13.9 in.
    (353 mm)    		 1.25 in.
    (31.8 mm)    		 1.25 in.
    (31.8 mm)    		 .75 in.
    (19 mm)    		 12.2 lbs.
    (5.53 kg)    		 Black Lid Black Ramps



    low profile ADA ramp graphic
    Model A
    Length    		 B
    Width    		 C
    Height    		 D
    Channel Width    		 E
    Channel Height    		 Weight COLOR
    CK-GD3X75-O/B 36 in.
    (914.4 mm)    		 30.4 in.
    (773 mm)    		 1.25 in.
    (31.8 mm)    		 1.25 in.
    (31.8 mm)    		 .75 in.
    (19 mm)    		 19.3 lbs.
    (8.8 kg)    		 Orange Lid Black Ramps
    CK-GD3X75-B/B 36 in.
    (914.4 mm)    		 30.4 in.
    (773 mm)    		 1.25 in.
    (31.8 mm)    		 1.25 in.
    (31.8 mm)    		 .75 in.
    (19 mm)    		 19.3 lbs.
    (8.8 kg)    		 Black Lid Black Ramps
    CK-GD3X75-O/BLU 36 in.
    (914.4 mm)    		 30.4 in.
    (773 mm)    		 1.25 in.
    (31.8 mm)    		 1.25 in.
    (31.8 mm)    		 .75 in.
    (19 mm)    		 19.3 lbs.
    (8.8 kg)    		 Orange Lid Blue Ramps



    Specification Data Load Capacity
    Channels Max Load 70 °F (21°C)
    Material Polyurethane (UV stabilized) 3 Channels Max Load at 70°F (21°C)
    Operating Temp. -40°F to 120°F (-40°C to 48°C) Per Tire 36,000 lbs. (16,330 kg)
    Hinge Pin Material Reinforced fiberglass Per Axle 72,000 lbs. (32,660 kg)
    Safety Symbols Per ANSI Z535.3-1991 Warnings
    Chemical Resistant Tested for compatibility with common motor oils, gasoline and diesel fuel.
    Limited resistance to brake fluids and other chemicals.    		 Symbols Molded into Lid    trip hazard symbolsymbol for electrical hazard
