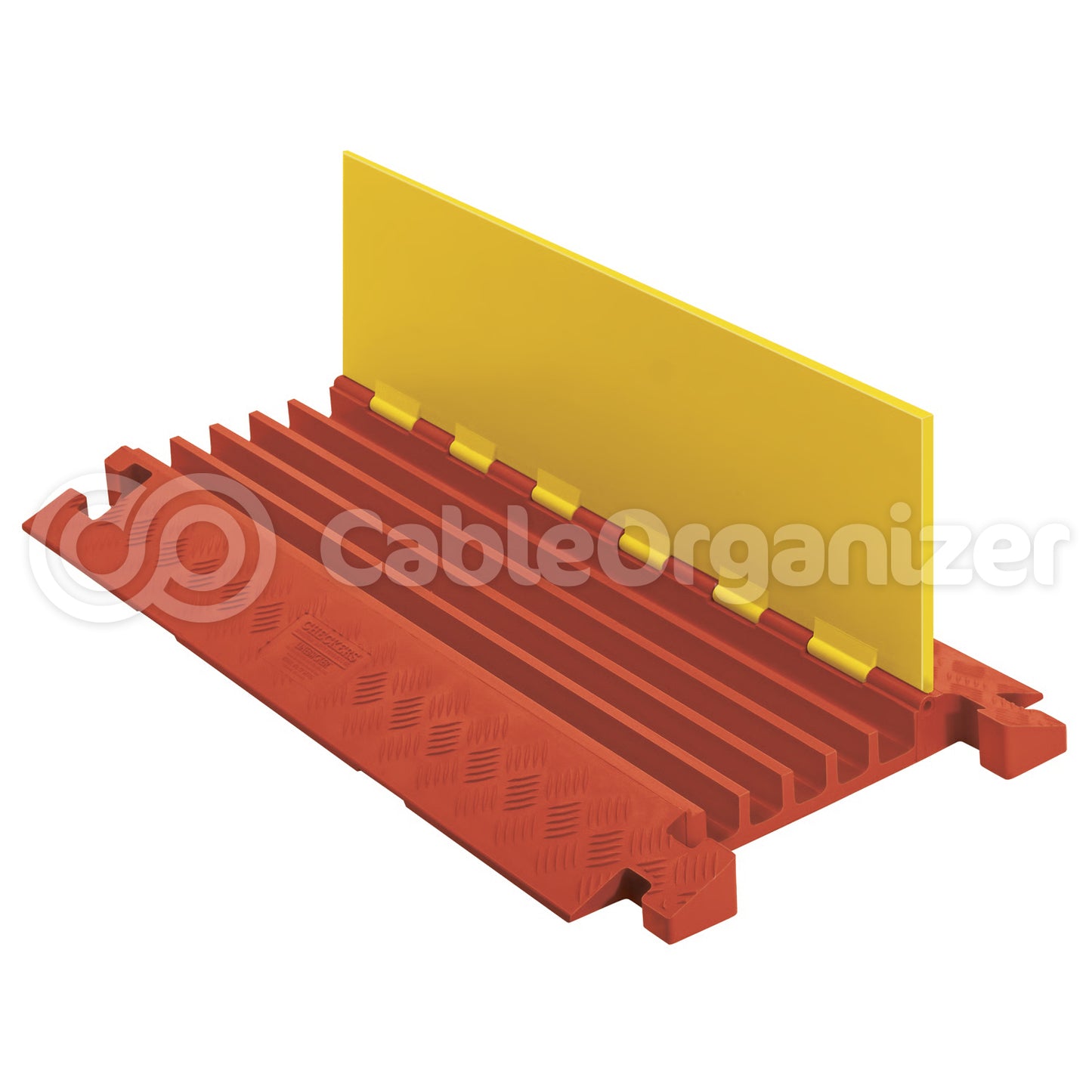

  • Linebacker® heavy duty five channel cable protector, lid opened - icon
  • 2channel protector with tubes under car
  • 3channel with hoses
  • 4channel with cable lines
    • |||videoviewer>player|||

Linebacker® Light Weight Cable Protector

Cable and Hose Protection for Industrial Applications

CPHD2X325
Qty:

What's special about these industrial cable covers?

  • This cable cover protects 2 to 5 cables from up to 40,300 lbs (per axle) of vehicle traffic.
  • Made of heavy duty polyurethane for use in all weather conditions.
  • Great for use in construction, oil & gas, military, festivals/events, and more.
  • Click for More Features

Heavy Duty Linebacker® Cable Protectors by Checkers Industrial® guarantee protection for your cables under the most brutal conditions. You name it: These protectors stand up to anything from pedestrians at the fair to the some of the most extreme utility vehicles.

*End caps and turns are not available for 2 channel Linebacker.

Part # Image Channels Maximum Cable Size (Per Channel) Dimensions Price
CPHD2X325 Linebacker® Light Weight Cable Protector CPHD2X325 2 3.25" 3' L x 22" W
Qty:
Manufacturer Direct
CPHD3X225 Linebacker® Light Weight Cable Protector CPHD3X225 3 2.25" 3' L x 20" W
Qty:
Manufacturer Direct
CPHD4X125 Linebacker® Light Weight Cable Protector CPHD4X125 4 1.35" 3' L x 20" W
Qty:
Manufacturer Direct
CP5XHD5-YO Linebacker® Light Weight Cable Protector CP5XHD5-YO 5 1.35" 3' L x 20" W
Qty:
Manufacturer Direct
End Caps
Part # Image Channels Maximum Cable Size (Per Channel) Dimensions Price
CPHDEC3X225 Linebacker® Light Weight Cable Protector CPHDEC3X225 3 2.25" 8.25" L x 20" W
Qty:
Manufacturer Direct
CPHDEC4X125 Linebacker® Light Weight Cable Protector CPHDEC4X125 4 1.35" 7.5" L x 20" W
Qty:
Manufacturer Direct
CPEC-HD5 Linebacker® Light Weight Cable Protector CPEC-HD5 5 1.35" 5.25" L x 20" W
Qty:
Quick Ship
45° Right Turn
Part # Image Channels Maximum Cable Size (Per Channel) Dimensions Price
CPHD3X225R Linebacker® Light Weight Cable Protector CPHD3X225R 3 2.25" 25" L x 20" W
Qty:
Manufacturer Direct
CPHD4X125R Linebacker® Light Weight Cable Protector CPHD4X125R 4 1.35" 25" L x 20" W
Qty:
Manufacturer Direct
CPHD5X125R Linebacker® Light Weight Cable Protector CPHD5X125R 5 1.35" 25" L x 20" W
Qty:
Manufacturer Direct
45° Left Turn
Part # Image Channels Maximum Cable Size (Per Channel) Dimensions Price
CPHD3X225L Linebacker® Light Weight Cable Protector CPHD3X225L 3 2.25" 25" L x 20" W
Qty:
Manufacturer Direct
CPHD4X125L Linebacker® Light Weight Cable Protector CPHD4X125L 4 1.35" 25" L x 20" W
Qty:
Manufacturer Direct
CPHD5X125L Linebacker® Light Weight Cable Protector CPHD5X125L 5 1.35" 25" L x 20" W
Qty:
Manufacturer Direct
  • Turns and end caps are available to effectively route and finish your installation professionally.
  • Patented T-connectors allow you to extend to any length you want just by adding more units.
  • Hinged lid makes it easy to place and remove cables.
  • Light weight with built-in carry handle makes it easy to set up and transport.
  • Proudly made in the USA USA

    • Ideal for:

  • Auditoriums
  • Construction Sites
  • Exhibit Halls
  • Racetracks
  • Motion Picture / Television Industry
  • Amusement Parks / Fairs
  • Convention Centers
  • Amphitheaters
  • Festivals
  • Arenas

    • top dimensions of linebacker® left and right turn dimensions

    end cap and cut-away dimensions

    Model Description A
    Length    		 B
    Width    		 C
    Height    		 D
    Channel Width    		 E
    Channel Height    		 Weight
    5 Channel Specs
    CP5XHD5-YO 5-Channel Cord Protector 36" (914.4mm) 20" (508mm) 2.31" (57.2mm) 1.25" (31.8mm) 1.25" (31.8mm) 25 lbs (11.3 kg)
    CPEC-HD5 End Caps (female) 7.5" (190.5mm) 20" (508mm) 2.31" (57.2mm) 1.25" (31.8mm) 1.25" (31.8mm) 3.5 lbs (1.6 kg)
    End Caps (male) 5.25" (133.4mm) 20" (508mm) 2.31" (57.2mm) 1.25" (31.8mm) 1.25" (31.8mm) 3.5 lbs (1.6 kg)
    CPHD5X125R 45° Right Turn 25" (635mm) 20" (508mm) 2.31" (57.2mm) 1.25" (31.8mm) 1.25" (31.8mm) 13 lbs. (5.9kg)
    CPHD5X125L 45° Left Turn 25" (635mm) 20" (508mm) 2.31" (57.2mm) 1.25" (31.8mm) 1.25" (31.8mm) 13 lbs. (5.9kg)
    4 Channel Specs
    CPHD4X125 4-Channel Cord Protector 36" (914.4mm) 20" (508mm) 2.31" (57.2mm) 2" (50.8mm) 1.25" (31.8mm) 26 lbs (11.8kg)
    CPHDEC4X125 End Caps (female) 7.5" (190.5mm) 20" (508mm) 2.31" (57.2mm) 2" (50.8mm) 1.25" (31.8mm) 3.5 lbs (1.6 kg)
    End Caps (male) 5.25" (133.4mm) 20" (508mm) 2.31" (57.2mm) 2" (50.8mm) 1.25" (31.8mm) 3.5 lbs (1.6 kg)
    CPHD4X125R 45° Right Turn 25" (635mm) 20" (508mm) 2.31" (57.2mm) 2" (50.8mm) 1.25" (31.8mm) 13 lbs. (5.9kg)
    CPHD4X125L 45° Left Turn 25" (635mm) 20" (508mm) 2.31" (57.2mm) 2" (50.8mm) 1.25" (31.8mm) 13 lbs. (5.9kg)
    3 Channel Specs
    CPHD3X225 3-Channel Cord Protector 36" (914.4mm) 20" (508mm) 3.05" (77.5mm) 2.25" (57.2mm) 2.25" (57.2mm) 28 lbs (12.7 kg)
    CPHDEC3X225 End Caps (female) 8.25" (209.6mm) 20" (508mm) 3.05" (77.5mm) 2.25" (57.2mm) 2.25" (57.2mm) 4 lbs. (1.8 kg)
    End Caps (male) 6" (152.4mm) 20" (508mm) 3.05" (77.5mm) 2.25" (57.2mm) 2.25" (57.2mm) 4 lbs. (1.8 kg)
    CPHD3X225R 45° Right Turn 25" (635mm) 20" (508mm) 3.05" (77.5mm) 2.25" (57.2mm) 2.25" (57.2mm) 15 lbs. (6.8 kg)
    CPHD3X225L 45° Left Turn 25" (635mm) 20" (508mm) 3.05" (77.5mm) 2.25" (57.2mm) 2.25" (57.2mm) 15 lbs. (6.8 kg)
    2 Channel Specs
    CPHD2X325 2-Channel Cord Protector 36" (914.4mm) 22" (558.8 mm) 4.13" (101.6 mm) 3.25" (82.6 mm) 3.25" (82.6 mm) 33 lbs (15 kg)



    Specification Data Load Capacity
    Channels Max Load 70°F (21°C)
    Material Polyurethane (UV stabilized) 5 Channel 20,150 lbs per tire
    40,300 lbs per axle
    Operating Temp. -40°F to 120°F (-40°C to 48°C) 4 Channel 20,150 lbs per tire
    40,300 lbs per axle
    Hinge Pin Material Reinforced fiberglass 3 Channel 14,210 lbs per tire
    28,420 lbs per axle
    Safety Symbols Per ANSI. Z535.3-1991 2 Channel 10,880 lbs per tire
    21,760 lbs per axle



    PART # NATIONAL STOCKING # (NSN)
    CP5HD5-YO 5975-01-469-0892
    CPEC-HD5 5975-01-469-0529
    CPHD5X125R 5975-01-469-2083
    CPHD5X125L 5975-01-469-0530
    CPHD4X125 5975-01-496-5269
    CPHDEC4X125 5975-01-496-5490
    CPHD4X125R 5975-01-496-5491
    CPHD4X125L 5975-01-496-5492
    CPHD3X225 5975-01-496-5495
    CPHDEC3X225 5975-01-496-5496
    CPHD3X225R 5975-01-496-5500
    CPHD3X225L 5975-01-496-5502
    CPHD2X325 5975-01-496-5191
