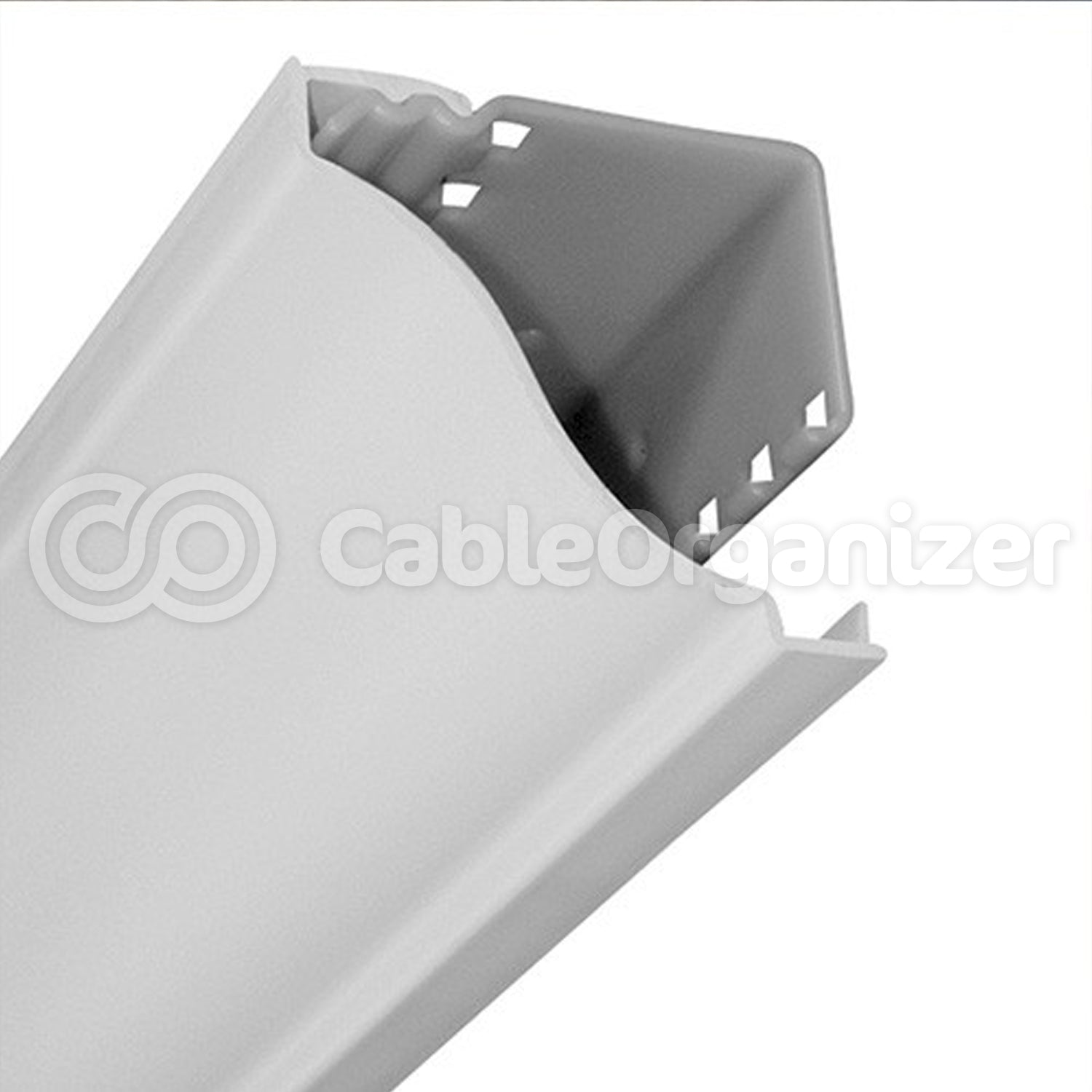

Raceway Crown™ Molding Surface
The Wire Management Solution that Cleans Up a Royal Mess
What's special about this home theater raceway?
- The 7in2 interior provides a lot of space for hiding low-voltage household cables used for home theater, satellite/cable, Ethernet and lighting while protecting cables from damage.
- Beautiful classic crown molding design makes it almost identical to traditional wood molding when installed in your home or office.
- Easy installation of the surface raceway using only a few screws requires no precise measuring, miter cuts, nails, or adhesives.
- The prefinished semi-gloss white PVC complements any home or office but is easily painted to complement any décor.
- Click for More Features
This Raceway Crown is designed to protect and conceal low voltage wires, cables, data, voice, and fiber optic. It is easily mounted to your wall and ceiling and has plenty of support by optional cable clips or other methods that are available to maximize the raceway area. The unique design adds an elegant finish to any room interior in your home or office. The raceway comes in white and is resistant to scratching, dents, peeling, and corrosion.
| Santa Barbara | ||||
|---|---|---|---|---|
| Part # | Description | Color | Pack | Price |
| RWC-SBEZ94 | 4-3/4" S.B Profile Molding with 4 Brackets (94.5" in Length") | White | 1 Pack | Manufacturer Direct
|
| RWC-SBEZC | 4-3/4" S.B. Profile-Coping (Inside) Corner | White | 1 Pack or 4 Pack | Manufacturer Direct
|
| RWC-SBEZKS | 4-3/4" S.B. Profile-Keystone (Joint Covers) | White | 1 Pack or 4 Pack | Manufacturer Direct
|
| RWC-SBEZR/LR | 4-3/4" S.B. Profile-End Caps (Set) - Left and Right Return | White | 1 Pack | Manufacturer Direct
|
| RWC-SBOC90 | 4-3/4" S.B. Profile-Outside 90 Corner | White | 1 Pack | Manufacturer Direct
|
| Classic Colonial | ||||
|---|---|---|---|---|
| Part # | Description | Color | Pack | Price |
| RWC-CCEZ94 | 5-3/4" C.C Profile Modilg with 4 Brackets (94.5" in Length) | White | 1 Pack or 12 Pack | Manufacturer Direct
|
| RWC-CCEZKS | 5-3/4" C.C. Profile Keystone (Joint Covers) | White | 1 Pack or 4 Pack | Manufacturer Direct
|
| RWC-CCOC90 | 5-3/4" C.C. Profile-Outside 90 Corner | White | 1 Pack | Manufacturer Direct
|
| RWC-CCEZR/LR | 5-3/4"C.C. Profile End Caps (Set) - Left and Right Return | White | 1 Pack | Manufacturer Direct
|
| RWC-CCEZC | 5-3/4" C.C. Profile Coping (Inside) Corner | White | 1 Pack | Manufacturer Direct
|
| Accessories | ||||
|---|---|---|---|---|
| Part # | Description | Color | Pack | Price |
| RWC-Cable Clip-4 | Raceway Crown Universal Cable Clip -4 Pack | White | 4 Pack | Manufacturer Direct
|
| Property | Value |
|---|---|
| Color | White |
| Material | Rigid Polyvinyl Chloride |
| Industry Standards | UL94V-0 UL 94 HB |
| Patent Number | 7451574 |
| Country of Origin | USA |
Manuals
Related Articles
How-To Corner
Request A Quote
Did you know that we can give you a quote for most of our products, including shipping?
You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)
Questions & Answers
After initial installation, is the molding removable to install additional cables?
- Hello, The molding is removable to install more cables.
i want to install this product, however i need to know the temperature rating. where i will be installing has radiator heat and i have a pipe that runs up thru the ceiling to the next floor, it gets quite hot during the winter when the upstairs calls for heat, being a PVC product, i do not want to melt or have it start sagging or worse start burning. I will tell you that i am replacing an old crown molding that is wood that had a hole thru which the pipe ran.
- Hello, The melting point of this raceway is 350 degree F
How far does this molding project out from the wall?
- Hello, At the top, the bracket that attaches to the wall and the crown molding come out 3.25" from the wall. The crown molding from the top to the bottom measures 5.83" and at the bottom, the crown molding comes out approximately 2.02". If you would like to visually see what I am explaining, please click on the MANUALS tab in the middle of the page and then click on Crown Molding Surface Raceway Specifications Hope this helps
I the pvc raceway UV stable - could it be used outside on the porch?
- Hello, This raceway is not rated for out door use
