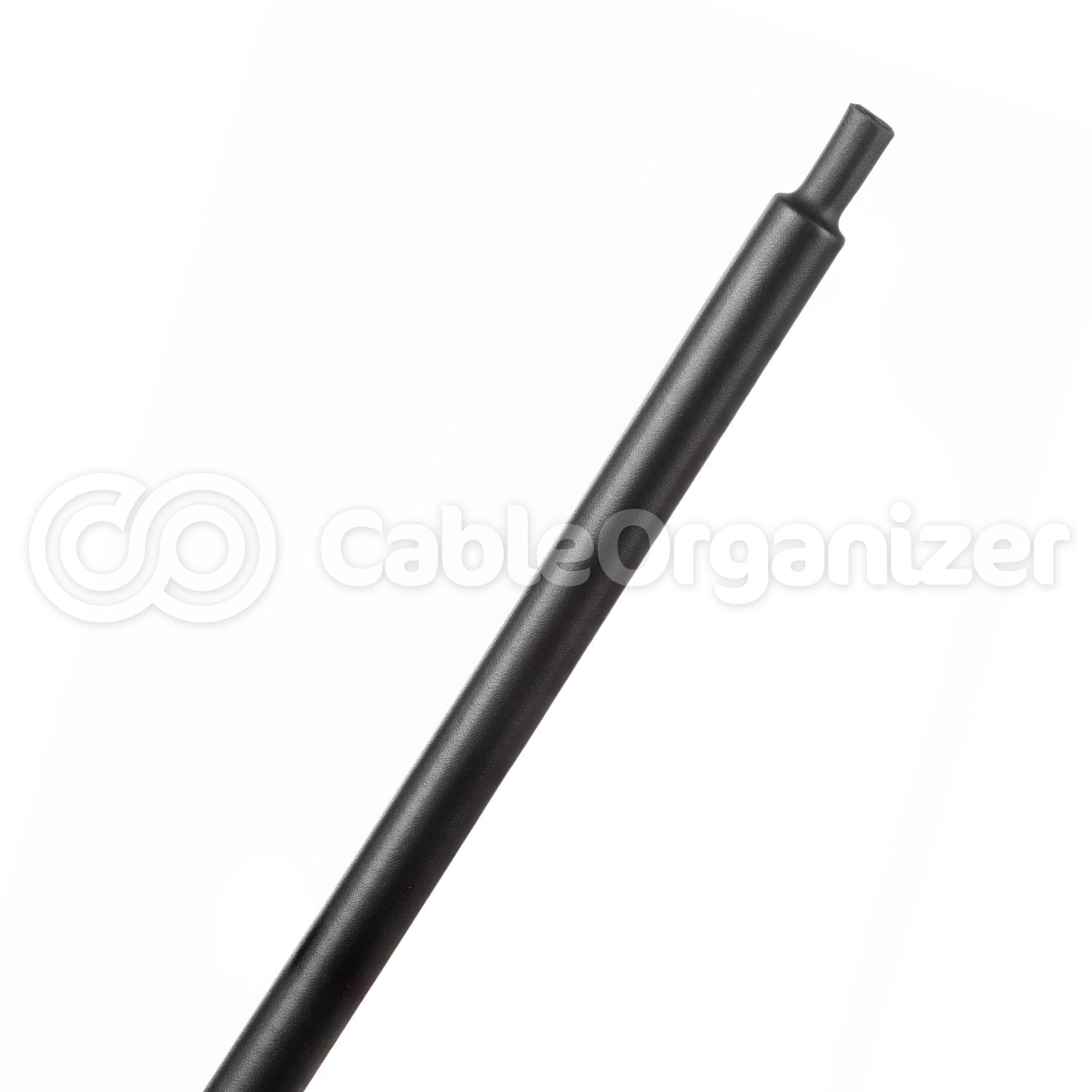

Viton® Heat-Shrinkable Tubing
Extreme Protection for Military & Commercial Aircraft Applications
What's special about Viton Heat Shrink?
- High operating temperature (392° F / 200° C) for extreme working conditions.
- Superior protection from highly corrosive acids, fluids, fuels, & solvents keep wire bundles, harnesses, and components safe in aircraft or other machines.
- Meets MIL-DTL-23053/13 and AMS-DTL-23053/13B specifications.
- Protects from abrasion, impacts, & cut-throughs, and flexibility at high and low temperatures, means Viton can be used in almost any aerospace, military, commercial, or industrial application.
- Click for More Features
Custom Sizes and Cut Pieces are NON-RETURNABLE and NON-REFUNDABLE
| Part # | Nominal Size | Size After Shrinking | Spool Length | Color | Price |
|---|---|---|---|---|---|
| HSVIT-0125-SP | 0.125" | 0.062" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-025-SP | 0.250" | 0.125" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-0375-SP | 0.375" | 0.187" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-050-SP | 0.500" | 0.250" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-0625-SP | 0.625" | 0.312" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-075-SP | 0.750" | 0.375" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-0875-SP | 0.875" | 0.437" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-100-SP | 1.000" | 0.500" | 100 ft. | Black | Manufacturer Direct
|
| HSVIT-125-SP | 1.250" | 0.625" | 50 ft. | Black | Manufacturer Direct
|
| HSVIT-150-SP | 1.500" | 0.750" | 50 ft. | Black | Manufacturer Direct
|
| HSVIT-200-SP | 2.000" | 1.000" | 50 ft. | Black | Manufacturer Direct
|
Viton Heat Shrink Technical Specifications
Military Specifications and a manufacturers' cross reference
Viton® is a flexible rubber-like fluoroelastomer heat-shrinkable tubing used for protecting wiring, bundling, harnessing and component covers in military and commercial aircraft. It has a superior resistance to highly corrosive fluids, fuels, lubricants, acids and aggressive solvents at low and elevated temperatures up to 200°C. It also provides protection from abrasion, impacts, cut-throughs. It is very flexible at high and low temperatures.
| NOMINAL SIZE | EXPANDED | RECOVERED | |
| Internal Diameter Min. (D) |
Internal Diameter Max. (D) |
Min.Total Wall Thickness (T) |
|
| 1/8" | 0.125" [3.2mm] | 0.062" [1.6mm] | 0.031" [0.80mm] |
| 3/16" | 0.187" [4.8mm] | 0.093" [2.4mm] | 0.035" [0.90mm] |
| 1/4" | 0.250" [6.4mm] | 0.125" [3.2mm] | 0.035" [0.90mm] |
| 3/8" | 0.375" [9.6 5mm] | 0.187" [4.8mm] | 0.035" [0.90mm] |
| 1/2" | 0.500" [12.7mm] | 0.250" [6.4mm] | 0.035" [0.90mm] |
| 5/8" | 0.625" [15.9mm] | 0.312" [7.9mm] | 0.042" [1.10mm] |
| 3/4" | 0.750" [19.1mm] | 0.375" [9.5mm] | 0.042" [1.10mm] |
| 7/8" | 0.875" [22.2mm] | 0.437" [11.1mm] | 0.049" [1.20mm] |
| 1" | 1.000" [25.4mm] | 0.500" [12.7mm] | 0.049" [1.20mm] |
| 1-1/4" | 1.250" [31.8mm] | 0.625" [15.9mm] | 0.055" [1.40mm] |
| 1-1/2" | 1.500" [38.1mm] | 0.750" [19.1mm] | 0.055" [1.40mm] |
| 2" | 2.000" [50.8mm] | 1.000" [25.4mm] | 0.065" [1.70mm] |
Specification Values
|
PROPERTY
|
TEST METHOD
|
VALUE
|
|
| Physical | Elongation | 300% | |
|---|---|---|---|
| Tensile strength (psi) | ASTM D638 | 1200 min. | |
| Elongation (%) | ASTM D638 | Min. 250% | |
| Tensile strength@ 200% elongation (psi) | ASTM D412 | 2000 max. | |
| Heat shock (300°C, 4 hrs.) | MIL / AMS-DTL-23053 | No cracking, no dripping | |
| Cold impact (-40°C, 4 hrs.) | ASTM D746 | No cracking | |
| Heat resistance (250°C, 168 hrs.) |
ASTM D638 | 200 min. | |
| Elongation (%) | ASTM D638 | 200 min. | |
| Tensile Strength (psi) | ASTM D638 | 1200 min. | |
| Longitudinal change (%) | MIL-DTL-23053 | -20 max. | |
| Specific Gravity | - | 1.9 | |
| Electrical | Dielectric strength(Volts/mil) | ASTM D876 | 200 vpm min. |
| Volume resistivity (Ω - cm) | ASTM D876 | Min. 1x10¹¹Ω - cm | |
| Chemical | Min Copper mirror corrosion (175°C, 16 hrs.) |
MIL-DTL-23053 | No corrosion |
| Fungus resistance | - | Non-nutrient | |
| Water absorption (%) | ASTM D570 | 0.5 max. | |
| Fluid resistance (23°C, 24 hrs) | |||
| Tensile strength (psi) | MIL-DTL-23053 | 1200 min. | |
| Elongation | AMS-DTL-23053 | 250 min. | |
| Flammability | AMS-DTL-23053 | 15 sec. max. | |
Related Articles
How-To Corner
Limiting Oxygen Index (LOI)
The ratio of how much oxygen - as compared to other gases - needs to be present in the air surrounding a particular material in order for that material to burn. The fact that Earth's normal atmospheric air contains around 21% oxygen is used a reference point when materials are classified into burn categories that are based on Limiting Oxygen Index. Substances that are combustible in air containing less than 21% oxygen are considered flammable, while those that burn in the range of anything greater than 21% but less than 28% are typically labeled "slow burning". Any material with an LOI that exceeds 28% is classified as self-extinguishing.
In the table below, you'll find a list of polymers commonly found in our heat shrink tubing and braided sleeving products, along with their LOIs and the burn categories each falls into.
| MATERIAL | ALTERNATE NAME | LOI | CATEGORY |
|---|---|---|---|
| ECTFE (Ethylene chlorotrifluoroethylene) | Halar | 64% | Self Extinguishing |
| Nomex | N/A | 28% | Slow Burning |
| Nylon 6:6 | N/A | Ranges fron 24-29% | Slow Burning to Self Extinguishing |
| PET (Polyethylene Terephthalate) | Mylar (film), Dacron (fiber) | Ranges from 21-34% | Slow Burning to Self Extinguishing |
| Polyethylene (PE) | N/A | 17% | Flammable |
| Polypropylene (PP) | polythene (in the UK) | 17% | Flammable |
| Polytetrafluoroethylene (PTFE) | Teflon | 95% | Self Extinguishing |
| Polyvinyl Chloride (PVC) | N/A | Ranges from 45-49% | Self Extinguishing |
