What's special about these cable ties?
- Identification plate feature allows bundles to be easily marked and identified.
- UV stabilized cable ties provide excellent resistance to UV exposures.
- Wire and cable harnesses can be secured and identified using just one product, which saves time.
- Plates can be marked manually with a permanent marker or with a pre-printed adhesive label.
- Complies with, Class 1 and SAE-AS33681.
Identification Cable Ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label. Specially manufactured to comply with Class 1 and SAE-AS33681.
| Part # | Description | Length | Tensile Strength | Material / Color / Qty. | Price |
|---|---|---|---|---|---|

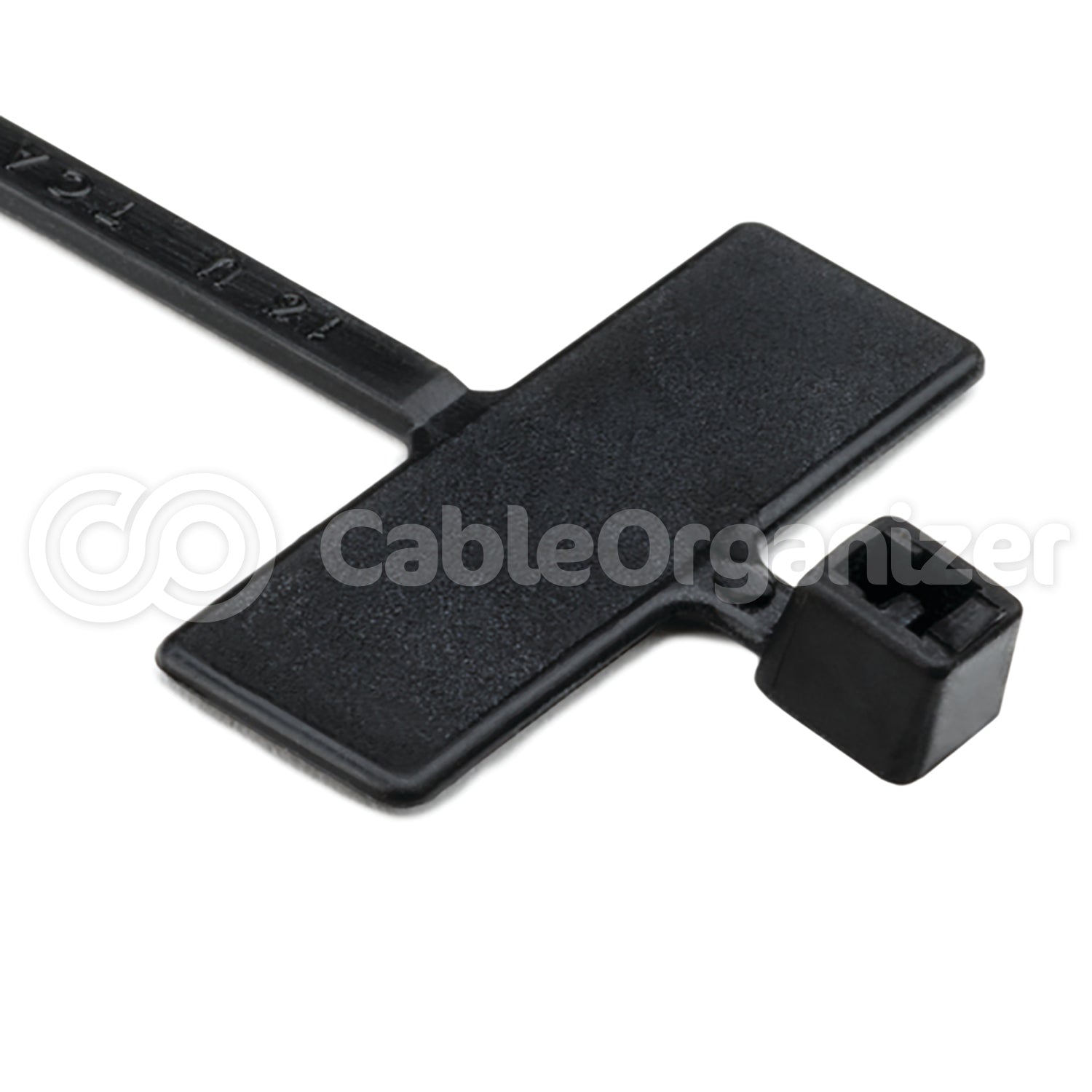

| HT-IT18R0UVC2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66UV, Black, 100/pkg | Quick Ship
|
| HT-IT18R2L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Red, 200/pkg | Quick Ship
|
| HT-IT18R3L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Orange, 200/pkg | Quick Ship
|
| HT-IT18R4L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Yellow, 200/pkg | Quick Ship
|
| HT-IT18R5C2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Green, 100/pkg | Quick Ship
|
| HT-IT18R6L4 | MilSpec Identification Tie MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Blue, 200/pkg | Quick Ship
|
| HT-IT18R8C2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Gray, 100/pkg | Quick Ship
|
| HT-IT18R9L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Natural, 200/pkg | Quick Ship
|
| HT-IT50R2C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Red, 100/pkg | Quick Ship
|
| HT-IT50R3M4 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Orange, 1000/pkg | Quick Ship
|
| HT-IT50R4C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 100/pkg | Quick Ship
|
| HT-IT50R9C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 100/pkg | Quick Ship
|
| HT-IT50RD0UVK2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66UV, Black, 50/pkg | Quick Ship
|
| HT-IT50RD4K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 50/pkg | Quick Ship
|
| HT-IT50RD9K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 50/pkg | Quick Ship
|
| HT-IT50RT0UVK2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66UV, Black, 50/pkg | Quick Ship
|
| HT-IT50RT4K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 50/pkg | Quick Ship
|

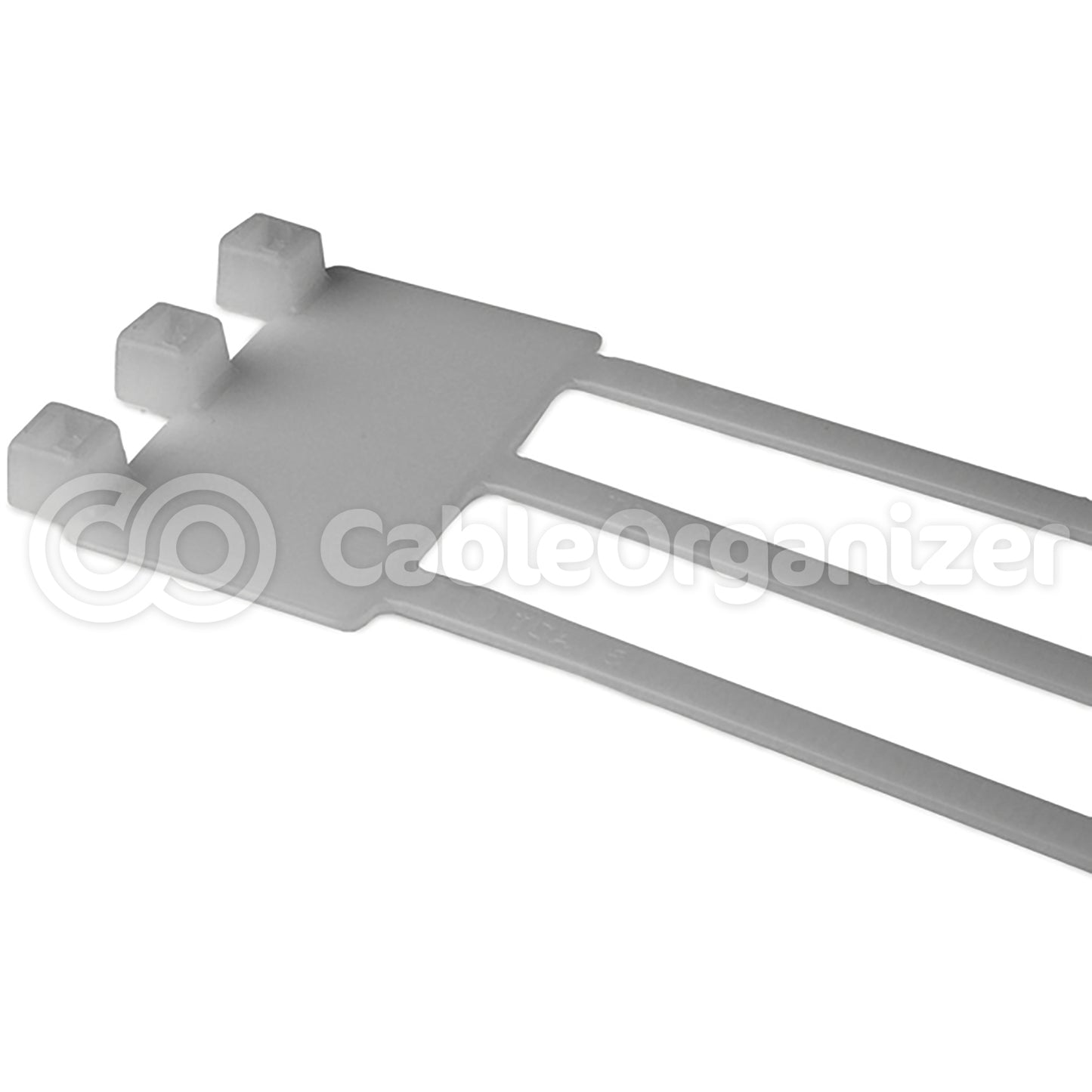

| HT-IT50RT9K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 50/pkg | Quick Ship
|
| HT-IT50L3M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Orange, 1000/pkg | Quick Ship
|
| HT-IT50L4M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Yellow, 1000/pkg | Quick Ship
|
| HT-IT50L6M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Blue, 1000/pkg | Quick Ship
|
| HT-IT50L9C2 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Natural, 100/pkg | Quick Ship
|
| Part # | Description | Length | Tensile Strength | Color / Material / Qty. | Bundle Diameter (Imperial) | Flammability | Operating Temp. | UV Resistant | Reach Compliant | US MIL SPEC |
|---|---|---|---|---|---|---|---|---|---|---|
| HT-IT18R0UVC2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66UV, Black, 100/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | Yes | No | MS3368-5-0E, Class 1 SAE-AS33681 |
| HT-IT18R2L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Red, 200/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-5-2E, Class 1 |
| HT-IT18R3L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Orange, 200/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | MS3368-5-3E, Class 1 SAE-AS33681 |
| HT-IT18R4L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Yellow, 200/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-5-4E, Class 1 |
| HT-IT18R5C2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Green, 100/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | MS3368-5-5E, Class 1 SAE-AS33681 |
| HT-IT18R6L4 | MilSpec Identification Tie MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Blue, 200/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-5-6E, Class 1 |
| HT-IT18R8C2 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Gray, 100/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-5-8E, Class 1 |
| HT-IT18R9L4 | MilSpec Identification Tie, MS3368 | 3.9" Long | 18lb Tensile Strength | PA66, Natural, 200/pkg | 0.19 - 0.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | MS3368-5-9E, Class 1 SAE-AS33681 |
| HT-IT50R2C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Red, 100/pkg | 0.37 - 1.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | MS3368-1-2A, Class 1 SAE-AS33681 |
| HT-IT50R3M4 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Orange, 1000/pkg | 0.37 - 1.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-1-3A, Class 1 |
| HT-IT50R4C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 100/pkg | 0.37 - 1.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-1-4A, Class 1 |
| HT-IT50R9C2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 100/pkg | 0.37 - 1.75 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | Yes | SAE-AS33681 MS3368-1-9A, Class 1 |
| HT-IT50RD0UVK2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66UV, Black, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | Yes | No | MS3368-3-0C, Class 1 SAE-AS33681 |
| HT-IT50RD4K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-3-4C, Class 1 |
| HT-IT50RD9K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | Yes | SAE-AS33681 MS3368-3-9C, Class 1 |
| HT-IT50RT0UVK2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66UV, Black, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | Yes | No | SAE-AS33681 MS3368-4-0D, Class 1 |
| HT-IT50RT4K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Yellow, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-4-4D, Class 1 |
| HT-IT50RT9K2 | MilSpec Identification Tie, MS3368 | 8" Long | 50lb Tensile Strength | PA66, Natural, 50/pkg | 0.39 - 1.73 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | Yes | SAE-AS33681 MS3368-4-9D, Class 1 |
| HT-IT50L3M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Orange, 1000/pkg | 0.75 - 3.94 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | MS3368-2-3A, Class 1 SAE-AS33681 |
| HT-IT50L4M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Yellow, 1000/pkg | 0.75 - 3.94 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-2-4A, Class 1 |
| HT-IT50L6M4 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Blue, 1000/pkg | 0.75 - 3.94 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | No | SAE-AS33681 MS3368-2-6A, Class 1 |
| HT-IT50L9C2 | MilSpec Identification Tie, MS3368 | 15.4" Long | 50lb Tensile Strength | PA66, Natural, 100/pkg | 0.75 - 3.94 | UL 94 V-2 | -40°F to +185°F (-40°C to +85°C) | No | Yes | MS3368-2-9A, Class 1 SAE-AS33681 |
