What's special about these cable ties?
- Head allows for a 0.2" lateral adjustment on stud during installation.
- Quick and easy installation ideal for manufacturing environment.
- Oval mount design pushes on easy by hand without the need for tools.
- Design provides low insertion and high extraction force.

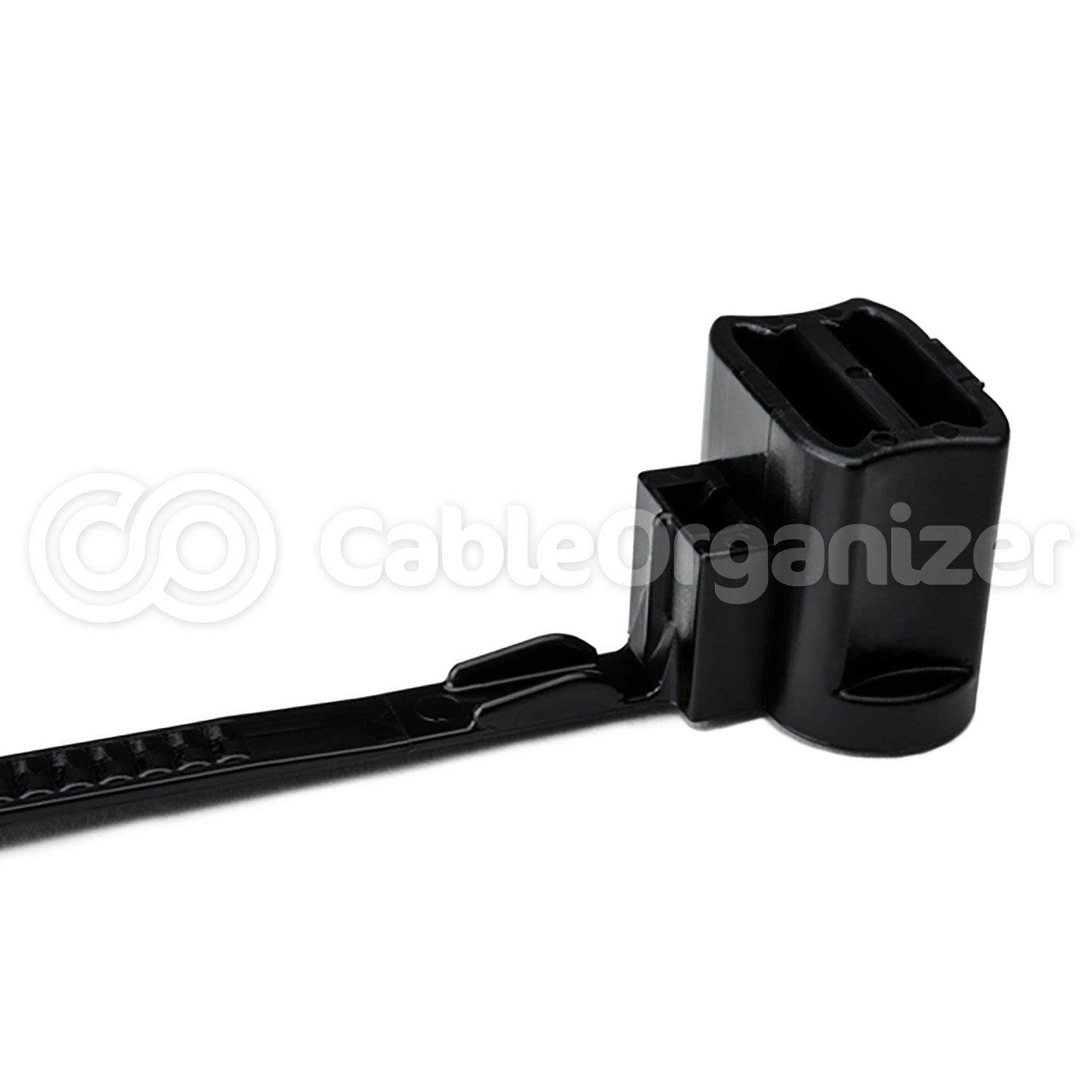

Oval Shaped Stud Mount's special design allows for a 0.2" (5.5 mm) lateral adjustment, allowing for any misalignment of the stud or incorrect position of the tie on the cables. The mount allows it to be installed onto a weld stud without the use of any tools.
| 1 Piece | ||||
|---|---|---|---|---|
| Part # | Description | Dimensions | Material / Color / Qty. | Price |
| HT-157-00105 | 1-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 6.6" Long | PA66HS, Black, 3000/pkg | Quick Ship
|
| HT-157-00106 | 1-Pc Cable Tie/Oval Stud Mount, Without Thumb Bar | 6.6" Long | PA66HS, Black, 3000/pkg | Quick Ship
|
| HT-157-00151 | 1-Pc Cable Tie/Oval Stud Mount, Designed for 5.0 - 6.0 mm stud | 6.0" Long | PA66HS, Gray, 1000/bag | Quick Ship
|
| HT-155-05400 | 1-Pc Cable Tie/Oval Stud Mount, Designed for 5.0 mm stud | 6.0" Long | PA66HS, Black, 500/pkg | Quick Ship
|
| HT-155-46302 | 1-Pc Cable Tie/Oval Stud Mount, Designed for 6.0 mm stud | 6.0" Long | PA66HS, Black, 500/pkg | Quick Ship
|
| 2 Piece | ||||
|---|---|---|---|---|
| Part # | Description | Dimensions | Material / Color / Qty. | Price |
| HT-156-01295 | 2-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 8.0" Long | PA66HIRHS, Black, 2000/box | Quick Ship
|
| HT-156-01296 | 2-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 8.0" Long | PA66HIRHS, Black, 2000/box | Quick Ship
|
| Part # | Description | Length | Material, Color, Qty. | Strength (Imperial) | Fixation Method | Bundle Diameter (Imperial) | Stud Diameter (Imperial) | Flammability | Operating Temp. | UV resistnat | Reach Compliant (Article 33) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HT-157-00105 | 1-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 6.6" Long | PA66HS, Black, 3000/pkg | 50 | Weld Stud Fixing | .04 - 1.38 | 0.20 | UL 94 V-2 | -40°F to +257°F (-40°C to +125°C) | No | No |
| HT-157-00106 | 1-Pc Cable Tie/Oval Stud Mount, Without Thumb Bar | 6.6" Long | PA66HS, Black, 3000/pkg | 50 | Weld Stud Fixing | .04 - 1.38 | 0.20 | UL 94 V-2 | -40°F to +257°F (-40°C to +125°C) | No | No |
| HT-157-00151 | 1-Pc Cable Tie/Oval Stud Mount | 6.0" Long | PA66HS, Gray, 1000/bag | 50 | Weld Stud Fixing | .04 - 1.38 | 0.20, 0.24 | UL 94 V-2 | -40°F to +257°F (-40°C to +125°C) | No | No |
| HT-155-05400 | 1-Pc Cable Tie/Oval Stud Mount | 6.0" Long | PA66HS, Black, 500/pkg | 50 | Weld Stud Fixing | .04 - 1.4 | 0.2 | UL 94 V-2 | -40°F to +221°F (-40°C to +105°C) | No | Yes |
| HT-155-46302 | 1-Pc Cable Tie/Oval Stud Mount | 6.0" Long | PA66HS, Black, 500/pkg | 50 | Weld Stud Fixing | .04 - 1.4 | 0.24 | UL 94 V-2 | -40°F to +221°F (-40°C to +105°C) | No | Yes |
| HT-156-01295 | 2-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 8.0" Long | PA66HIRHS, Black, 2000/box | 25 | Weld Stud Fixing | .16 - 1.97 | M6 (Metric) | - | -40°F to +221°F (-40°C to +105°C) | No | Yes |
| HT-156-01296 | 2-Pc Cable Tie/Oval Stud Mount, With Thumb Bar | 8.0" Long | PA66HIRHS, Black, 2000/box | 50 | Weld Stud Fixing | .16 - 1.97 | M6 (Metric) | - | -40°F to +221°F (-40°C to +105°C) | No | Yes |
