Bentley Harris® Expando® PT Plus- Expandable Sleeving

Expandable Polyester Sleeving That Will Not Fray During Installation or Use


BSBHPTP-0375
Qty:

What's special about the Bentley Harris Expando®?

  • Excellent cut through and abrasion resistance.
  • Operating temperature ranges from -103° F to 257° F (-75° C to 125° C)
  • Tough, lightweight oversleeves protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading.
  • Open-weave construction of Expando products enables each size to expand to fit several application shapes and sizes.
  • Open-weave construction also makes them highly flexible and resistant to trapping water, heat and humidity.
  • UL recognized component
  • Applications in the aeronautical, marine, electronic and general manufacturing industries
  • All Bentley Harris products are RoHS compliant and have an indefinite shelf life. ISO 14001 & TS16949 certified.
  • Click for More Features
  •
  • RoHS Compliant

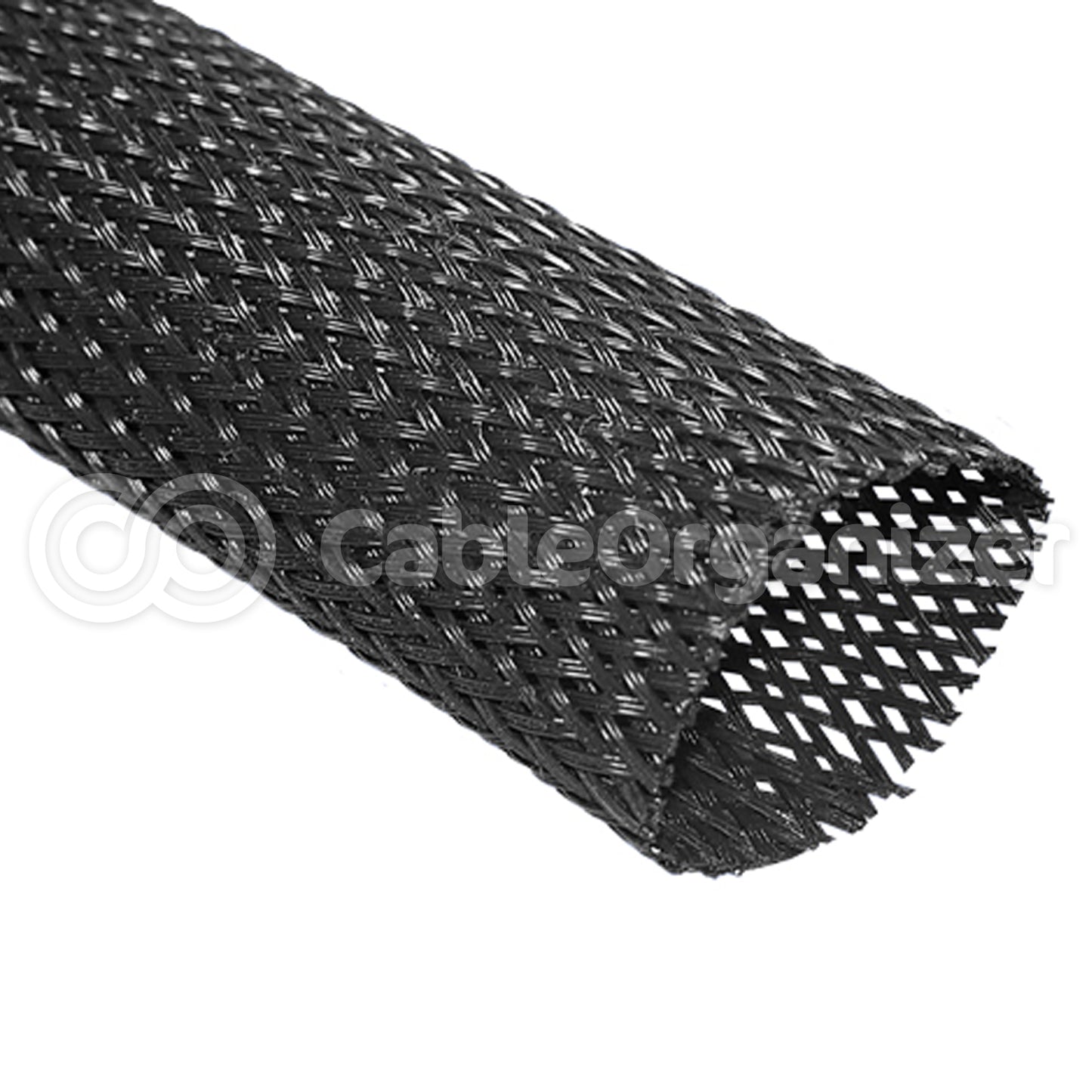

Expando® PT Plus is a braided polyester (PET) sleeving designed for applications up to 125º C. A general purpose industrial/commercial product, Expando PT Plus balances the properties of mechanical and thermal stability with economy.

Please Note: These products ship within 5 weeks
Standard color is black. For any other color please call

Part # Nominal Size Min. Diameter Max. Diameter Color Feet / Spool Price
BSBHPTP-0375 3/8" 1/4" 1/2" Black 500
Qty:
Quick Ship
BSBHPTP-075BK 3/4" 1/2" 1-1/4" Black 500
Qty:
BSBHPTP-125 1-1/4" 3/4" 1-3/4" Black 250
Qty:
Quick Ship

For a lower cost alternative, see our Non-Fray PET

RELATED ITEM
Part # Description Nominal Size Min. Diameter Max. Diameter Color Price / Ft
BSBHPT050-BK Bentley Harris Expando PT 1/2" 1/4" 3/4" Black
Qty:
Quick Ship

Bentley-Harris® Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-weave construction of Expando products enables each size to expand to fit several application shapes and sizes. This open-weave construction also makes them highly flexible and resistant to trapping water, heat and humidity.

  • Rated to 125ºC
  • Low temperature flexibility to -75ºC
  • UL Recognized Component
  • CSA File #LR52852
  • Eliminates the need for hot-knife cutting
  • Does not trap heat or humidity
  • Rot-free
  • Self-fitting over many shapes and sizes
  • Self-extinguishing when used to encase typical non-flammable wires or cables
  • Cost effective
  • Fray resistant

The patented Bentley-Harris Plus treatment makes end termination neater and easier. The Plus treatment creates a webbing between the filaments of the sleeving to reduce end fray during installation and through the life of the product. Because of the fray-resistant properties of Expando® PT Plus, it can be cut with ordinary scissors, which reduces assembly time and eliminates the need for proper ventilation equipment required for hot-knife cutting.

Expando PT Plus protective oversleeve has many applications in the aeronautical, marine, electronic and general manufacturing industries. The ability of Expando PT Plus to retain flexibility at low temperatures makes it ideal for exposed applications in weather stations, navigation beacons, radar antennas, airborne and space systems.

*All Bentley Harris products are RoHS compliant and have an indefinite shelf life. ISO 14001 & TS16949 certified.
View RoHS Certificate - PDF

Performance Data - Expando® PT Plus

Property Test Method Value
Filament Diameter   .010"
Melt Temperature ASTM D-2117 250ºC
Low Temperature MIL-DTL-23053E -75ºC
Smoke Density ASTM E-1354 Dmc = 2.05
Copper Corrosivity MIL-I-23053 No Effect



View Measurement Conversion Chart
