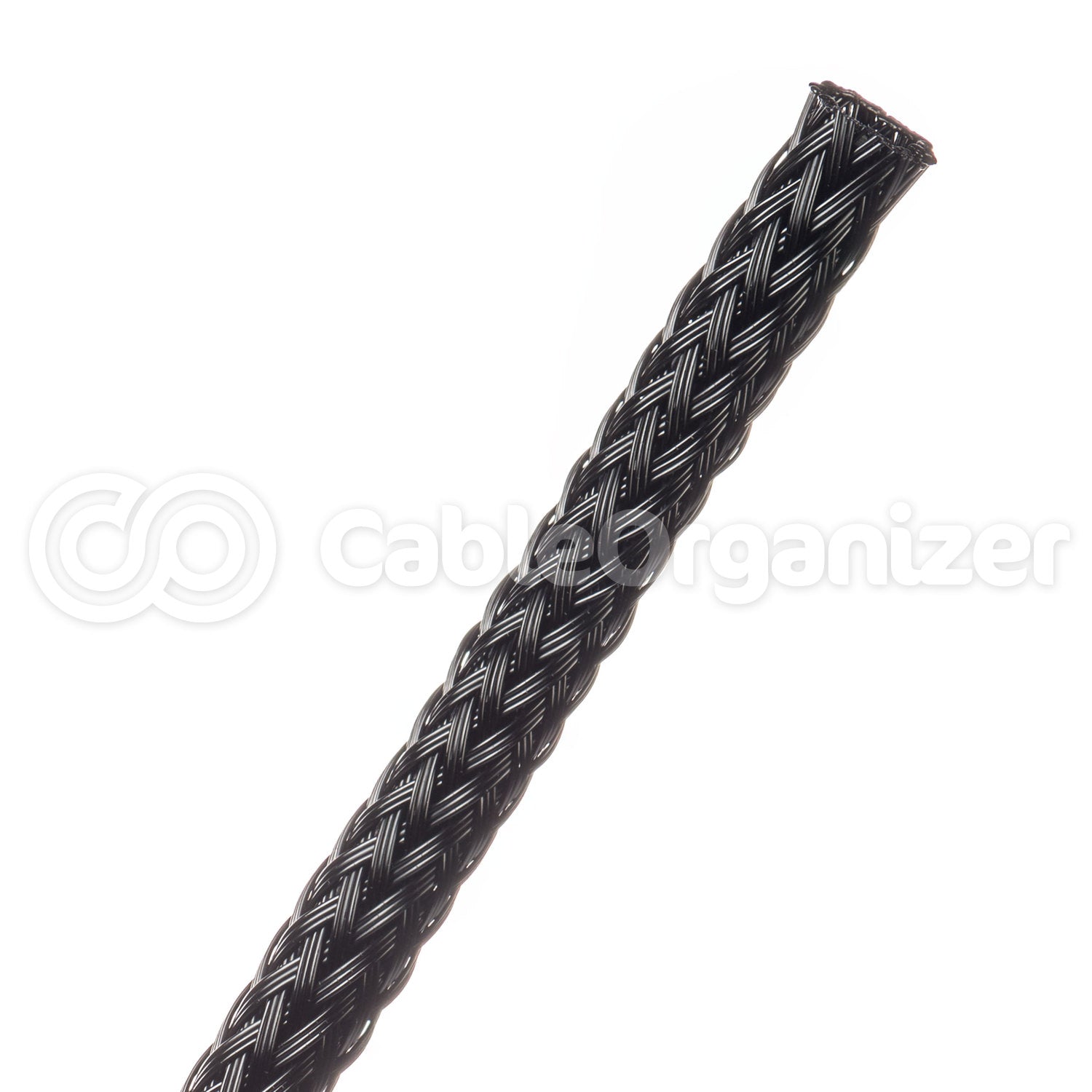

Flexo® Super Duty Expandable Braided Sleeving
Extreme Abrasion Resistance
What's special about this expandable braided sleeving?
- Heavy duty construction provides full coverage protection for cables, hoses and wires.
- Superior abrasion and cut resistant properties are ideal for both indoor or outdoor applications.
- Cuts to size easily with any hot knife, which leaves ends neatly finished and ready for installation.
- Click for More Features
-
Flexo® Super Duty (SD) Expandable Braided Sleeving is designed to provide a superior level of protection for cables/hoses used in unfavorable industrial or commercial applications. Hydraulic hoses and electrical cables found on trucks, automotive, robotics and other machinery are highly acceptable to abrasion damage. Using Flexo® SD, you can extend the life of cables/hoses by deflecting and resisting flying debris, abrasion, UV rays, moisture and harmful chemicals without sacrificing flexibility or strength in the process.
Splice Free Spooling:
Some splices are normal during the braiding process. Usually, not more than one or two splices will be on any given spool. Ordering splice-free spools guarantees the maximum continuous yield on your spools. This option is suggested when ordering large lengths of sleeving or for important and precise projects. This treatment is most applicable in lengths that exceed 100 feet. In general, shorter lengths will be splice free as they come off the spools.
Rounding:
Flexo® Rounded is a premium process where Flexo® products are rounded for improved aesthetics, spring, and installation time. Rounding braided sleeving can retain its form for the lifetime of the product. It is commonly used in both retail and medical applications. Rounding services require a minimum spool length of 25 ft. NOTICE: Longer lengths of product may lose some of its shape when applied to or shipped on a spool. Adding the rounded option may increase the processing time of your order by up to 48 hours. Rounding services also require a minimum length of 25 ft. Not Available in all diameters.
| MINI SPOOLS | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Nominal Size | Min. Expansion | Max. Expansion | Length | Spool Weight | Color | Price |
| TX-MSDN025-BK | 1/4" | 1/4" | 1/2" | 100' | 1.05 lbs | Black | Manufacturer Direct
|
| TX-MSDN050-BK | 1/2" | 1/2" | 1" | 100' | 1.85 lbs | Black | Manufacturer Direct
|
| TX-MSDN075-BK | 3/4" | 3/4" | 1-1/4" | 50' | 1.15 lbs | Black | Manufacturer Direct
|
| TX-MSDN100-BK | 1" | 1" | 1-1/2" | 50' | 1.38 lbs | Black | Manufacturer Direct
|
| TX-MSDN125-BK | 1-1/4" | 1-1/4" | 2" | 50' | 1.5 lbs | Black | Manufacturer Direct
|
| TX-MSDN175-BK | 1-3/4" | 1-3/4" | 2-3/4" | 25' | 1 lb | Black | Quick Ship
|
| TX-MSDN225-BK | 2-1/4" | 2-1/4" | 3" | 25' | 1.33 lbs | Black | Manufacturer Direct
|
| BULK SPOOLS | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Nominal Size | Min. Expansion | Max. Expansion | Length | Spool Weight | Color | Price |
| TX-BSDN025-BK | 1/4" | 1/4" | 1/2" | 500' | 5.25 lbs | Black | Manufacturer Direct
|
| TX-BSDN050-BK | 1/2" | 1/2" | 1" | 250' | 4.63 lbs | Black | Manufacturer Direct
|
| TX-BSDN075-BK | 3/4" | 3/4" | 1-1/4" | 250' | 5.75 lbs | Black | Manufacturer Direct
|
| TX-BSDN100-BK | 1" | 1" | 1-1/2" | 250' | 6.9 lbs | Black | Manufacturer Direct
|
| TX-BSDN125-BK | 1-1/4" | 1-1/4" | 2" | 250' | 7.5 lbs | Black | Quick Ship
|
| TX-BSDN175-BK | 1-3/4" | 1-3/4" | 2-3/4" | 100' | 4.0 lbs | Black | Manufacturer Direct
|
| TX-BSDN225-BK | 2-1/4" | 2-1/4" | 3" | 100' | 5.3 lbs | Black | Manufacturer Direct
|
| Abrasion Properties | |
|---|---|
| Abrasion Resistance | Extremely High |
| Abrasion Test Machine | Taber 5150 |
| Abrasion Test Wheel | Calibrase H-18 |
| Abrasion Test Load | 500g |
| Room Temperature | 72° F |
| Humidity | 48% |
| Material Destroyed | 2,500 Test Cycles |
| Pre-Test Weight | 6,878.6 mg |
| Post-Test Weight | 6,572.2 mg |
| Test End Loss of Mass Point of Destruction | 351.4 mg |
| Chemical Resistance | |
| Aromatic Solvents | 1 |
| Aliphatic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Salts | 1 |
| Strong Bases | 2 |
| Salt Water O-S-1926 | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lube Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 5 |
| Strong Oxidants | 5 |
| Esters/Keystones | 1 |
| UV Light | 2 |
| Petroleum | 3 |
| Fungus (ASTM-D-2863) | 2 |
| Outgassing | High |
| Oxygen Index (ASTM-D-2863) | 22 |
| 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Physical Properties | |
| Monofilament Diameter (ASTM-D-204) | 0.02 |
| Recommended Cutting | Hot Knife |
| Stock Colors | 1 |
| Tensile Strength PSI (ASTM-D-2256) | 75,000 |
| Tenacity (GM/Denier) (ASTM-D-4157) | 5 |
| Specific Gravity (ASTM-D-792) | 1.14 |
| Typical Elongation (ASTM-D-2256) | Break: 20 3g/Denier: 7 |
| Melt Point (ASTM-D-2117) | 493° F (256° C) |
| Maximum Continuous (MIL-I-23053) | 302° F (150° C) |
| Minimum Continuous | -49° F (-45° C) |
