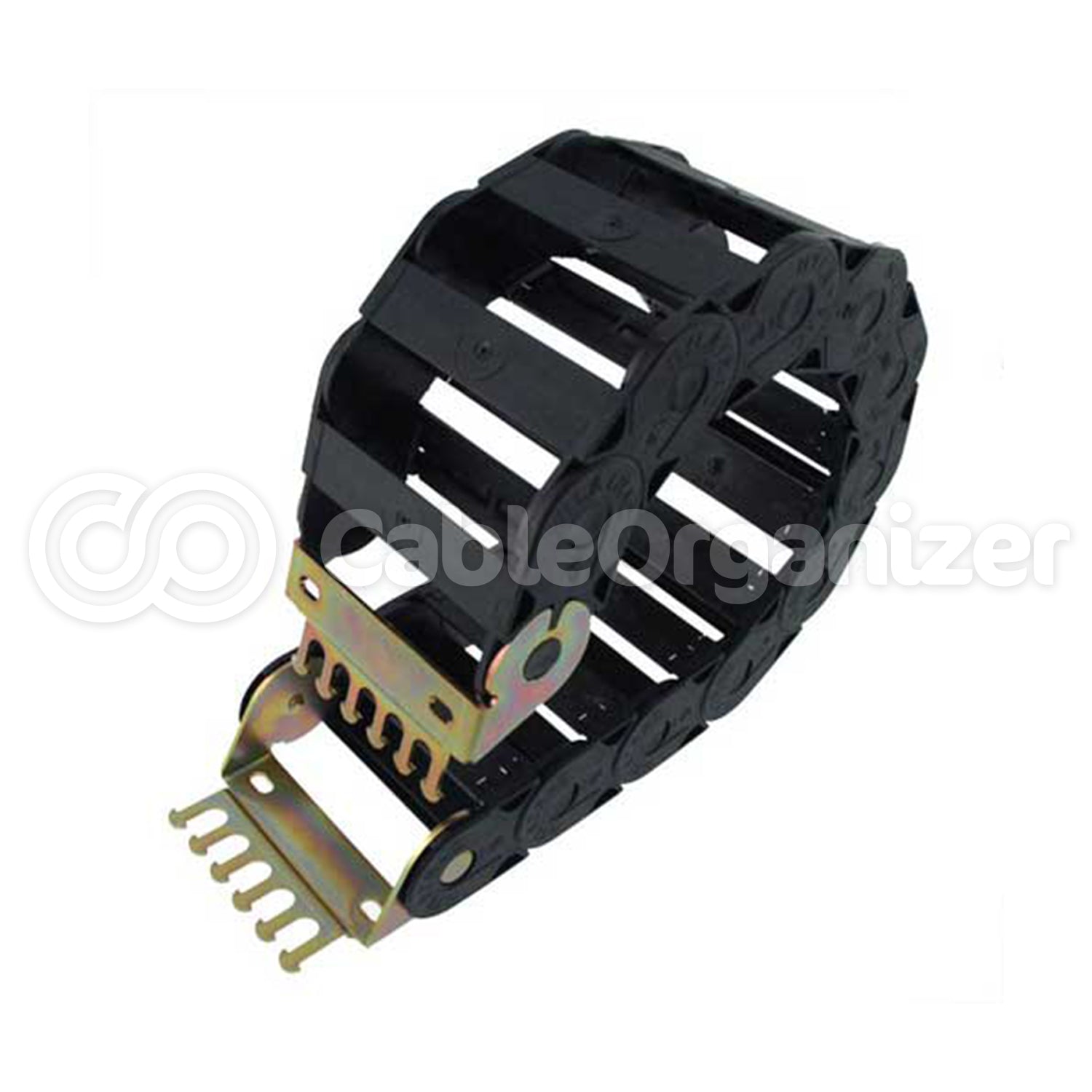

Nylatrac™ NP Series Cable and Hose Carriers

Carriers
NP200-7-INNER-FOOTAGE
Qty:


10ft Kits
NP200-7-INNER-10FTKIT
Qty:


Accessories
NP200-BRACKET
Qty:

What's special about these cable carriers?

  • LINK HEIGHT 2.00 inches (50.80 mm)
  • Non-metallic, light weight, high strength link type design.
  • Non-conductive, heavy duty fiber reinforced nylon.
  • Suitable for high-speed and long travel applications.
  • Integrated hinge bars open for easy access to cables or hoses.
  • Limited bend radius protects cables for optimal performance.

An excellent cable track for high-speed and long travel applications. Integrated hinge bars open for easy access to cables or hoses. Double lockout design for increased strength.

Interior Width - 2"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP200-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 2.50" 7" .72
Qty:
NP200-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 2.50" 7" .72
Qty:
NP200-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 2.95" 7.90" .72
Qty:
NP200-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 2.95" 7.90" .72
Qty:
NP200-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 3.94" 9.88" .72
Qty:
NP200-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 3.94" 9.88" .72
Qty:
NP200-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 4.92" 11.84" .72
Qty:
NP200-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 4.92" 11.84" .72
Qty:
NP200-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 5.91" 13.82" .72
Qty:
NP200-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 5.91" 13.82" .72
Qty:
NP200-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2" Interior Width, 1 ft. Length 7.87" 18" .72
Qty:
NP200-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2" Interior Width, 1 ft. Length 7.87" 18" .72
Qty:
Interior Width - 2.5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP250-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.50" 7" .74
Qty:
NP250-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.50" 7" .74
Qty:
NP250-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.95" 7.90" .74
Qty:
NP250-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 2.95" 7.90" .74
Qty:
NP250-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 3.94" 9.88" .74
Qty:
NP250-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 3.94" 9.88" .74
Qty:
NP250-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 4.92" 11.84" .74
Qty:
NP250-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 4.92" 11.84" .74
Qty:
NP250-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 5.91" 13.82" .74
Qty:
NP250-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 5.91" 13.82" .74
Qty:
NP250-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 2.5" Interior Width, 1 ft. Length 7.87" 18" .74
Qty:
NP250-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 2.5" Interior Width, 1 ft. Length 7.87" 18" .74
Qty:
Interior Width - 3"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP300-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 2.50" 7" .78
Qty:
NP300-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 2.50" 7" .78
Qty:
NP300-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 2.95" 7.90" .78
Qty:
NP300-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 2.95" 7.90" .78
Qty:
NP300-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 3.94" 9.88" .78
Qty:
NP300-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 3.94" 9.88" .78
Qty:
NP300-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 4.92" 11.84" .78
Qty:
NP300-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 4.92" 11.84" .78
Qty:
NP300-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 5.91" 13.82" .78
Qty:
NP300-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 5.91" 13.82" .78
Qty:
NP300-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 3" Interior Width, 1 ft. Length 7.87" 18" .78
Qty:
NP300-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 3" Interior Width, 1 ft. Length 7.87" 18" .78
Qty:
Interior Width - 4"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP400-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 2.50" 7" .85
Qty:
NP400-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 2.50" 7" .85
Qty:
NP400-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 2.95" 7.90" .85
Qty:
NP400-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 2.95" 7.90" .85
Qty:
NP400-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 3.94" 9.88" .85
Qty:
NP400-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 3.94" 9.88" .85
Qty:
NP400-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 4.92" 11.84" .85
Qty:
NP400-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 4.92" 11.84" .85
Qty:
NP400-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 5.91" 13.82" .85
Qty:
NP400-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 5.91" 13.82" .85
Qty:
NP400-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 4" Interior Width, 1 ft. Length 7.87" 18" .85
Qty:
NP400-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 4" Interior Width, 1 ft. Length 7.87" 18" .85
Qty:
Interior Width - 5"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP500-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 2.50" 7" .95
Qty:
NP500-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 2.50" 7" .95
Qty:
NP500-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 2.95" 7.90" .95
Qty:
NP500-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 2.95" 7.90" .95
Qty:
NP500-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 3.94" 9.88" .95
Qty:
NP500-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 3.94" 9.88" .95
Qty:
NP500-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 4.92" 11.84" .95
Qty:
NP500-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 4.92" 11.84" .95
Qty:
NP500-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 5.91" 13.82" .95
Qty:
NP500-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 5.91" 13.82" .95
Qty:
NP500-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 5" Interior Width, 1 ft. Length 7.87" 18" .95
Qty:
NP500-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 5" Interior Width, 1 ft. Length 7.87" 18" .95
Qty:
Interior Width - 6"
Part # Description Bend Radius "R" Curve Height "H" Weight/Foot (lb) Price
NP600-7-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 2.50" 7" 1.03
Qty:
NP600-7-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 2.50" 7" 1.03
Qty:
NP600-8-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 2.95" 7.90" 1.03
Qty:
NP600-8-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 2.95" 7.90" 1.03
Qty:
NP600-10-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 3.94" 9.88" 1.03
Qty:
NP600-10-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 3.94" 9.88" 1.03
Qty:
NP600-12-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 4.92" 11.84" 1.03
Qty:
NP600-12-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 4.92" 11.84" 1.03
Qty:
NP600-14-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 5.91" 13.82" 1.03
Qty:
NP600-14-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 5.91" 13.82" 1.03
Qty:
NP600-18-INNER-FOOTAGE Nylatrac NP Series - Inner Hinge Bar, 6" Interior Width, 1 ft. Length 7.87" 18" 1.03
Qty:
NP600-18-OUTER-FOOTAGE Nylatrac NP Series - Outer Hinge Bar, 6" Interior Width, 1 ft. Length 7.87" 18" 1.03
Qty:

mounting hole dimensions

Brackets
Part # Description Hole to Hole Dimension Slotted Hole Mounting Dimension Weight Price
NP200-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 1.19" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
NP250-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 1.69" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
NP300-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 2.19" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
NP400-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 3.30" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
NP500-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 4.19" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
NP600-BRACKET Nylatrac NP Series Cable and Hose Carrier Brackets, 1 Pair 5.19" 0.28" x 0.50" (7x13) Slot Type 1
Qty:
Nylatrac™ NP Series Snap-In Separator
Part # Description Shipping Weight Price
NP0017 Separator for NP Series Carrier 0.3 lb
Qty:
Manufacturer Direct
