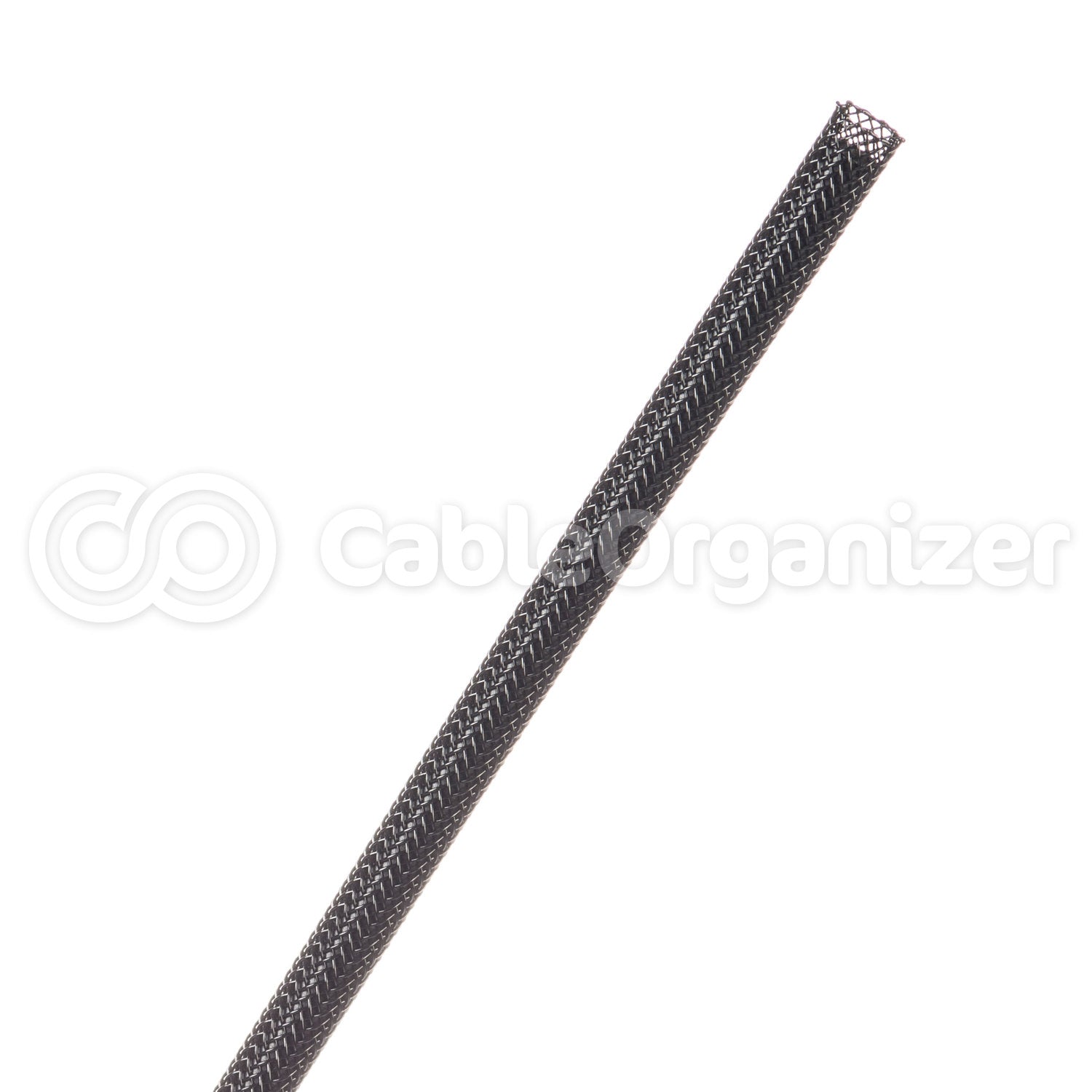

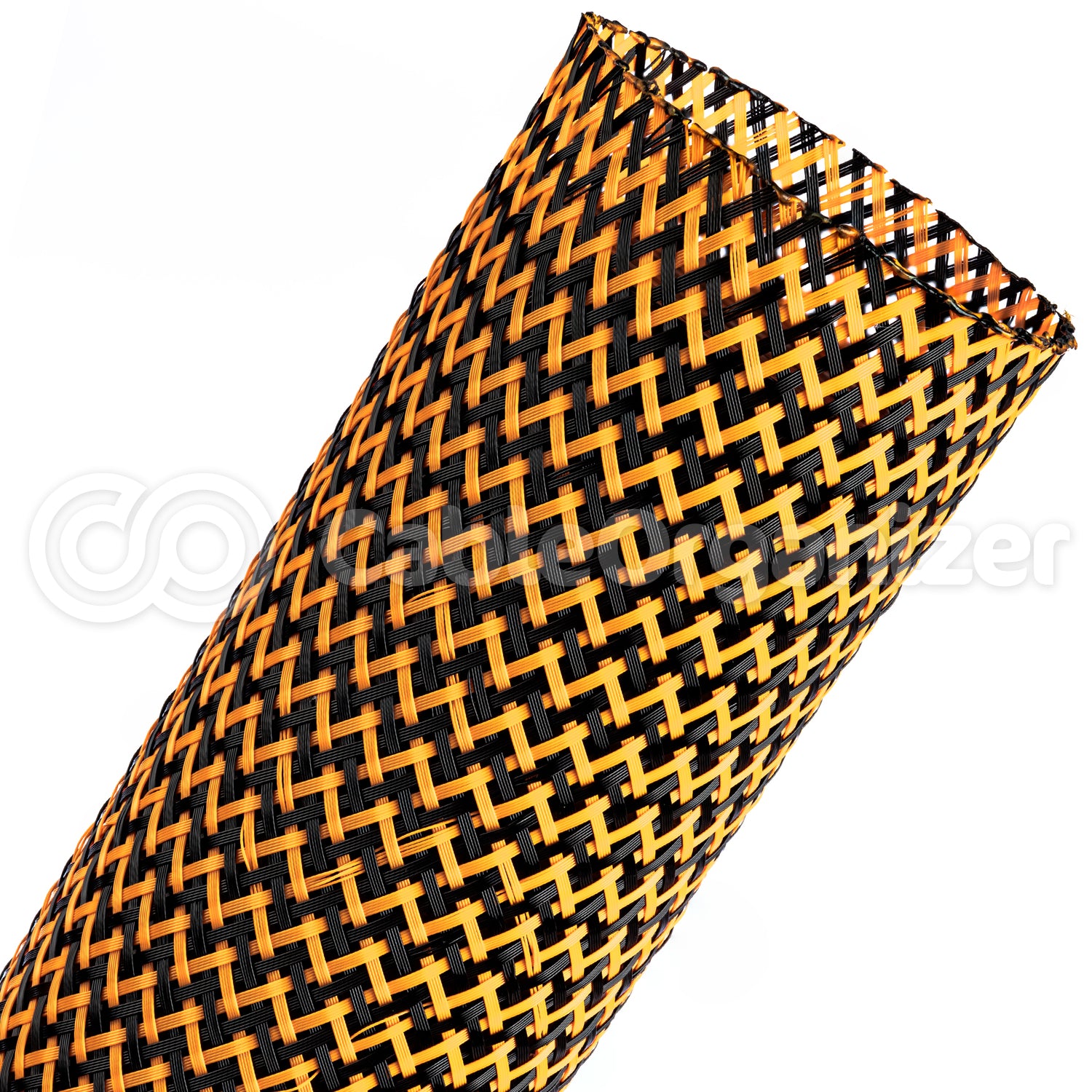

Techflex® Flexo® Tight Weave Braided Sleeving

Extra Coverage and Protection from Tightly Woven Material


PTT0.13-10FT
Qty:

What's special about this Tightly Woven Material

  • Provides Profesional Look on Products
  • Resists Common Chemicals, Solvents, and UV Damage
  • Economical and Easy to Install
  • Cut and Abrasion Resistant
  • Tighter Weave for More Complete Coverage!
  • Click for More Features
  • RoHS Compliant

Techflex® Flexo Tight Weave is designed for use in applications where a balance between economy and optimum coverage and abrasion resistance is required. The tightly braided construction increases the coverage, wear factor and improves security in any type of harness or cable bundle.

Splice Free Spooling:
Some splices are normal during the braiding process. Usually, not more than one or two splices will be on any given spool. Ordering splice-free spools guarantees the maximum continuous yield on your spools. This option is suggested when ordering large lengths of sleeving or for important and precise projects. This treatment is most applicable in lengths that exceed 100 feet. In general, shorter lengths will be splice free as they come off the spools.

Heat Treated:
Flexo® Rounded is a premium process where Flexo® products are rounded for improved aesthetics, spring, and installation time. Rounding braided sleeving can retain its form for the lifetime of the product. It is commonly used in both retail and medical applications. NOTICE: Longer lengths of product may lose some of its shape when applied to or shipped on a spool. Adding the rounded option may increase the processing time of your order by up to 48 hours. Rounding services also require a minimum length of 25 ft. Not Available in all diameters.

1/8" Diameter
Color Part # Length Price
PTT0.13-10FT 10'
Qty:
PTT0.13-25FT 25'
Qty:
PTT0.13-225FT 225'
Qty:
PTT0.13-1000FT 1000'
Qty:
PTT0.13-4000FT 4000'
Qty:
1/4" Diameter
Color Part # Length Price
PTT0.25-10FT 10'
Qty:
PTT0.25-25FT 25'
Qty:
PTT0.25-200FT 200'
Qty:
PTT0.25-1000FT 1000'
Qty:
PTT0.25-3000FT 3000'
Qty:
5/16" Diameter
Color Part # Length Price
PTT0.31-10FT 10'
Qty:
PTT0.31-25FT 25'
Qty:
PTT0.31-200FT 200'
Qty:
PTT0.31-1000FT 1000'
Qty:
PTT0.31-2000FT 2000'
Qty:
1/2" Diameter
Color Part # Length Price
PTT0.50-10FT 10'
Qty:
PTT0.50-25FT 25'
Qty:
PTT0.50-100FT 100'
Qty:
PTT0.50-500FT 500'
Qty:
PTT0.50-2000FT 2000'
Qty:
3/4" Diameter
Color Part # Length Price
PTT0.75-10FT 10'
Qty:
PTT0.75-25FT 25'
Qty:
PTT0.75-100FT 100'
Qty:
PTT0.75-250FT 250'
Qty:
PTT0.75-1500FT 1500'
Qty:
1" Diameter
Color Part # Length Price
PTT1.00-10FT 10'
Qty:
PTT1.00-25FT 25'
Qty:
PTT1.00-100FT 100'
Qty:
PTT1.00-250FT 250'
Qty:
PTT1.00-1000FT 1000'
Qty:
1 1/4" Diameter
Color Part # Length Price
PTT1.25-10FT 10'
Qty:
PTT1.25-25FT 25'
Qty:
PTT1.25-50FT 50'
Qty:
PTT1.25-250FT 250'
Qty:
PTT1.25-750FT 750'
Qty:
1 1/2" Diameter
Color Part # Length Price
PTT1.50-10FT 10'
Qty:
PTT1.50-25FT 25'
Qty:
PTT1.50-40FT 40'
Qty:
PTT1.50-200FT 200'
Qty:
PTT1.50-500FT 500'
Qty:
1 3/4" Diameter
Color Part # Length Price
PTT1.75-10FT 10'
Qty:
PTT1.75-25FT 25'
Qty:
PTT1.75-30FT 30'
Qty:
PTT1.75-200FT 200'
Qty:
PTT1.75-500FT 500'
Qty:
2" Diameter
Color Part # Length Price
PTT2.00-10FT 10'
Qty:
PTT2.00-25FT 25'
Qty:
PTT2.00-50FT 50'
Qty:
PTT2.00-200FT 200'
Qty:
PTT2.00-400FT 400'
Qty:
2-1/2" Diameter
Color Part # Length Price
PTT2.50-10FT 10'
Qty:
PTT2.50-25FT 25'
Qty:
PTT2.50-50FT 50'
Qty:
PTT2.50-100FT 100'
Qty:
PTT2.50-400FT 400'
Qty:
  1. Expands up to 150%
  2. Braided From 0.10" PET Monofilament Yarns
  3. Halogen Free - RoHS Compliant
  4. FAR 25, FMVSS 302 Approved
  5. UV light resistant
  6. Melt Temp: 482°F/250°C
  7. Operating Temps: -94°F to 257°F (-70°C to 125°C)



  1. Click here to find out How to Terminate the Ends of your Expandable Braided Sleeving
  2. Not sure what size to use? Click here for some basic guidelines for use on common cable
  3. How do we measure braided sleeving? View here



Chemical Resistance Testing Methods
Aromatic Solvents 2 NA
Aliphatic Solvents 1 NA
Chlorinated Solvents 3 NA
Weak Bases 1 NA
Strong Bases 2 NA
Salt Water 1 O-S-1926
Hydraulic Fluid 1 MIL-H-5606
Lube Oil 1 MIL-L-7808
De-lce Fluid 1 MIL-A-8243
Strong Acids 3 NA
Strong Oxidants 2 NA
Esters keytones 1 NA
UV light 1 NA
Petroleum 1 NA
Fungus 1 ASTM G-21*

1 - No Effect
2 - Little Effect
3 - Affected
4 - More Affected
5 - Severely Affected

Strength & Abrasion
Tensile Strength 7.5
Abrasion Resistance High
Typical Elongation Break 15
3g/denier 5
Specific Gravity  1.38
Flammability
Moisture Absorption 0.1 - 0.2
Smoke D-Max 56
Flammability Rating UL94
Outgassing
Outgassing Med
Oxygen Index 21
Specific Gravity g/cc 1.38
Halogen Free True
Temperatures
Continuous Operating Temperatures °C °F
Maximum 125° 257°
Minimum -70° -94°
Melt 250° 482°
UL Recognized Component
CSA
File# LR 66-145
File# E 107 055
