Corner Ducts Raceways
"A++++ Hides all the wires coming from the ceiling perfectly."
Cuts easily with fine-toothed saw
|
What's special about this raceway?
 |
Non metallic wiring management systems such as surface raceways are a functional, affordable, attractive solution for wire enclosure applications in commercial, industrial as well as in residential environments. Our line of corner ducts includes accessories such as pre-applied adhesive backing, fittings, inside and outside corners, and tee reducers so your wire management systems can be 100% customized.
All parts are made of strong, durable, lightweight, UL 94-VO compliant PVC that is also paintable (Latex) to perfectly match walls, ceilings and even baseboards. Custom colors are available upon request. Minimums apply.
- Triangular corner raceway blends into wall/ceiling junctions to provide clean, finished appearance. Can be used as crown molding in home theater applications
- Snap on cover allows for easy and speedy installation
- Long lasting materials
- Parts made from a UL VO-94 compliant flame resistant PVC
- Also available 1150 accessories for Corner Duct
| RACEWAY FILL CAPACITY CHART | |||||||||
| 375RW | 375SR | 1075CD | 500RW | 500SR | 1150CD | 1125RW | 1125SR | 1250CD | |
| Area (Sq. In.) | 0.219 | 0.259 | 0.530 | 0.488 | 0.488 | 1.410 | 0.832 | 0.827 | 2.000 |
Building Wire THHN |
|||||||||
| 14 AWG | 2 | 3 | 6 | 5 | 5 | 15 | 9 | 9 | 22 |
| 12 AWG | 2 | 2 | 4 | 4 | 4 | 11 |
7 | 7 | 16 |
| 10 AWG | 1 | 1 | 2 | 2 | 2 | 6 | 4 | 4 | 9 |
Signal Wire UL Style 1061 300 Volt, 80 C* |
|||||||||
| 18 AWG | 26 | 30 | 62 | 57 | 57 | 165 | 97 | 97 | 234 |
| 20 AWG | 31 | 37 | 75 | 69 | 69 | 200 | 118 | 117 | 283 |
| 22 AWG | 45 | 53 | 108 | 99 | 99 | 287 | 170 | 169 | 408 |
| 14 AWG | 55 | 65 | 133 | 123 | 123 | 355 | 209 | 208 | 503 |
Twisted Pair 24 AUG* |
|||||||||
| 2 Pair | 6 | 7 | 14 | 13 | 13 | 37 | 22 | 22 | 52 |
| 3 Pair | 5 | 6 | 12 | 11 | 11 | 32 | 19 | 19 | 45 |
| 4 Pair, CAT 5 | 2 | 3 | 6 | 5 | 5 | 15 | 9 | 9 | 21 |
| 25 Pair | 0 | 0 | 1 | 1 | 1 | 3 | 2 | 2 | 4 |
Twisted Pair Wire (Shielded)* |
|||||||||
| 4 Pair, 24 AUG | 2 | 2 | 4 | 4 | 4 | 11 | 7 | 7 | 16 |
| 25 Pair, 24 AUG | 0 | 0 | 1 | 1 | 1 | 3 | 2 | 2 | 4 |
| Type 1A, 22 AUG | 1 | 1 | 1 | 1 | 1 | 4 | 2 | 2 | 6 |
COAX Cable (Max)* |
|||||||||
| RG58/U | 3 | 4 | 7 | 7 | 7 | 19 | 11 | 11 | 27 |
| RG59/U RG62/U | 2 | 2 | 5 | 4 | 4 | 12 | 7 | 7 | 17 |
| RG6/U | 2 | 2 | 4 | 3 | 3 | 10 | 6 | 6 | 14 |
Fiber Optic Cable 62.5/125/900, PVC Jacket, OFNR* |
|||||||||
| 2 Strand | 4 | 4 | 9 | 8 | 8 | 23 | 14 | 14 | 33 |
| 4 Strand | 3 | 4 | 8 | 7 | 7 | 21 | 12 | 12 | 30 |
| 6 Strand | 3 | 3 | 6 | 6 | 6 | 16 | 10 | 10 | 23 |
| Series | Part # | Description | Length | Color | Price / Piece |

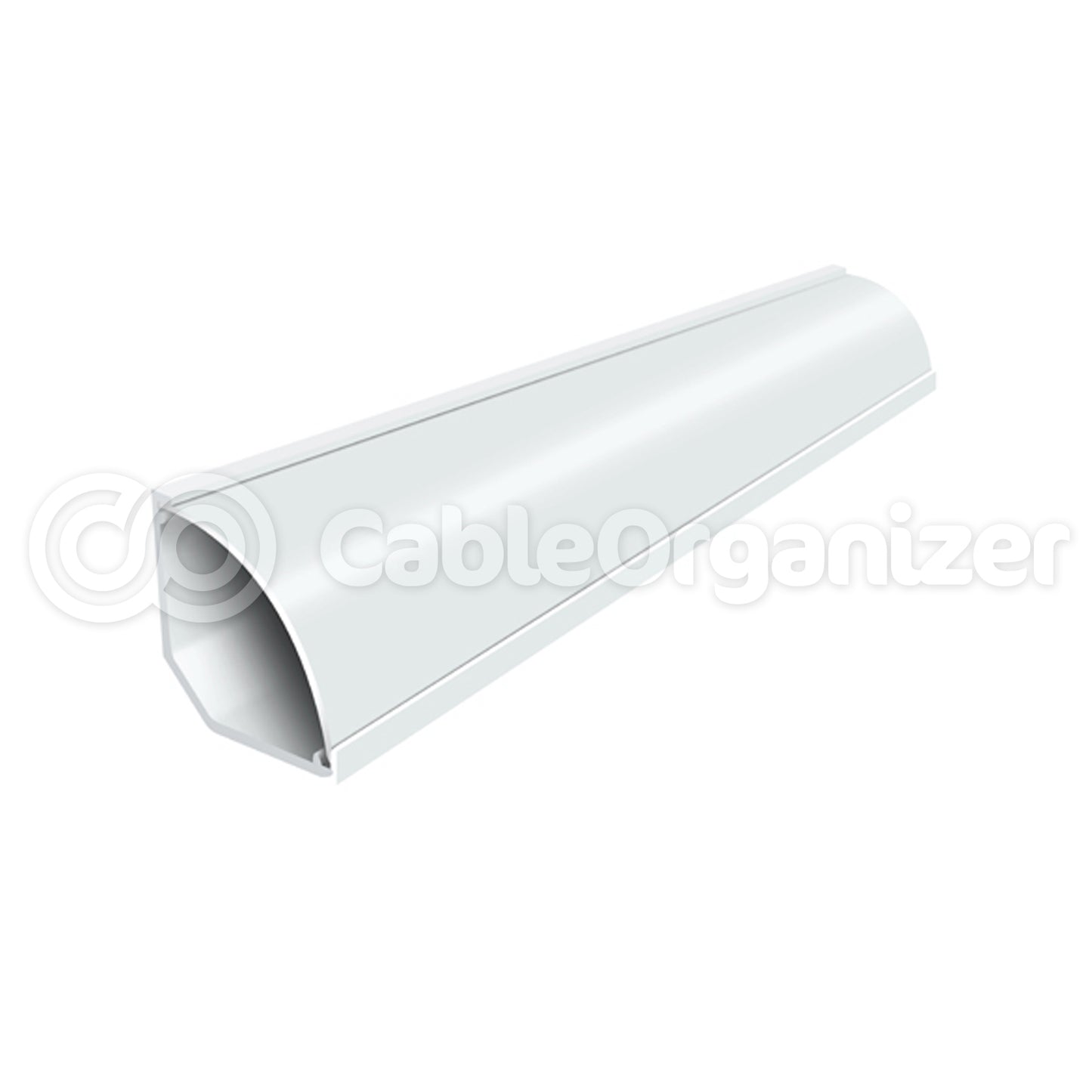

| 1075 | SRCD1075-W5FT | 1.0625" Corner Duct Raceway | 5' | White | $7.49 |
| 1150 | SRCD1150-W5FT | 2.1875" Corner Duct Raceway View 1150 series accessories |
5' | White | $8.75 |
| 1250 | SRCD1250-W5FT | 2.75" Corner Duct Raceway | 5' | White | $11.75 |
Sizing
)
Please refer to diagram for dimension explanation
| MODEL | A | B | C | D | WALL THICKNESS | TAPE WIDTH |
| 1075 | 0.500" | 1.313" | 0.594" | 0.719" | 0.065" | 0.500" |
| 1150 | 0.500" | 1.781" | 0.938" | 1.063" | 0.065" | 0.750" |
| 1250 | 0.500" | 2.156" | 1.250" | 1.469" | 0.070" | 0.750" |
Easy Installation Steps
) |
) |
| Determine cover length & cut Corner Duct to size |
Peel off adhesive tape |
) |
) |
| Attach to wall | Insert cables |
) |
) |
| Slide cover | Installation completed |
