Bentley-Harris ConvoShield™

Bentley Harris, Convoshield, Bentley-Harris



view more images

What's special about ConvoShield™?

    GSA approved
  • Slit lengthwise for easy application over already terminated cables and hoses.
  • Provides thermal protection
  • Composed of a nylon copolymer base substrate and a highly reflective coating
  • Tested to withstand high temperatures up to 500°C (1000°F)
  • Click here for more features
view prices

Cable Organizer is pleased to stock Bentley-Harris Brand ConvoShield™ AL from Federal Mogul. In addition, we stock a vast array of other protective sleeving. More

view similar items

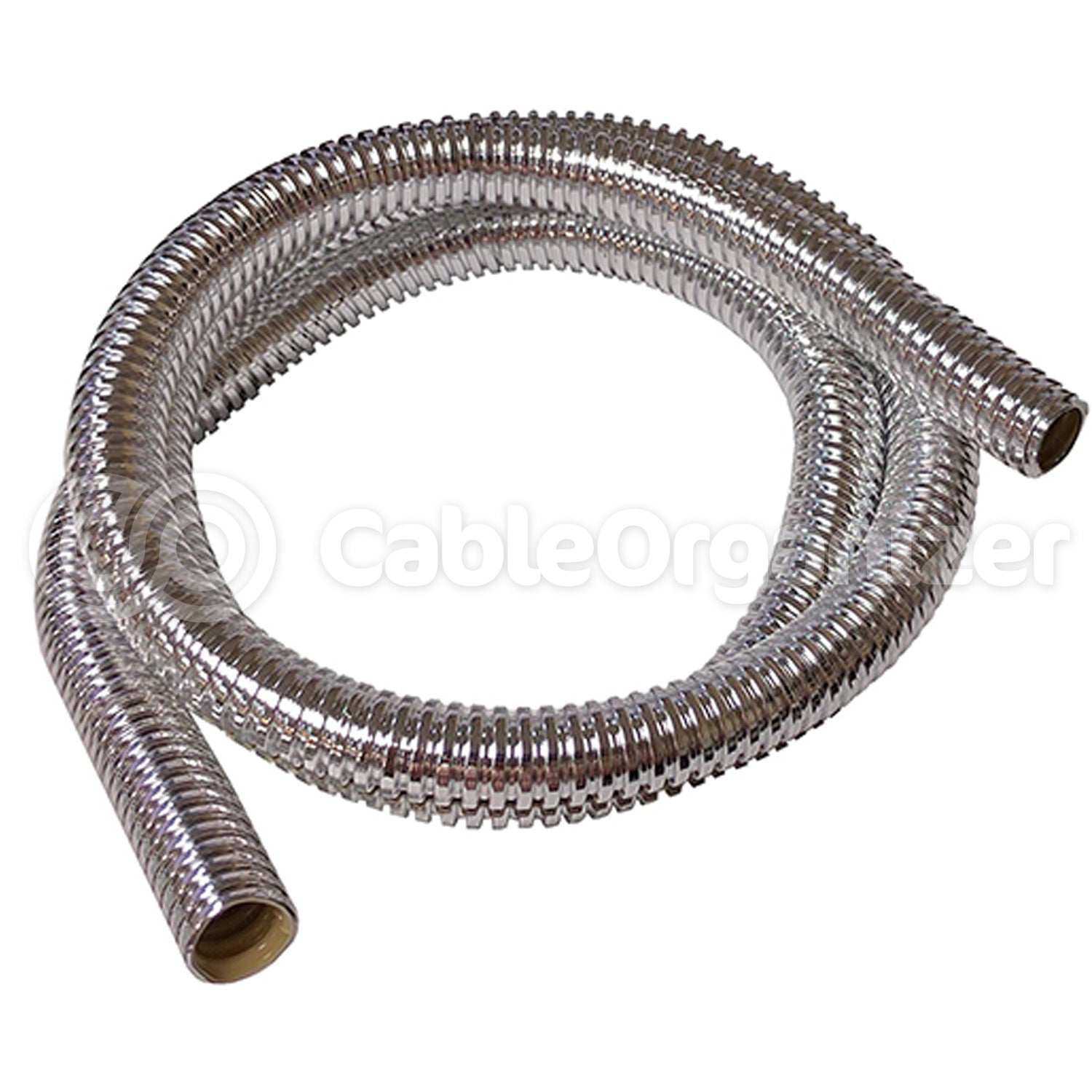

Bentley-Harris ConvoShield™ AL was designed to provide thermal protection for components in radiant heat environments. Bentley Harris sleeving is composed of a nylon copolymer base substrate and a highly reflective coating, this product provides protection for wires, cables, and hoses in applications that have heat source temperatures as high as 500°C (1000°F). Conveniently, Bentley-Harris sleeving is slit lengthwise for easy installation.

The reflective surface of Bentley-Harris ConvoShield™ AL is extremely resistant to several industry fluids and also shows enhanced resistance to heat distortion. Because of its unique blend of thermal and insulative properties, Bentley-Harris ConvoShield™ is ideal for protecting wire harnesses in high temperature, confined environments such as engine compartments. Its sleek, reflective surface also provides an aesthetically pleasing appearance.

Tests have shown Bentley-Harris Convoshield™ AL to withstand 1000°F radiant heat for one hour without distortion when placed 1 inch away from a heat source.

Due to the metal coating applied, Bentley-Harris ConvoShield™ AL has been known to provide some degree of static dissipation and RFI shielding.

Performance Data

Test Property Result
Heat Aging Aged at 170°C for 168 hours No damage to product
Cold Bend Test Low temperature flexibility -40°C
BH100-003 (ref MS-NA1-7) Fluid resistance (30 min soak)
Brakes Fluid, Gasoline, Diesel Fuel(60 min), Antifreeze Solution, Motor Oil, Transmission Fluid, Power Steering Fluid, Distilled Water, 3% Salt Solution, Washer Fluid
No sign of product degradation or delamination of coating
Heat Distortion Oven aging at 180°C for 3 hours Product not flat or distorted
FMVSS 302 Automotive Flammability Test Pass
Applied voltage rate of 500 V/s in dielectric chamber Electrical Conductivity Classed insulative in 12V applications
Exterior Surface Highly Reflective Aluminum -
Substrate Base Nylon Copolymer -
Substrate Surface Thermoplastic Molded Tubing -


Note: The information given herein is believed to be reliable. CableOrganizer.com and/or Bentley-Harris make no warranties as to their accuracy or completeness and disclaim any liability in connection with its use. CableOrganizer.com and the manufacturer's only obligations are those in the standard terms of sales of this product and will not be liable for any consequential or other damages and losses arising out of the use or misuse of this product. Users should make their own evaluation to determine the suitability of the product for specific applications.


View Measurement Conversion Chart

PART # ID SIZE LENGTH COLOR PRICE
WL025-41CHR 1/4" 39" Chrome $8.95add to cart
WL0375-41CHR 3/8" 39" Chrome $9.95add to cart
WL050-41CHR 1/2" 39" Chrome $10.95add to cart
WL0625-41CHR 5/8" 39" Chrome $11.95add to cart
WL075-41CHR 3/4" 39" Chrome $12.95add to cart

How do we measure wireloom? View here

HOW-TO CORNER -
How to Terminate Braided Sleeving
How to Determine Which Product Diameter You Need
How to Install Car Stereo Speakers


CATALOG - PDF

For your convenience, we have made our brochure and catalogs available online in PDF format. Downloading the PDF catalog will take you no more than 5 minutes, so you won’t have to wait days for the print catalog. PDF catalogs include links to our products: just click on the hyperlinked product headings, and you’ll be directed right to our website.
Office PDF PDF Catalog 2 MB
Automotive PDF PDF Catalog 2.6 MB
Datacom/Telecom PDF PDF Catalog 5.7 MB

bentley harris sleeving, chrome wire loom, engine wire loom

Nissan 300ZX TT engine bay with Chrome ConvoShield.
Photo provided by V. Pykett



wire sleeve, Bentley Harris Convoshield, high temperature sleeve
wire sleeve, Bentley Harris Convoshield, high temperature sleeve


1992 Lexus with ConvoShield. Photo provided by Mark R Annison



ConvoShield Convoluted Tubing used in Lexus car show

Lexus Show. Photo provided by Pure Passion Racing Limited UK



Nissan with Convoshield
